SAC-8P-100,0-PUR/M12FS SH VA

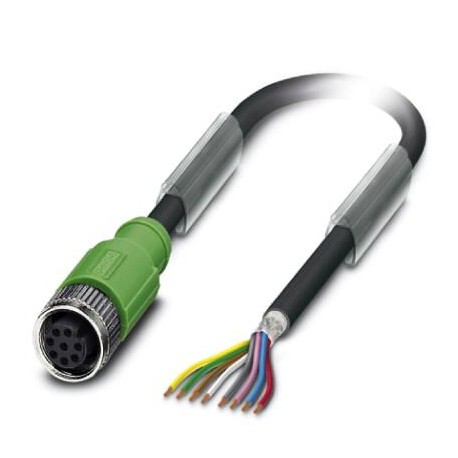

SAC-8P-100,0-PUR/M12FS SH VA 1404965 PHOENIX CONTACT Sensor/actuator cable, 8-pos., PUR, halogen free, RAL 7..
$0.00USD
3887 kwenye hisa
Vipimo Muhimu
GTIN:4046356730051
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1404965
(Michoro):
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356730051 |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1404965 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | IP69K |
| UNSPSC 11 (ETIM) | 31251501 |
| Nchi ya asili | PL (Poland) |
| ETIM 3.0 (eCl@ss) | EC001855 |
| ETIM 4.0 (eCl@ss) | EC001855 |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 6.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001855 |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | |
| UNSPSC 13.2 (ETIM) | 31251501 |
| UNSPSC 19.0 (ETIM) | 31251501 |
| UNSPSC 20.0 (ETIM) | 31251501 |
| UNSPSC 21.0 (ETIM) | 31251501 |
| UNSPSC 6.01 (ETIM) | 31251501 |
| UNSPSC 12.01 (ETIM) | 31251501 |
| Nambari ya ushuru maalum | 85444290 |
| UNSPSC 7.0901 (ETIM) | 31251501 |
| (Hali ya mazingira) | 30 V DC |
| Kiasi cha chini cha oda | 5 pc |
| Nyenzo za mawasiliano (Jumla) | CuZn |
| Length of cable (Drawings) | 100 m |
| Nyenzo, knurls (Jumla) | Stainless steel |
| Nyenzo ya kuziba (Jumla) | NBR |
| Usimbaji (Hali za mazingira) | A - standard |
| (Viwango na Kanuni) | -25 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 4.0 (Uainishaji) | 27060300 |
| eCl@ss 4.1 (Uainishaji) | 27060300 |
| eCl@ss 5.0 (Uainishaji) | 27061800 |
| eCl@ss 5.1 (Uainishaji) | 27061800 |
| eCl@ss 6.0 (Uainishaji) | 27279200 |
| eCl@ss 7.0 (Uainishaji) | 27279218 |
| eCl@ss 8.0 (Uainishaji) | 27279218 |
| eCl@ss 9.0 (Uainishaji) | 27060311 |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Kiwango cha ulinzi (Vipimo) | IP65 |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | TPU GF |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 30 V AC |
| Onyesho la hali (Hali ya mazingira) | No |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PUR halogen-free black |
| Rangi za waya (Viwango na Kanuni) | Brown, white, green, yellow, gray, pink, blue, red |
| Kuongeza Kasi (Viwango na Kanuni) | 10 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 53 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Haina Halojeni (Viwango na Kanuni) | in accordance with DIN VDE 0472 part 815 |
| Idadi ya nafasi (Hali ya mazingira) | 8 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20549 / 10493 (80°C/300 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | 8 wires around filler to the core |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Upinzani wa insulation (Hali ya mazingira) | ≥ 100 MΩ |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 24 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 2 A |
| Njia ya kupita (Viwango na Kanuni) | 10 m |
| Kiwango cha kupita (Viwango na Kanuni) | 3 m/s |
| Upinzani wa moto (Viwango na Kanuni) | in acc. with UL FT-2 |
| Upinzani mwingine (Viwango na Kanuni) | hydrolysis and microbe resistant |
| Kifupisho cha kebo (Viwango na Kanuni) | LiF9YC11Y |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Mali maalum (Viwango na Kanuni) | Flexible cable conduit capable |
| Volti ya majaribio, kebo (Viwango na Kanuni) | ≥ 3000 V AC (Spark test) |
| Upinzani wa kondakta (Viwango na Kanuni) | ≤ 78 Ω/km (at 20 °C) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | HB |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | ≥ 100 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | HB |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 1 GΩ*km (at 20 °C) |
| Unene, insulation (Viwango na Kanuni) | approx. 0.2 mm |
| Ala ya nje, rangi (Viwango na Kanuni) | black-gray RAL 7021 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 300 V AC |
| Unene wa ala ya nje (Viwango na Kanuni) | approx. 0.5 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 8x 0.25 mm² (Signal line) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 2000000 |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | ≥ 2000 V AC (for 60 s) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | PUR |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 5.9 mm ±0.2 mm |
| Stripping length of the free conductor end (Drawings) | 50 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PP |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 32x 0.10 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.17 mm ±0.02 mm |
| Dimensional drawingM12 x 1 socket, straight, shielded (Drawings) | |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 10 x D |
| Kiwango cha chini cha radius ya kupinda, matumizi ya mnyororo wa kuburuta (Viwango na Kanuni) | 10 x D |
| Schematic diagramPin assignment M12 socket, 8-pos., A-coded, view female side (Drawings) |
Maelezo ya Bidhaa
Sensor/actuator cable, 8 poles, halogen-free PUR, greyish black RAL 7021, shielded, free cable end, M12 straight connection socket, A-coded, cable length: 100 m, stainless steel knurling
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingM12 x 1 socket, straight, shielded
