SAC-5P-MS/10,0-28R SCO RAIL

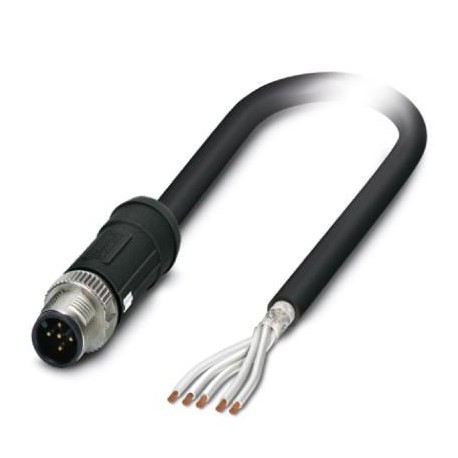

SAC-5P-MS/10,0-28R SCO RAIL 1407327 PHOENIX CONTACT Sensor/actuator cable
$0.00USD
4001 kwenye hisa
Vipimo Muhimu
GTIN:4046356774437
Dokezo:Made to Order (non-returnable)
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1407327
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356774437 |
| Dokezo | Made to Order (non-returnable) |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1407327 |
| Ukurasa wa katalogi | Page 132 (C-4-2013) |
| Kitengo cha kufungasha | 1 pc |
| Nchi ya asili | PL (Poland) |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | Shock, vibration EN 50155 |
| Nyenzo za mawasiliano (Jumla) | CuSn |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Usimbaji (Hali za mazingira) | A - standard |
| Torque (Hali ya mazingira) | 0.4 Nm (M12 connector) |
| (Viwango na Kanuni) | -25 °C ... 90 °C (cable, flexible installation) |
| Nyenzo ya mwili wa mshiko (Jumla) | PA 6.6 |
| Uteuzi wa kawaida (Nyenzo) | Shock, vibration |
| Viwango/kanuni (Jumla) | PA 6.6: Fire protection in rail vehicles - requirement sets R22, R23, and R24 acc. to DIN EN 45545-2 (Risk level HL1 - HL3) |
| Viwango/kanuni (Nyenzo) | EN 50155 |
| Kiwango cha ulinzi (Vipimo) | IP65 |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PA 6.6 |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 48 V AC |
| Onyesho la hali (Hali ya mazingira) | No |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 780.000 g |
| Urefu wa kebo (Data Muhimu ya Biashara) | 10 m |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | Shielded black RADOX® |
| Eneo la mpini wa rangi (Hali ya mazingira) | black |
| Rangi za waya (Viwango na Kanuni) | White 1, white 2, white 3, white 4, white 5 |
| Uzito wa kebo (Viwango na Kanuni) | 70 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Haina Halojeni (Viwango na Kanuni) | According to EN 50267-2-1 |
| Idadi ya nafasi (Hali ya mazingira) | 5 |
| Sumu ya moshi (Viwango na Kanuni) | BS 6853 B.1 |
| Mzunguko wa jumla (Viwango na Kanuni) | 5 cores, twisted |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Upinzani wa insulation (Hali ya mazingira) | ≥ 100 MΩ |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-101 |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 20 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 85 °C (Plug / socket) |
| Upinzani wa moto (Viwango na Kanuni) | EN 60332-1-2 |
| Upinzani mwingine (Viwango na Kanuni) | Resistance to fuels according to IRM 903, 168 h at 70 °C |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | according to IRM 902, 72 h at 100 °C |
| Nyenzo ya kondakta (Viwango na Kanuni) | Tin-plated Cu litz wires |
| Uharibifu wa moshi (Viwango na Kanuni) | EN 50267-2-2 |
| Volti ya majaribio, kebo (Viwango na Kanuni) | 3500 V AC (50 Hz, 5 min.) |
| Upinzani wa kondakta (Viwango na Kanuni) | ≤ 40.1 Ω/km |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | ≥ 100 |
| Mzunguko/kipengele cha kinga (Hali ya mazingira) | unwired |
| Mkusanyiko wa moshi (Viwango na Kanuni) | BS 6853 D.8.7 |
| Ala ya nje, rangi (Viwango na Kanuni) | black |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 600 V AC (Core-ground, U0) |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PE-X |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 5x 0.5 mm² |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 28R |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.2 mm ±0,3 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PE-X |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -50 °C ... 120 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 19x 0.18 mm |
| Ulinzi wa moto katika magari ya reli (Viwango na Kanuni) | BS 6853 (Category Ia, Ib, II) |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.43 mm |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 3 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 4 x D |
Maelezo ya Bidhaa
Sensor/actuator cable, 5-pole, halogen-free PE-X, black, shielded, M12 SPEEDCON straight male connector, coding: A, to free cable end, cable length: 10 m, For railway applications
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
