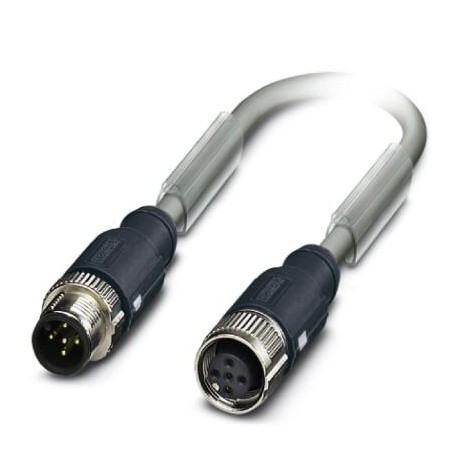

SAC-5P-M12MS/2,0-923/M12FS CAN
SAC-5P-M12MS/2,0-923/M12FS CAN 1073557 PHOENIX CONTACT Bus system cable SAC-5P-M12MS/2,0-923/M12FS CAN 10735..
$0.00USD
3232 kwenye hisa
Vipimo Muhimu
GTIN:4055626770376
Ufunguo wa kuagiza:1073557
Kitengo cha kufungasha:1
(Vipimo):60 V DC
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626770376 |
| Ufunguo wa kuagiza | 1073557 |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | 60 V DC |
| UNSPSC 11 (ETIM) | 26121604 |
| ETIM 2.0 (eCl@ss) | EC000830 |
| ETIM 3.0 (eCl@ss) | EC000830 |
| ETIM 4.0 (eCl@ss) | EC001855 |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001262 |
| UNSPSC 13.2 (ETIM) | 31251501 |
| UNSPSC 6.01 (ETIM) | 26121616 |
| Usimbaji (Vipimo) | A - standard |
| UNSPSC 12.01 (ETIM) | 26121616 |
| Nambari ya ushuru maalum | 85444290 |
| UNSPSC 7.0901 (ETIM) | 26121616 |
| Haina Halojeni (Nyenzo) | complying with IEC 60754-1/2 |
| Nyenzo za mawasiliano (Jumla) | CuSn |
| Nyenzo, knurls (Jumla) | Zinc die-cast |
| Volti iliyokadiriwa (Vipimo) | 48 V AC |
| Nyenzo ya kuziba (Jumla) | NBR |
| Onyesho la hali (Vipimo) | No |
| (Viwango na Kanuni) | -20 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 4.0 (Uainishaji) | 27060307 |
| eCl@ss 4.1 (Uainishaji) | 27060307 |
| eCl@ss 5.0 (Uainishaji) | 27061801 |
| eCl@ss 5.1 (Uainishaji) | 27060307 |
| eCl@ss 6.0 (Uainishaji) | 27279218 |
| eCl@ss 7.0 (Uainishaji) | 27060308 |
| eCl@ss 8.0 (Uainishaji) | 27279218 |
| eCl@ss 9.0 (Uainishaji) | 27060308 |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Kiwango cha uchafuzi (Vipimo) | 3 |
| Idadi ya nafasi (Vipimo) | 5 |
| Kategoria ya volteji kupita kiasi (Vipimo) | II |
| Aina/kategoria ya ishara (Vipimo) | CANopen® |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | TPU GF |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Upinzani wa insulation (Vipimo) | ≥ 100 MΩ |
| Mkondo uliokadiriwa kwa 40°C (Vipimo) | 4 A |
| Urefu wa kebo (Data Muhimu ya Biashara) | 2 m |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | CAN Bus/DeviceNet drop cable |
| Upunguzaji (Viwango na Kanuni) | ≤ 22.9 dB/km (with 1 MHz) |
| Rangi za waya (Viwango na Kanuni) | Red-black, blue-white |
| Kuongeza Kasi (Viwango na Kanuni) | 3 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 90 kg/km |
| Haina Halojeni (Viwango na Kanuni) | in accordance with DIN VDE 0472 part 815 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 21198 (80°C/300 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | 2 pairs around a drain wire in the center to the core |
| Jozi zilizosokotwa (Viwango na Kanuni) | 2 cores to the pair |
| Radi ya kupinda (Viwango na Kanuni) | 70 mm |
| Uwezo wa kebo (Viwango na Kanuni) | nom. 40 nF/km (Data cable) |
| Kizuizi cha wimbi (Viwango na Kanuni) | 120 Ω ±10 % (with 1 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 24 |
| Muundo wa kebo (Viwango na Kanuni) | 2xAWG24/19+2xAWG22/19 |
| Upinzani wa kitanzi (Viwango na Kanuni) | ≤ 181.80 Ω/km (Data cable) |
| Njia ya kupita (Viwango na Kanuni) | 4.5 m |
| Kiwango cha kupita (Viwango na Kanuni) | 3 m/s |
| Ugavi wa umeme wa AWG (Viwango na Kanuni) | 22 |
| Upinzani wa moto (Viwango na Kanuni) | UL 1581, Sec. 1060 (FT-1) |
| Upinzani mwingine (Viwango na Kanuni) | Low adhesion |
| Nyenzo ya kondakta (Viwango na Kanuni) | Tin-plated Cu litz wires |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | HB |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | HB |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 5 GΩ*km (Data cable) |
| Ala ya nje, rangi (Viwango na Kanuni) | silver-gray RAL 7001 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 300 V (Peak value, not for high-power applications) |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Aina ya ngao ya jozi (Viwango na Kanuni) | Plastic-coated aluminum foil, aluminum side outside |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 2x 0.25 mm² (Data cable) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 80 % |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 5000000 |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 923 |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.7 mm ±0,3 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | Foamed PE (Data cable) |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 19x 0.13 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.95 mm ±0.05 mm (Data cable) |
| Muundo wa kondakta, usambazaji wa volteji (Viwango na Kanuni) | 19x 0.15 mm |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 10 x D |
| Kiwango cha chini cha radius ya kupinda, matumizi ya mnyororo wa kuburuta (Viwango na Kanuni) | 10 x D |
Maelezo ya Bidhaa
Bus system cable, CANopen®, 5-pole halogen-free, shielded, M12 straight connector, encoding: A, to M12 straight female, encoding: A, cable length: 2 m, Unshielded plug-in connector
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Bus system cable, CANopen®, 5-position, PUR halogen-free, silver-gray RAL 7001, shielded, Plug straight M12, A-coded, on Socket straight M12, A-coded, cable length: 2 m, Connector unshielded
