SAC-5P-M12MS/10,0-PVC SH OBS

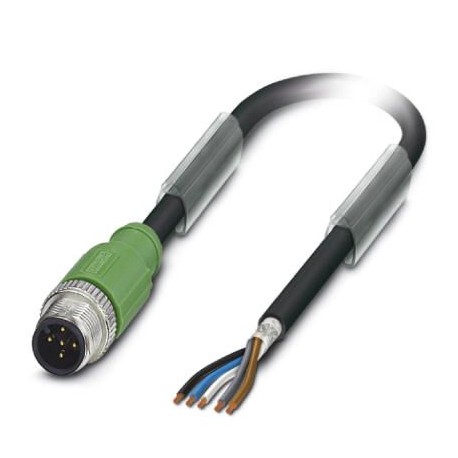

SAC-5P-M12MS/10,0-PVC SH OBS 1404884 PHOENIX CONTACT Sensor/actuator cable, 5-pos., PVC, RAL 9005 (black), s..
$0.00USD
3147 kwenye hisa
Vipimo Muhimu
GTIN:4046356726917
(Kebo):No hazardous substances above threshold values
Ufunguo wa kuagiza:1404884
(Michoro):
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356726917 |
| (Kebo) | No hazardous substances above threshold values |
| Ufunguo wa kuagiza | 1404884 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | IP67 |
| UNSPSC 11 (ETIM) | 31251501 |
| ETIM 3.0 (eCl@ss) | EC001855 |
| ETIM 4.0 (eCl@ss) | EC001855 |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 6.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001855 |
| RoHS ya China (Kebo) | Environmentally friendly use period: unlimited = EFUP-e |
| UNSPSC 13.2 (ETIM) | 31251501 |
| UNSPSC 19.0 (ETIM) | 31251501 |
| UNSPSC 20.0 (ETIM) | 31251501 |
| UNSPSC 21.0 (ETIM) | 31251501 |
| UNSPSC 6.01 (ETIM) | 31251501 |
| UNSPSC 12.01 (ETIM) | 31251501 |
| Nambari ya ushuru maalum | 85444290 |
| UNSPSC 7.0901 (ETIM) | 31251501 |
| (Hali ya mazingira) | 60 V DC |
| Nyenzo za mawasiliano (Jumla) | CuSn |
| Length of cable (Drawings) | 10 m |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Usimbaji (Hali za mazingira) | A - standard |
| (Viwango na Kanuni) | -5 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 4.0 (Uainishaji) | 27060300 |
| eCl@ss 4.1 (Uainishaji) | 27060300 |
| eCl@ss 5.0 (Uainishaji) | 27061800 |
| eCl@ss 5.1 (Uainishaji) | 27061800 |
| eCl@ss 6.0 (Uainishaji) | 27279200 |
| eCl@ss 7.0 (Uainishaji) | 27279218 |
| eCl@ss 8.0 (Uainishaji) | 27279218 |
| eCl@ss 9.0 (Uainishaji) | 27060311 |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Kiwango cha ulinzi (Vipimo) | IP65 |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | TPU GF |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 48 V AC |
| Onyesho la hali (Hali ya mazingira) | No |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PVC black |
| Rangi za waya (Viwango na Kanuni) | Brown, white, blue, black, gray |
| Uzito wa kebo (Viwango na Kanuni) | 55 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Idadi ya nafasi (Hali ya mazingira) | 5 |
| Mzunguko wa jumla (Viwango na Kanuni) | 5 wires around filler to the core |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Upinzani wa insulation (Hali ya mazingira) | ≥ 100 MΩ |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 22 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A |
| Upinzani wa moto (Viwango na Kanuni) | As per UL-Style 2464 |
| Nyenzo, kijazaji (Viwango na Kanuni) | PVC |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Volti ya majaribio, kebo (Viwango na Kanuni) | ≥ 3000 V |
| Upinzani wa kondakta (Viwango na Kanuni) | ≤ 58 Ω/km (at 20 °C) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | HB |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | ≥ 100 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | HB |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 10 MΩ*km (at 20 °C) |
| Unene, insulation (Viwango na Kanuni) | ≥ 0.23 mm (Core insulation) |
| Ala ya nje, rangi (Viwango na Kanuni) | black RAL 9005 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 300 V |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PVC |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 5x 0.34 mm² (Signal line) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | PVC |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 5.9 mm ±0.2 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PVC |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -25 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 42x 0.10 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.35 mm ±0.02 mm |
| Dimensional drawingPlug, M12 x 1, straight, shielded (Drawings) | |
| Schematic diagramPin assignment M12 male connector, 5-pos., A-coded, male side (Drawings) |
Maelezo ya Bidhaa
Sensor/actuator cable, 5 poles, PVC, black RAL 9005, shielded, straight male connector M12, codif. A, To free cable end, cable length: 10 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingPlug, M12 x 1, straight, shielded
