SAC-5P-M12MS/ 0,3-802/M12FR-3L

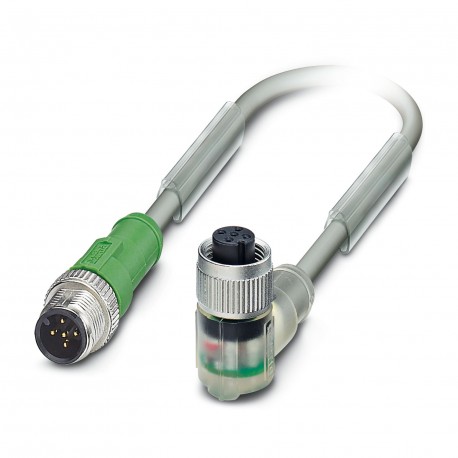

SAC-5P-M12MS/ 0,3-802/M12FR-3L 1457306 PHOENIX CONTACT Sensor/actuator cable
$23.72USD
458 kwenye hisa
Vipimo Muhimu
:Max. bending cycles: 15000000, Bending radius: 50 mm, Traversing path: 0.9 m, Traversing rate: 5 m/s, Acceleration: 30 m/s²
Dokezo:Due to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments.
Aina:Plug straight M12
Usimbaji:A
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Max. bending cycles: 15000000, Bending radius: 50 mm, Traversing path: 0.9 m, Traversing rate: 5 m/s, Acceleration: 30 m/s² | |
| Dokezo | Due to the extremely robust outer sheath, this cable should only be stripped in 5 cm increments. |
| Aina | Plug straight M12 |
| Usimbaji | A |
| Imehifadhiwa | no |
| Aina ya kebo | PUR halogen-free highly flexible resistant to welding sparks gray 5th conductor green/yellow [802] |
| Maombi | Robots and drag chains |
| Aina ya usimbaji | A |
| Urefu wa kebo | 0.3 m |
| Uzito wa kebo | 38 kg/km |
| Haina halojeni | The cable is halogen-free |
| Aina ya bidhaa | Sensor/actuator cable |
| Volti ya majaribio | 1200 V |
| Mtindo wa UL AWM | 20549 |
| Mzunguko wa jumla | 5 wires around filler to the core |
| Nyenzo ya kuziba | NBR |
| Onyesho la hali | 3 LEDs |
| Mstari wa ishara wa AWG | 22 |
| Nyenzo ya mawasiliano | CuSn |
| Upinzani wa moto | in accordance with UL 758/1581 FT2 |
| Upinzani mwingine | Highly resistant to acids, alkaline solutions and solvents |
| Upinzani dhidi ya mafuta | in accordance with DIN EN 60811-2-1 |
| Kukaza torque | 0.4 Nm (M12 connector) |
| Nyenzo ya kondakta | Bare Cu litz wires |
| Mkondo wa nominella IN | 4 A |
| Volti ya kawaida ya Umoja wa Mataifa | 24 V DC |
| Waya moja, rangi | brown, white, blue, black, green-yellow |
| Sifa maalum | Cable jacket is welding spark-resistant, recyclable, matt, low-adhesion, abrasion-resistant, flame-retardant, and self-extinguishing |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Idadi ya nafasi | 5 |
| Kiwango cha ulinzi | IP65 |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | ≥ 100 MΩ |
| Nyenzo ya mwili wa mshiko | TPU, hardly inflammable, self-extinguishing |
| Ala ya nje, rangi | gray RAL 7001 |
| Volti ya kawaida, kebo | 300 V |
| Ala ya nje, nyenzo | PUR |
| Onyesho la hali linapatikana | Yes |
| Sehemu ya msalaba ya kondakta | 5x 0.34 mm² (Signal line) |
| Kipenyo cha kebo ya nje | 5.10 mm ±0.2 mm |
| Nyenzo za mawasiliano | TPU GF |
| Nyenzo ya uso wa mguso | Ni/Au |
| Uzuiaji wa waya wa nyenzo | PP |
| Viwango/vipimo | IEC 61076-2-101 |
| Upinzani wa juu zaidi wa kondakta | approx. 53 Ω/km |
| Mizunguko ya kuingiza/kutoa | ≥ 100 |
| Nyenzo ya kuunganisha skrubu | Zinc die-cast, nickel-plated |
| Kipenyo cha waya ikijumuisha insulation | 1.3 mm ±0.05 mm (Signal line) |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 42x 0.10 mm |
| Uwezo wa mzigo unaobadilika (kuinama) | Max. bending cycles: 10000000, Bending radius: 7,5 x D, Traversing path: 5 m, Traversing rate: 3.3 m/s, Acceleration: 5 m/s² |
| Uwezo wa mzigo unaobadilika (msukumo) | Torsion: ±360 °/m, Torsion cycles: 1000000 |
| Ukadiriaji wa kuwaka kulingana na UL 94 | HB |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika | 5 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 26 mm |
| Kiwango cha chini cha kuinama, usakinishaji rahisi | 5 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 26 mm |
Maelezo ya Bidhaa
Sensor/actuator cable, 5-pole, halogen-free, solder-resistant, highly flexible, grey RAL 7001, M12 straight male connector, coding: A, to M12 angled connection female, coding: A, with 3 LEDs, cable le
