SAC-5P-M12MRB/ 3,0-PUR/M12FRB

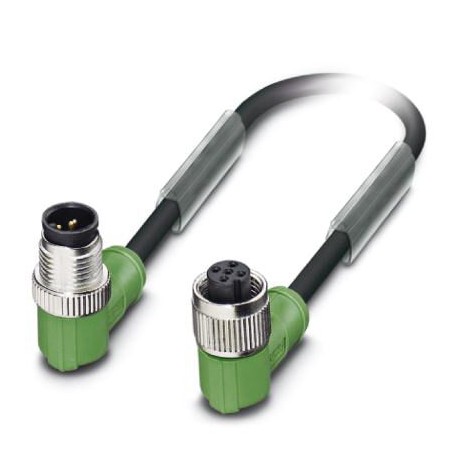

SAC-5P-M12MRB/ 3,0-PUR/M12FRB 1126381 PHOENIX CONTACT Sensor/actuator cable, 5-pos., PUR, halogen free, blac..
$0.00USD
3244 kwenye hisa
Vipimo Muhimu
GTIN:4063151052485
Ufunguo wa kuagiza:1126381
(Michoro):
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4063151052485 |
| Ufunguo wa kuagiza | 1126381 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | 60 V DC |
| Usimbaji (Vipimo) | B - inverse |
| Nambari ya ushuru maalum | 85444290 |
| Nyenzo za mawasiliano (Jumla) | CuSn |
| Length of cable (Drawings) | 3 m |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Volti iliyokadiriwa (Vipimo) | 48 V AC |
| Nyenzo ya kuziba (Jumla) | NBR |
| Onyesho la hali (Vipimo) | No |
| (Viwango na Kanuni) | -25 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 9.0 (Uainishaji) | 27060311 |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Kiwango cha uchafuzi (Vipimo) | 3 |
| Idadi ya nafasi (Vipimo) | 5 |
| Kategoria ya volteji kupita kiasi (Vipimo) | II |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | TPU GF |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Upinzani wa insulation (Vipimo) | ≥ 100 MΩ |
| Mkondo uliokadiriwa kwa 40°C (Vipimo) | 4 A |
| Aina ya kebo (Viwango na Kanuni) | PUR halogen-free black |
| Rangi za waya (Viwango na Kanuni) | brown, white, blue, black, green-yellow |
| Kuongeza Kasi (Viwango na Kanuni) | 10 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 33 kg/km |
| Haina Halojeni (Viwango na Kanuni) | in accordance with DIN VDE 0472 part 815 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20549 |
| Radi ya kupinda (Viwango na Kanuni) | 50 mm |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 22 |
| Njia ya kupita (Viwango na Kanuni) | 10 m |
| Kiwango cha kupita (Viwango na Kanuni) | 3 m/s |
| Upinzani wa moto (Viwango na Kanuni) | in accordance with UL 758/1581 FT2 |
| Upinzani mwingine (Viwango na Kanuni) | Highly resistant to acids, alkaline solutions and solvents |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | in accordance with DIN EN 60811-2-1 |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Mali maalum (Viwango na Kanuni) | Flexible cable conduit capable |
| Volti ya majaribio, kebo (Viwango na Kanuni) | 3000 V |
| Upinzani wa kondakta (Viwango na Kanuni) | max. 58 Ω/km (at 20 °C) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | HB |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | HB |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 16 GΩ*km (at 20 °C) |
| Unene, insulation (Viwango na Kanuni) | approx. 0.5 mm |
| Ala ya nje, rangi (Viwango na Kanuni) | black-gray RAL 7021 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 300 V |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 5x 0.34 mm² (Signal line) |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 10000000 |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | PUR |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 4.55 mm ±0.15 mm |
| Dimensional drawingM12 x 1 male plug, angled (Drawings) | |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PP |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 42x 0.10 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.27 mm ±0.02 mm (Signal line) |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika (Viwango na Kanuni) | 23 mm |
| Radi ndogo zaidi ya kupinda, usakinishaji unaohamishika (Viwango na Kanuni) | 46 mm |
Maelezo ya Bidhaa
Sensor/actuator cable, 5-pole, halogen-free PUR, greyish black RAL 7021, Angled male connector M12, to Angled connection female M12, cable length: 3 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingM12 x 1 male plug, angled
