SAC-5P-10,0-92X/M12FS SH OD

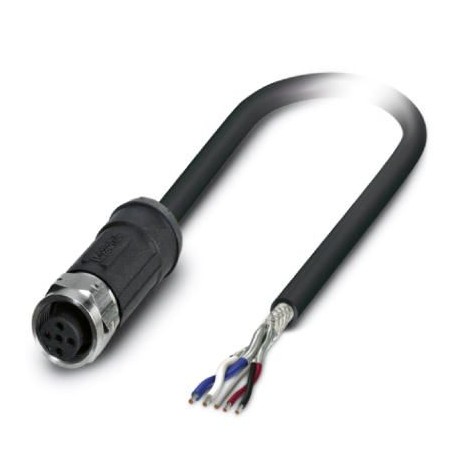

SAC-5P-10,0-92X/M12FS SH OD 1410496 PHOENIX CONTACT Bus system cable
$0.00USD
3804 kwenye hisa
Vipimo Muhimu
GTIN:4046356899420
Dokezo:Made to Order (non-returnable)
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1410496
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356899420 |
| Dokezo | Made to Order (non-returnable) |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1410496 |
| (Nyenzo) | 5 (Socket) | BU (CAN_L) |
| Ukurasa wa katalogi | Page 187 (NTK-2014) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | IP69K |
| Nchi ya asili | PL (Poland) |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | DeviceNet™ |
| Nyenzo za mawasiliano (Jumla) | CuSn |
| Nyenzo, knurls (Jumla) | Stainless steel |
| Nyenzo ya kuziba (Jumla) | FPM |
| Usimbaji (Hali za mazingira) | A - standard |
| Torque (Hali ya mazingira) | 0.4 Nm (M12 connector) |
| (Viwango na Kanuni) | 55 Ω/km (Power) |
| Nyenzo ya mwili wa mshiko (Jumla) | PP |
| Kiwango cha ulinzi (Vipimo) | IP65 |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PP |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 48 V AC |
| Onyesho la hali (Hali ya mazingira) | No |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 687.200 g |
| Urefu wa kebo (Data Muhimu ya Biashara) | 10 m |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Uteuzi wa kawaida (Mgawo wa PIN) | M12 connector |
| Aina ya kebo (Viwango na Kanuni) | CAN bus/DeviceNet™, black |
| Viwango/kanuni (Mgawo wa PIN) | IEC 61076-2-101 |
| Rangi za waya (Viwango na Kanuni) | Red-black, blue-white |
| Uzito wa kebo (Viwango na Kanuni) | 70 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Haina Halojeni (Viwango na Kanuni) | yes |
| Idadi ya nafasi (Hali ya mazingira) | 5 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 21281 (80°C/300 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | 2 pairs around a drain wire in the center to the core |
| Aina/kategoria ya ishara (Hali za mazingira) | CANopen® |
| Jozi zilizosokotwa (Viwango na Kanuni) | 2 cores to the pair |
| Upinzani wa insulation (Hali ya mazingira) | ≥ 100 MΩ |
| Muda wa utekelezaji wa ishara (Viwango na Kanuni) | 4.46 ns/m |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-101 |
| Kizuizi cha wimbi (Viwango na Kanuni) | 120 Ω ±12 Ω (f = 1 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 24 |
| Muundo wa kebo (Viwango na Kanuni) | 2xAWG24/19+2xAWG22/19 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A |
| Ugavi wa umeme wa AWG (Viwango na Kanuni) | 22 |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 105 °C (Plug / socket) |
| Upinzani wa moto (Viwango na Kanuni) | According to IEC 60332-3-25 (Cat. D) |
| Upinzani mwingine (Viwango na Kanuni) | UV resistant |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | yes |
| Kifupisho cha kebo (Viwango na Kanuni) | LI2XCHX02XS |
| Nyenzo ya kondakta (Viwango na Kanuni) | Tin-plated Cu litz wires |
| Uwezo wa kufanya kazi (Viwango na Kanuni) | 39.8 nF (at 1 kHz, core/core) |
| Upinzani wa kondakta (Viwango na Kanuni) | 90 Ω/km (Signal) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Mizunguko ya kuingiza/kutoa (Hali za mazingira) | ≥ 100 |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 200 MΩ*km (at 20 °C) |
| Mzunguko/kipengele cha kinga (Hali ya mazingira) | unwired |
| Unene, insulation (Viwango na Kanuni) | 0.6 mm (Signal) |
| Ala ya nje, rangi (Viwango na Kanuni) | black |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 300 V |
| Unene wa ala ya nje (Viwango na Kanuni) | 1.15 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | FRNC |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Aina ya ngao ya jozi (Viwango na Kanuni) | Aluminum-lined foil |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 2x 0.25 mm² (Signal) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 70 % |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 92X |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.9 mm ±0,3 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Mgawo wa PIN) | V0 |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PE |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 105 °C |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 19x 0.13 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.9 mm (Signal) |
| Muundo wa kondakta, usambazaji wa volteji (Viwango na Kanuni) | 19x 0.16 mm |
| Mwasiliani | Rangi (utambulisho wa ishara) | Mwasiliani (hiari) (Nyenzo) | 1 (Socket) | SR (shield) |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 10 x D |
Maelezo ya Bidhaa
Bus System Cable, CANopen®, DeviceNet™, 5-pole halogen-free, shielded, free cable end, to Straight Female M12, coding: A, cable length: 10 m, for outdoor applications, with stainless steel knurling
