SAC-4P-M12MS/ 0,6-PUR/M12FS SH

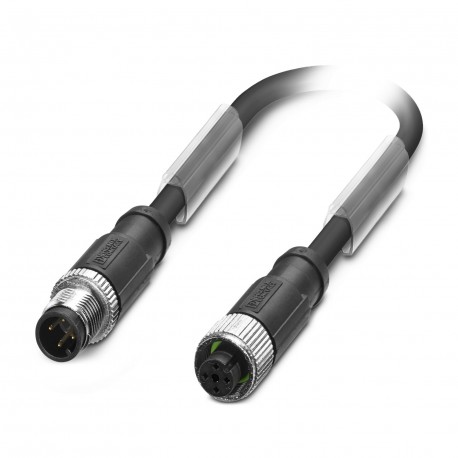

SAC-4P-M12MS/ 0,6-PUR/M12FS SH 1500855 PHOENIX CONTACT Sensor/actuator cable
$25.48USD
442 kwenye hisa
Vipimo Muhimu
:60 V DC
Aina:Plug straight M12
Usimbaji:A
Imehifadhiwa:yes
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 60 V DC | |
| Aina | Plug straight M12 |
| Usimbaji | A |
| Imehifadhiwa | yes |
| Aina ya kebo | PUR halogen-free black [PUR] |
| Maombi | Standard |
| Aina ya usimbaji | A |
| Urefu wa kebo | 0.6 m |
| Uzito wa kebo | 36 kg/km |
| Haina halojeni | in accordance with DIN VDE 0472 part 815 |
| Aina ya bidhaa | Sensor/actuator cable |
| Volti ya majaribio | ≥ 3000 V |
| Mtindo wa UL AWM | 20549 / 10493 (80°C/300 V) |
| Mzunguko wa jumla | 4 wires, twisted |
| Nyenzo ya kuziba | NBR |
| Uwezo wa kebo | ≤ 80 pF/m (Conductor-Conductor) |
| Onyesho la hali | no |
| Kizuizi cha wimbi | ≥ 62 Ω (f = 10 MHz) |
| Mstari wa ishara wa AWG | 22 |
| Marekebisho ya makala | 13 |
| Nyenzo ya mawasiliano | CuSn |
| Upinzani wa moto | in accordance with UL 758/1581 FT2 |
| Upinzani mwingine | Highly resistant to acids, alkaline solutions and solvents |
| Upinzani dhidi ya mafuta | in accordance with DIN EN 60811-2-1 |
| Kukaza torque | 0.4 Nm (M12 connector) |
| Nyenzo ya kondakta | Bare Cu litz wires |
| Mkondo wa nominella IN | 4 A |
| Volti ya kawaida ya Umoja wa Mataifa | 48 V AC |
| Waya moja, rangi | brown, white, blue, black |
| Sifa maalum | Flexible cable conduit capable |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Idadi ya nafasi | 4 |
| Kiwango cha ulinzi | IP65 |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | ≥ 100 MΩ |
| Nyenzo ya mwili wa mshiko | TPU, hardly inflammable, self-extinguishing |
| Unene, insulation | ≥ 0.21 mm |
| Ala ya nje, rangi | black-gray RAL 7021 |
| Volti ya kawaida, kebo | ≤ 300 V |
| Ala ya nje, nyenzo | PUR |
| Onyesho la hali linapatikana | No |
| Sehemu ya msalaba ya kondakta | 4x 0.34 mm² (Signal line) |
| Kipenyo cha kebo ya nje | 4.95 mm ±0.2 mm |
| Kifuniko cha ngao ya macho | 80 % |
| Unene, ala ya nje | approx. 0.50 mm |
| Nyenzo za mawasiliano | TPU GF |
| Nyenzo ya uso wa mguso | Ni/Au |
| Uzuiaji wa waya wa nyenzo | PP |
| Viwango/vipimo | IEC 61076-2-101 |
| Upinzani wa juu zaidi wa kondakta | max. 58 Ω/km (at 20 °C) |
| Mizunguko ya kuingiza/kutoa | ≥ 100 |
| Nyenzo ya kuunganisha skrubu | Zinc die-cast, nickel-plated |
| Kipenyo cha waya ikijumuisha insulation | 1.27 mm ±0.02 mm (Signal line) |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta | 42x 0.10 mm |
| Uwezo wa mzigo unaobadilika (kuinama) | Max. bending cycles: 10000000, Bending radius: 10 x D, Traversing path: 10 m, Traversing rate: 3 m/s, Acceleration: 10 m/s² |
| Ukadiriaji wa kuwaka kulingana na UL 94 | HB |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika | 5 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 25 mm |
| Kiwango cha chini cha kuinama, usakinishaji rahisi | 10 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 50 mm |
Maelezo ya Bidhaa
Sensor/actuator cable, 4-pole halogen-free, shielded, M12 straight connector, encoding: A, to M12 straight female, coding: A, cable length: 0.6 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
