SAC-4P-15,0-PUR/M12FS SH NC

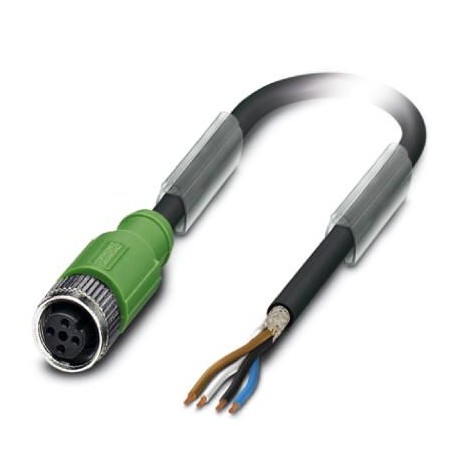

SAC-4P-15,0-PUR/M12FS SH NC 1417675 PHOENIX CONTACT Sensor/actuator cable SAC-4P-15,0-PUR/M12FS SH NC 1417675
$0.00USD
4605 kwenye hisa
Vipimo Muhimu
GTIN:4055626119687
(Kebo):No hazardous substances above threshold values
Ufunguo wa kuagiza:1417675
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626119687 |
| (Kebo) | No hazardous substances above threshold values |
| Ufunguo wa kuagiza | 1417675 |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | 60 V DC |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 6.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001855 |
| RoHS ya China (Kebo) | Environmentally friendly use period: unlimited = EFUP-e |
| UNSPSC 13.2 (ETIM) | 31251501 |
| Usimbaji (Vipimo) | A - standard |
| Nambari ya ushuru maalum | 85444290 |
| Nyenzo za mawasiliano (Jumla) | CuSn |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Volti iliyokadiriwa (Vipimo) | 48 V AC |
| Nyenzo ya kuziba (Jumla) | NBR |
| Onyesho la hali (Vipimo) | No |
| (Viwango na Kanuni) | -25 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 5.1 (Uainishaji) | 27061801 |
| eCl@ss 6.0 (Uainishaji) | 27279200 |
| eCl@ss 7.0 (Uainishaji) | 27279218 |
| eCl@ss 8.0 (Uainishaji) | 27279218 |
| eCl@ss 9.0 (Uainishaji) | 27060311 |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Kiwango cha uchafuzi (Vipimo) | 3 |
| Idadi ya nafasi (Vipimo) | 4 |
| Kategoria ya volteji kupita kiasi (Vipimo) | II |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | TPU GF |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Upinzani wa insulation (Vipimo) | ≤ 10 MΩ |
| Mkondo uliokadiriwa kwa 40°C (Vipimo) | 4 A |
| Urefu wa kebo (Data Muhimu ya Biashara) | 15 m |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PUR halogen-free black |
| Rangi za waya (Viwango na Kanuni) | brown, white, blue, black |
| Kuongeza Kasi (Viwango na Kanuni) | 10 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 36 kg/km |
| Haina Halojeni (Viwango na Kanuni) | in accordance with DIN VDE 0472 part 815 |
| Mizunguko ya kuingiza/kutoa (Vipimo) | ≥ 100 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20549 / 10493 (80°C/300 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | 4 wires, twisted |
| Uwezo wa kebo (Viwango na Kanuni) | ≤ 80 pF/m (Conductor-Conductor) |
| Kizuizi cha wimbi (Viwango na Kanuni) | ≥ 62 Ω (f = 10 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 22 |
| Njia ya kupita (Viwango na Kanuni) | 10 m |
| Kiwango cha kupita (Viwango na Kanuni) | 3 m/s |
| Upinzani wa moto (Viwango na Kanuni) | in accordance with UL 758/1581 FT2 |
| Upinzani mwingine (Viwango na Kanuni) | Highly resistant to acids, alkaline solutions and solvents |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | in accordance with DIN EN 60811-2-1 |
| Kifupisho cha kebo (Viwango na Kanuni) | Li9Y-V1-C-V1-11Y |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Mali maalum (Viwango na Kanuni) | Flexible cable conduit capable |
| Volti ya majaribio, kebo (Viwango na Kanuni) | ≥ 3000 V |
| Uingizaji wa kondakta (Viwango na Kanuni) | approx. 0.75 mH/km (f = 1 kHz) |
| Upinzani wa kondakta (Viwango na Kanuni) | max. 58 Ω/km (at 20 °C) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | HB |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | HB |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 100 GΩ*km (at 20 °C) |
| Unene, insulation (Viwango na Kanuni) | ≥ 0.21 mm |
| Ala ya nje, rangi (Viwango na Kanuni) | black-gray RAL 7021 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 300 V |
| Unene wa ala ya nje (Viwango na Kanuni) | approx. 0.5 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 4x 0.34 mm² (Signal line) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 80 % |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 10000000 |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | PUR |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 4.95 mm ±0.2 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PP |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 42x 0.10 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.27 mm ±0.02 mm (Signal line) |
| Urefu wa kukatwa kwa ncha ya kondakta huru (Data Muhimu ya Kibiashara) | 50 mm |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 10 x D |
| Kiwango cha chini cha radius ya kupinda, matumizi ya mnyororo wa kuburuta (Viwango na Kanuni) | 10 x D |
Maelezo ya Bidhaa
Sensor/actuator cable, 4-pole, halogen-free PUR, greyish black RAL 7021, shielded, free cable end, to Straight connection female M12, coding: A, cable length: 15 m, The screen is not placed in the knu
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Sensor/actuator cable, 4-position, PUR halogen-free, black-gray RAL 7021, shielded, free cable end, on Socket straight M12, A-coded, cable length: 15 m, Shield not connected to knurl
