SAC-2P-M12MSB/20-910/M12FSB PF

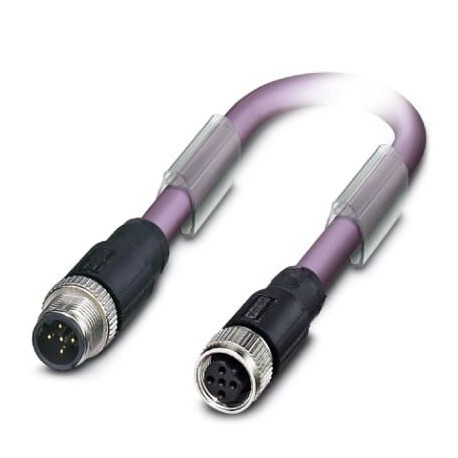

SAC-2P-M12MSB/20-910/M12FSB PF 1110577 PHOENIX CONTACT Bus system cable, PROFIBUS (12 Mbps), 2-position, PUR..
$0.00USD
3388 kwenye hisa
Vipimo Muhimu
GTIN:4063151027056
Ufunguo wa kuagiza:1110577
(Michoro):
(Nyenzo):≤ 70 °C (cable, drag chain applications)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4063151027056 |
| Ufunguo wa kuagiza | 1110577 |
| (Michoro) | |
| (Nyenzo) | ≤ 70 °C (cable, drag chain applications) |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | 60 V DC |
| Note (Dimensions) | Further products with variable cable lengths can be found in the accessories section |
| Usimbaji (Vipimo) | B - inverse |
| Nambari ya ushuru maalum | 85444290 |
| Kinga (Nyenzo) | Plastic-coated aluminum foil, tinned copper braided shield |
| Aina ya kebo (Nyenzo) | PROFIBUS |
| Kupunguza (Nyenzo) | ≤ 0.049 dB/m (at 16 MHz) |
| Rangi za waya (Nyenzo) | Red, green |
| Kuongeza kasi (Nyenzo) | 3 m/s² |
| Uzito wa kebo (Nyenzo) | 90 kg/km |
| Haina Halojeni (Nyenzo) | in accordance with DIN VDE 0472 part 815 |
| Mtindo wa UL AWM (Nyenzo) | 21198 (80°C/300 V) |
| Mzunguko wa jumla (Nyenzo) | 2 cores with 2 fillers to the core |
| Radi ya kupinda (Nyenzo) | 80 mm |
| Uwezo wa kebo (Nyenzo) | nom. 30 pF/m |
| Kizuizi cha wimbi (Nyenzo) | 150 Ω ±10 % (3 MHz ... 20 MHz) |
| Mstari wa ishara wa AWG (Nyenzo) | 24 |
| Muundo wa kebo (Nyenzo) | 1x2xAWG24/19 |
| Circuit diagram (Drawings) | |
| Nyenzo za mawasiliano (Jumla) | CuSn |
| Length of cable (Drawings) | 20 m |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Volti iliyokadiriwa (Vipimo) | 48 V AC |
| Nyenzo ya kuziba (Jumla) | NBR |
| Njia ya kupita (Nyenzo) | 4.5 m |
| Kiwango cha kupita (Nyenzo) | 3 m/s |
| Upinzani wa moto (Nyenzo) | UL 1581, Sec. 1060 (FT-1) |
| Nyenzo, kijazaji (Nyenzo) | PP |
| Upinzani mwingine (Nyenzo) | Low adhesion |
| Onyesho la hali (Vipimo) | No |
| eCl@ss 8.0 (Uainishaji) | 27060308 |
| eCl@ss 9.0 (Uainishaji) | 27060308 |
| Nyenzo ya kondakta (Nyenzo) | Tin-plated Cu litz wires |
| Upinzani wa kondakta (Nyenzo) | ≤ 78.6 Ω/km |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Kiwango cha uchafuzi (Vipimo) | 3 |
| Upinzani wa insulation (Nyenzo) | ≥ 5 GΩ*km |
| Idadi ya nafasi (Vipimo) | 2 |
| Ala ya nje, rangi (Nyenzo) | violet RAL 4001 |
| Volti ya kawaida, kebo (Nyenzo) | 30 V |
| Ala ya nje, nyenzo (Nyenzo) | PUR |
| Kategoria ya volteji kupita kiasi (Vipimo) | II |
| Aina/kategoria ya ishara (Vipimo) | PROFIBUS, 12 Mbps (max. 100 m) |
| Volti ya jaribio Kiini/Kiini (Nyenzo) | 1500 V (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta (Nyenzo) | 2x 0.25 mm² (Signal line) |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PA 6.6 (plug), TPU GF (socket) |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Kifuniko cha ngao ya macho (Nyenzo) | 85 % |
| Idadi ya mizunguko ya kupinda (Nyenzo) | 5000000 |
| Mkondo uliokadiriwa kwa 40°C (Vipimo) | 4 A |
| Kiini/Ngao ya Jaribio la Volti (Nyenzo) | 1500 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Nyenzo) | 910 |
| Kipenyo cha kebo ya nje D (Nyenzo) | 7.8 mm ±0.2 mm |
| Insulation ya kondakta wa nyenzo (Nyenzo) | Foam-Skin PP |
| Halijoto ya mazingira (uendeshaji) (Nyenzo) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Nyenzo) | 19x 0.13 mm |
| Kipenyo cha msingi ikijumuisha insulation (Nyenzo) | 2.55 mm ±0.07 mm |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika (Nyenzo) | 40 mm |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa (Nyenzo) | 65 mm |
| Dimensional drawingPlug, M12 x 1, straight, shielded (Drawings) | |
| Schematic diagramPin assignment M12 socket, 5-pos., B-coded, female side (Drawings) |
Maelezo ya Bidhaa
Bus system cable, PROFIBUS (12 MBit/s), 2-pole halogen-free, shielded, M12 straight connector, encoding: B SPEEDCON, a Straight female M12, coding: A SPEEDCON, cable length: 20 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingPlug, M12 x 1, straight, shielded
