SAC-17P-10,0-35T/FR SH SCO
SAC-17P-10,0-35T/FR SH SCO 1430352 PHOENIX CONTACT Sensor/actuator cable
$187.15USD
83 kwenye hisa
Vipimo Muhimu
GTIN:4046356322621
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1430352
Ukurasa wa katalogi:Page 221 (C-2-2017)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356322621 |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1430352 |
| Ukurasa wa katalogi | Page 221 (C-2-2017) |
| Kitengo cha kufungasha | 1 pc |
| (Vipimo) | IP67 |
| Nchi ya asili | DE (Germany) |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | 30 V DC |
| Nyenzo za mawasiliano (Jumla) | CuZn |
| Nyenzo, knurls (Jumla) | Zinc die-cast, nickel-plated |
| Nyenzo ya kuziba (Jumla) | NBR |
| Usimbaji (Hali za mazingira) | A - standard |
| Upinzani wa moto (Nyenzo) | DIN VDE 0472 part 804, test type B |
| Upinzani mwingine (Nyenzo) | Hydrolysis and microbe resistant as per VDE 0282 section 10 |
| Torque (Hali ya mazingira) | 0.4 Nm (M12 connector) |
| (Viwango na Kanuni) | -5 °C ... 80 °C (cable, flexible installation) |
| Upinzani dhidi ya mafuta (Nyenzo) | DIN VDE 0472 Part 803, test type B |
| Nyenzo ya mwili wa mshiko (Jumla) | TPU, hardly inflammable, self-extinguishing |
| Uteuzi wa kawaida (Nyenzo) | M12 connector |
| Viwango/kanuni (Nyenzo) | IEC 61076-2-101 |
| Kiwango cha ulinzi (Vipimo) | IP65 |
| Nyenzo za mtoa huduma za mawasiliano (Jumla) | PA 6.6 |
| Nyenzo ya uso wa mguso (Jumla) | Ni/Au |
| Volti iliyokadiriwa (Hali ya mazingira) | 30 V AC |
| Onyesho la hali (Hali ya mazingira) | No |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 1,092.000 g |
| Urefu wa kebo (Data Muhimu ya Biashara) | 10 m |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | Black PUR/PVC twisted pair |
| Rangi za waya (Viwango na Kanuni) | White-brown, green-yellow, gray-pink, blue-red, black-violet, gray/pink-red/blue, white/green-brown/green, white/yellow-yellow/brown-white/gray |
| Kuongeza Kasi (Viwango na Kanuni) | 10 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 105 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Haina Halojeni (Viwango na Kanuni) | According to EN 50267-2-1 |
| Idadi ya nafasi (Hali ya mazingira) | 17 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20233 / 1061 (80°C/300 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | 7 pairs and 1 three-way unit, intertwisted |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Radi ya kupinda (Viwango na Kanuni) | 92 mm |
| Upinzani wa insulation (Hali ya mazingira) | ≥ 100 MΩ |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-101 |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 26 |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 1.5 A |
| Njia ya kupita (Viwango na Kanuni) | 10 m |
| Kiwango cha kupita (Viwango na Kanuni) | 3 m/s |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 90 °C (Plug / socket) |
| Upinzani wa moto (Viwango na Kanuni) | According to DIN EN 60332-1-2 |
| Upinzani mwingine (Viwango na Kanuni) | hydrolysis and microbe resistant according to EN 50396 |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | in accordance with DIN EN 60811-2-1 |
| Kifupisho cha kebo (Viwango na Kanuni) | LSYWC11Y |
| Nyenzo ya kondakta (Viwango na Kanuni) | Tin-plated Cu litz wires |
| Mali maalum (Viwango na Kanuni) | Flexible cable conduit capable |
| Volti ya majaribio, kebo (Viwango na Kanuni) | 1500 V AC |
| Upinzani wa kondakta (Viwango na Kanuni) | 142 Ω/km (at 20 °C) |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Nyenzo) | V0 |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 10 MΩ*km (at 20 °C) |
| Mzunguko/kipengele cha kinga (Hali ya mazingira) | unwired |
| Ala ya nje, rangi (Viwango na Kanuni) | black RAL 9005 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 42 V AC |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 17x 0.14 mm² (Signal line) |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 4000000 |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 35T |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 9.2 mm ±0.2 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PVC |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -30 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 18x 0.10 mm |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1 mm ±0.05 mm (Signal line) |
| Urefu wa kukatwa kwa ncha ya kondakta huru (Data Muhimu ya Kibiashara) | 35 mm |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 10 x D |
Maelezo ya Bidhaa

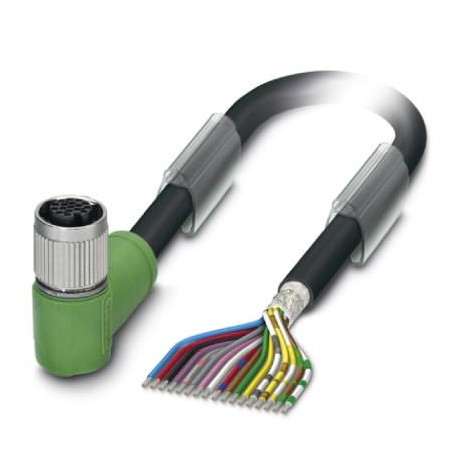

Sensor/actuator cable, 17-pole, shielded, free cable end, to Elbowed Female M12, coding: A SPEEDCON, cable length: 10 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
