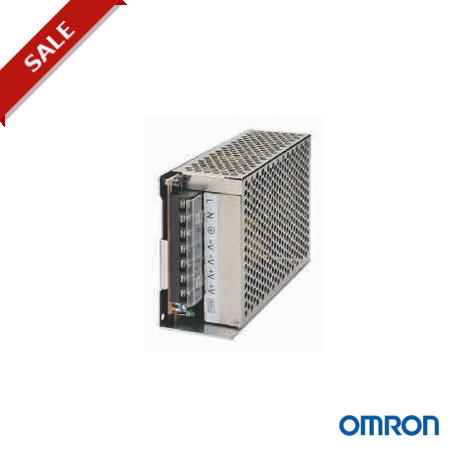

S8JC-ZS05024CD-AC2

S8JC-ZS Single-phaseCost effective range with CE markingThe S8JC-ZS Lite familyof metal framed power supplies is our best standard power supply for materialcost reduction.The range covers 15 W, 35 W, 50 W, 100 W, 150 W and 350 W models and all are available with 5, 12 or 24 VDC output voltages.•CE marking• Overload and over voltage protection• Conforms to EN 61204-3, EN 55011Class AOrdering informationPower ratings Output voltage Output current Size in mm (H ×W× D)Order code15 W5 V 3.0 A97 × 36 × 79.5S8JC-ZS01505CD-AC212 V 1.3 AS8JC-ZS01512CD-AC224 V 0.7 AS8JC-ZS01524CD-AC235 W5 V7 A 98.3 × 38 × 129S8JC-ZS03505CD-AC212 V 3.0 AS8JC-ZS03512CD-AC224 V 1.5 AS8JC-ZS03524CD-AC250W5V 10A 98.3× 38× 129S8JC-ZS05005CD-AC212 V 4.2 AS8JC-ZS05012CD-AC224 V 2.1 AS8JC-ZS05024CD-AC2100W5V 20A 98× 50× 159 S8JC-ZS10005CD-AC212 V8.5 A 97.6 × 38 × 159S8JC-ZS10012CD-AC224 V 4.5 AS8JC-ZS10024CD-AC2150W5V 30A 98× 43× 199 S8JC-ZS15005CD-AC212 V12.5 A98 × 50 × 159 S8JC-ZS15012CD-AC224 V 6.5 AS8JC-ZS15024CD-AC2350 W5 V 60 A 115 × 50 × 193.6S8JC-ZS35005CD-AC212 V 29 A S8JC-ZS35012CD-AC224 V14.6 A115 × 50 × 194.8S8JC-ZS35024CD-AC2SpecificationsItem 15 W 35 W 50 W 100 W 150 W 350 W Efficiency (Typ.)80% (24 V)84% (24 V)83% (24 V)87% (24 V)87% (24 V)84% (24 V) Input Rated input voltage 200 to 240 VACAllowable range 185 to 264 VACOutputVoltage adjustment range(with V.ADJ)±10%Overload protection Yes, 105% of rated currentOvervoltage protectionYesOperating ambient temperature−20 to 60°C (−4 to 140°F)Series operation NoParallel operation NoFulfilled standardsEN 50178 (CE mark by self declaration)545
