RPT-60A

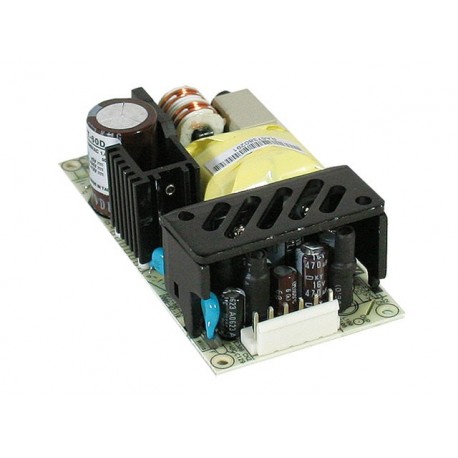

RPT-60A MEANWELL AC-DC Triple output Medical Open frame power supply, Output 5VDC / 4.4A +12VDC / 2.2A -5VDC..
$15.38USD
694 kwenye hisa
Vipimo Muhimu
Jina:RPT-60A
Kengele:Powerfail, Output OK
Muundo:Open Format
Mfululizo:RPT-60
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Jina | RPT-60A |
| Kengele | Powerfail, Output OK |
| Muundo | Open Format |
| Mfululizo | RPT-60 |
| Matokeo 1 | -5 |
| Matokeo 2 | +5 |
| Matokeo 3 | +12 |
| Idhini | CE, EN60601 3rd Edition, UL |
| Nguvu (W) | 46,50 |
| Fomu ndogo | 4"x2" |
| Upana (mm) | 50.8 |
| Urefu (mm) | Twenty nine |
| Kiwango cha juu cha kuingiza AC | 264,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Industrial, Medical, Telecommunications |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | Power supply AC/DC |
| Kutengwa (V) | 4.000,00 |
| Nguvu ya Kilele (W) | 51.1 |
| Kiunganishi cha kuingiza data | Plug-in |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 101.6 |
| Maelezo Marefu | Medical Power supply in Open Format(Open-Frame).Range of universal Input90-264vac47-63Hz.Outputs:-5vdc:Minimum intensity of output0.5 To.Maximum output current0,55Amps.+5vdc:Minimum intensity of output4A.Maximum output current4,4Amps.+12vdc:Minimum intensity of output2A.Maximum output current2,2Amps.Power:46,5 Wand51,1 W maximum 10 seconds.Source Certified for medical applications2 xMOPP(the patient protection).Leakage current < 100µA.Consumption without load<0,75 W.Efficiency:77%.Working temperature: from-20up+65ºCof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:101.6 x 50.8 x 29.3 years of warranty.Manufacturer: MEAN WELL.The series RPT-60 power supply certified for medical use with patient protection, 2 x MOPP (means of patient protection). They have a double protection between input and output 2xMOPP.Have a leakage current (contact current) is very low for a greater security in the application. Can operate with cooling by free air circulation or provide a higher power through the use of an external fan. |
| Kiunganishi cha kutoa | Plug-in |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 3,00 |
| Nchi ya Asili | China |
| Unahitaji Kupakia Kiwango cha Chini | Yes |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Medical Power supply in Open Format(Open-Frame).
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
