RFC 470 PN 3TX

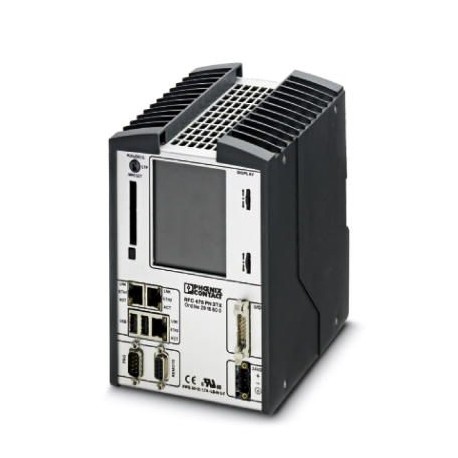

RFC 470 PN 3TX 2916600 PHOENIX CONTACT Controller
$0.00USD
3053 kwenye hisa
Vipimo Muhimu
GTIN:4046356174114
Ufunguo wa kuagiza:2916600
Ukurasa wa katalogi:Page 87 (C-6-2017)
Kina (Dokezo):190 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356174114 |
| Ufunguo wa kuagiza | 2916600 |
| Ukurasa wa katalogi | Page 87 (C-6-2017) |
| Kina (Dokezo) | 190 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 124 mm |
| Urefu (Dokezo) | 185 mm |
| (Usambazaji wa umeme) | 124 x 210 x 190 mm (W x H x D with fan) |
| Nchi ya asili | DE (Germany) |
| Mshtuko (Vipimo) | 25g, Criterion 1, according to IEC 60068-2-27 |
| Nambari ya ushuru maalum | 85371091 |
| Mshtuko (Data ya jumla) | 25g, Criterion 1, according to IEC 60068-2-27 |
| Umbizo (Ugavi wa umeme) | 124 x 185 x 190 mm (W x H x D without fan) |
| Jina la kuingiza (PROFINET) | Digital inputs |
| Uzito (Usambazaji wa umeme) | 2010 g |
| Jina la matokeo (PROFINET) | Digital outputs |
| Nambari (Kitendakazi cha Fieldbus) | 1 |
| Idadi ya pembejeo (PROFINET) | 5 |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Mbinu ya muunganisho (PROFINET) | 14-pos. FLK pin strip |
| Idadi ya matokeo (PROFINET) | 3 |
| Volti ya usambazaji (I/Os ya moja kwa moja) | 24 V DC |
| Kiolesura (Kitendakazi cha Fieldbus) | Parameterization/operation/diagnostics |
| Hifadhi ya wingi (Mfumo wa kudhibiti) | 16 Mbyte |
| Kichakataji (Ubunifu wa mitambo) | Intel®Celeron®927 UE 1.5 GHz |
| Kiwango cha sasisho (Violesura vya data) | min. 1 ms |
| Kipengele cha usalama (Ugavi wa umeme) | No |
| Usambazaji wa Nguvu (I/Os ya Moja kwa Moja) | max. 24 W |
| Kumbukumbu ya programu (Mfumo wa Udhibiti) | typ. 8 Mbyte |
| Saa ya muda halisi (Mfumo wa Udhibiti) | Integrated (battery backup) |
| Vipimo (Violesura vya data) | Version 1.1 |
| Teknolojia ya muunganisho (PROFINET) | FLK cable connector (14-pos.) |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Kitendakazi cha kifaa (Violesura vya data) | PROFINET controller, PROFINET device |
| Zana ya uhandisi (Mfumo wa Udhibiti) | PC WORX |
| Onyesho la uchunguzi (Usambazaji wa umeme) | yes |
| Kiwango cha volteji ya usambazaji (I/Os ya moja kwa moja) | 19.2 V DC ... 30 V DC (including ripple) |
| Mtetemo (uendeshaji) (Vipimo) | 1g, Criterion 1, according to IEC 60068-2-6 |
| Upungufu wa kidhibiti (Usambazaji wa umeme) | No |
| Mtetemo (uendeshaji) (Data ya jumla) | 1g, Criterion 1, according to IEC 60068-2-6 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 2,150.000 g |
| Shinikizo la hewa (uendeshaji) (Vipimo) | 80 kPa ... 108 kPa (up to 2000 m above sea level) |
| Mbinu ya muunganisho (Kitendakazi cha Fieldbus) | D-SUB 9 plug |
| Zana ya utambuzi (Hali za mazingira) | DIAG+, version 2.00 or higher |
| Zana ya uhandisi (Hali ya mazingira) | PC WORX |
| Muunganisho wa usambazaji wa umeme (I/Os ya Moja kwa Moja) | Screw terminal blocks, plug-in |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| REACh SVHC (Viwango na Kanuni) | 1,2-dimethoxyethane,ethylene glycol dimethyl ether (EGDME) 110-71-4 |
| Kasi ya upitishaji (kazi ya basi la Fieldbus) | 500 kBaud / 2 MBaud (can be switched) |
| Hifadhi ya wingi iliyohifadhiwa (Mfumo wa udhibiti) | 240 kByte (NVRAM) |
| Idadi ya kazi za udhibiti (Mfumo wa udhibiti) | 16 |
| Matumizi ya kawaida ya sasa (I/Os ya Moja kwa Moja) | 1 A |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | 0 °C ... 55 °C (from 45°C only with fan module) |
| Dokezo kuhusu vipimo vya uzito (Ugavi wa umeme) | with fan module |
| Mtetemo (uhifadhi/usafiri) (Takwimu ya jumla) | 1g, Criterion 1, according to IEC 60068-2-6 |
| Shinikizo la hewa (uhifadhi/usafiri) (Vipimo) | 66 kPa ... 108 kPa (up to 3000 m above sea level) |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 5 % ... 90 % (non-condensing) |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Kiasi cha data ya mchakato (mfumo wa muda wa IEC 61131) | max. 8192 Bit (INTERBUS-Master) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -25 °C ... 70 °C |
| Lugha za programu zinazotumika (Hali za mazingira) | Programming in acc. with IEC 61131-3 |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) (Vipimo) | 5 % ... 90 % (non-condensing) |
| Idadi ya vifaa vinavyotumika (mfumo wa muda wa IEC 61131) | max. 512 (of which 254 are remote bus devices/bus segments) |
| Idadi ya vifaa vyenye chaneli ya vigezo (mfumo wa muda wa IEC 61131) | max. 126 |
Maelezo ya Bidhaa
Remote field controller with 3x10/100 Ethernet, INTERBUS master, PROFINET controller, PROFINET device, IP20 protection degree, pluggable parameterization memory
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
