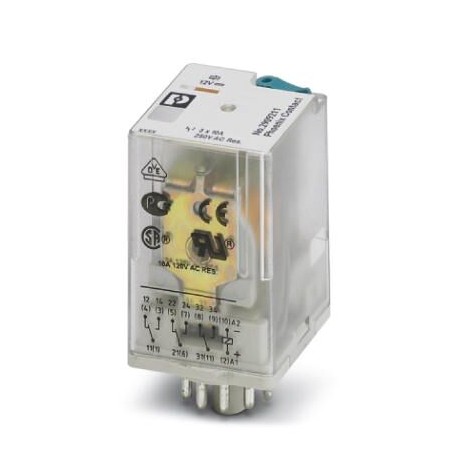

REL-OR3/LDP-12DC/3X21
REL-OR3/LDP-12DC/3X21 2909211 PHOENIX CONTACT Plug-in octal relays with power contacts, 3 changeover contact..
$0.00USD
4667 kwenye hisa
Vipimo Muhimu
GTIN:4055626360218
Ufunguo wa kuagiza:2909211
(Michoro):Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed.
(Upande wa koili):2500 VA (for 250 V AC)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626360218 |
| Ufunguo wa kuagiza | 2909211 |
| (Michoro) | Do not use to separate SELV / PELV circuits from other circuits, because safe isolation is not guaranteed. |
| (Upande wa koili) | 2500 VA (for 250 V AC) |
| Kina (Dokezo) | 54.4 mm |
| Kitengo cha kufungasha | 1 |
| Upana (Dokezo) | 35 mm |
| (Vipimo) | ≥ IP54 (Installation location) |
| Urefu (Dokezo) | 35 mm |
| Dokezo (Michoro) | The outputs are not suitable for switching different outer conductors. |
| ETIM 2.0 (eCl@ss) | EC001437 |
| ETIM 3.0 (eCl@ss) | EC001437 |
| ETIM 4.0 (eCl@ss) | EC001437 |
| ETIM 5.0 (eCl@ss) | EC001437 |
| ETIM 6.0 (eCl@ss) | EC001437 |
| ETIM 7.0 (eCl@ss) | EC001437 |
| (Data ya muunganisho) | IEC 61810 |
| Nambari ya ushuru maalum | 85364190 |
| Aina ya mguso (Upande wa koili) | 3 PDTs |
| Mbinu ya muunganisho (Jumla) | Plug connection |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Nyenzo ya mguso (Upande wa koili) | AgNi |
| Insulation (Data ya muunganisho) | Basic insulation |
| eCl@ss 5.0 (Uainishaji) | 27371601 |
| eCl@ss 5.1 (Uainishaji) | 27371601 |
| eCl@ss 6.0 (Uainishaji) | 27371601 |
| eCl@ss 7.0 (Uainishaji) | 27371601 |
| eCl@ss 8.0 (Uainishaji) | 27371601 |
| eCl@ss 9.0 (Uainishaji) | 27371601 |
| Urefu wa juu zaidi (Vipimo) | ≤ 2000 m |
| Hali ya uendeshaji (Upande wa mguso) | 100% operating factor |
| Nafasi ya kupachika (Upande wa mguso) | any |
| Kiwango cha ulinzi (Vipimo) | RT I |
| Kiwango cha juu cha mkondo wa kukimbilia (Upande wa koili) | 30 A (20 ms, N/O contacts) |
| Kiwango cha chini cha ubadilishaji wa mkondo (Upande wa koili) | 10 mA (at 24 V) |
| Pollution degree (Connection data) | 3 |
| Aina ya mguso wa swichi (Upande wa koili) | Single contact |
| Onyesho la hali (Hali ya mazingira) | Yellow LED |
| Volti ya jaribio PDT/PDT (Upande wa mguso) | 2.5 kVrms(50 Hz, 1 min.) |
| Upinzani wa koili (Hali ya mazingira) | 110 Ω ±10 % |
| Volti ya juu zaidi ya kubadili (Upande wa koili) | 250 V DC |
| Volti ya chini kabisa ya kubadili (Upande wa koili) | 10 V (At 24 mA) |
| Volti ya kuongezeka iliyokadiriwa (Data ya muunganisho) | 4 kV |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Muda wa huduma ya mitambo (Upande wa mawasiliano) | approx. 2x 107cycles |
| Kategoria ya volteji kupita kiasi (Data ya muunganisho) | III |
| Kupunguza mkondo unaoendelea (Upande wa Coil) | 10 A |
| Mzunguko wa kinga (Hali ya mazingira) | Damping diode |
| Viwango/kanuni (Data ya muunganisho) | IEC 60664 |
| DiagramElectrical service life (Drawings) | |
| DiagramOperating voltage range (Drawings) | |
| Muda wa kawaida wa kutolewa (Hali ya mazingira) | 20 ms |
| Mzigo wa injini kulingana na UL 508 (upande wa koili) | 1/2 HP, 240 V AC (N/O contact) |
| Volti ya insulation iliyokadiriwa (Data ya muunganisho) | 250 V AC |
| Muda wa kawaida wa majibu (Hali za mazingira) | 18 ms |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 70 °C |
| Volti ya kuingiza ya nominella UN (Hali za mazingira) | 12 V DC |
| Aina ya volteji kwa ajili ya uanzishaji (Hali za mazingira) | DC |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa (Hali ya Mazingira) | 112 mA |
| Ukadiriaji wa kukatiza (mzigo wa ohmic) upeo. (Upande wa koili) | 240 W (at 24 V DC) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 85 °C |
| Jaribio la mgusano wa vilima/mgusano wa relay ya volteji (Upande wa mgusano) | 2.5 kVrms(50 Hz, 1 min.) |
| Usambazaji wa umeme kwa hali ya kawaida (Hali za mazingira) | 1.44 W |
Maelezo ya Bidhaa
Plug-in octal relays with power contacts, 3 switches, test key, free-flowing diode, mechanical switching position indication, polarity A1+, A2-, input voltage: 12 V DC
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
DiagramOperating voltage range
