REL-FO/LD-110DC/2X21/MS

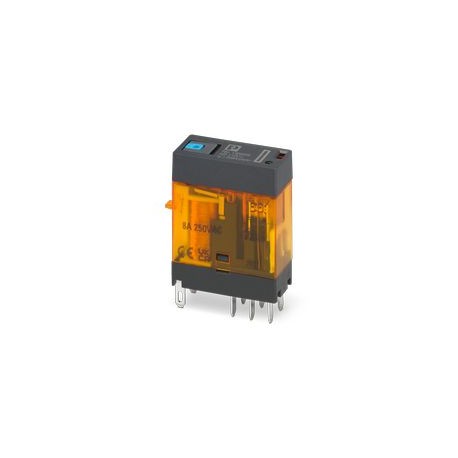

REL-FO/LD-110DC/2X21/MS 1308326 PHOENIX CONTACT Plug-in miniature relay with mechanical switching position i..
$3.13USD
3234 kwenye hisa
Vipimo Muhimu
:240 W (30 V DC)
Kina:34 mm
Upana:13 mm
Urefu:≤ 2000 m
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 240 W (30 V DC) | |
| Kina | 34 mm |
| Upana | 13 mm |
| Urefu | ≤ 2000 m |
| Jumla | Do not use to separate SELV/PELV circuits from other circuits, because safe isolation is not guaranteed. (applies to the optocoupler variants) |
| Insulation | Basic insulation |
| Aina ya reli | Electromechanical relay |
| Aina ya bidhaa | Single relay |
| Hali ya uendeshaji | 100% operating factor |
| Familia ya bidhaa | ESSENTIAL edition |
| Onyesho la hali | Yellow LED |
| Upinzani wa koili | 18870 Ω ±10 % |
| Volti ya majaribio () | 1 kVrms(50 Hz, 1 min., open contact) |
| Nyenzo ya mawasiliano | AgSnO |
| Hifadhi (polari) | polarized |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mbinu ya muunganisho | FASTON connection |
| AWG ya sehemu mtambuka | (converted acc. to IEC) |
| Nafasi ya kupachika | any |
| Hifadhi na kazi | monostable |
| Mzunguko wa kinga | Freewheeling diode |
| Kiwango cha volteji ya kuingiza | 77 V DC ... 121 V DC |
| Volti ya kuongezeka iliyokadiriwa | 2.5 kV |
| Kategoria ya volteji nyingi | II |
| Muda wa kawaida wa kutolewa | 9 ms |
| Viwango/kanuni | IEC 61810-1 |
| Muda wa kawaida wa majibu | 9 ms |
| Aina ya ubadilishaji wa mguso | 2 changeover contacts |
| Kiwango cha juu cha mkondo wa kukimbilia | 16 A (20 ms, N/O contacts) |
| Aina ya mguso wa swichi | Single contact |
| Mkondo wa kukimbilia, kiwango cha chini kabisa | 10 mA (5 V) |
| Maisha ya huduma ya mitambo | approx. 5x 107cycles |
| Volti ya pembejeo ya kawaida ya UN | 110 V DC |
| Volti ya insulation iliyokadiriwa | 250 V AC |
| Volti ya juu zaidi ya kubadili | 250 V AC/DC |
| Volti ya chini kabisa ya kubadili | 5 V (10 mA) |
| Kupunguza mkondo unaoendelea | 8 A |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa | 6 mA |
| Kiwango cha ulinzi (Relay) | RT II (Relay) |
| Usambazaji wa nguvu ya kuingiza kwa Umoja wa Mataifa | 0.66 W |
| Volti ya majaribio (Kuzungusha/kugusa) | 5 kVrms(50 Hz, 1 min., winding/contact) |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 70 °C |
| Kiwango cha juu cha ukadiriaji wa kukatiza (mzigo wa ohmic). | 192 W (24 V DC) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Kiwango cha ulinzi (Mahali pa ufungaji) | IP54 (Installation location) |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 0.73 W |
| Volti ya majaribio (Mguso wa kubadilisha/mguso wa kubadilisha) | 3 kVrms(50 Hz, 1 min., changeover contact/changeover contact) |
Maelezo ya Bidhaa
Plug-in miniature relay with mechanical switching position indicator, FASTON connection, 2 switching contacts, status indication: yellow LED, Free-flowing diode, RC module, Input voltage: 110 VDC
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
