QUINT4-PS/1AC/12DC/2.5/PT

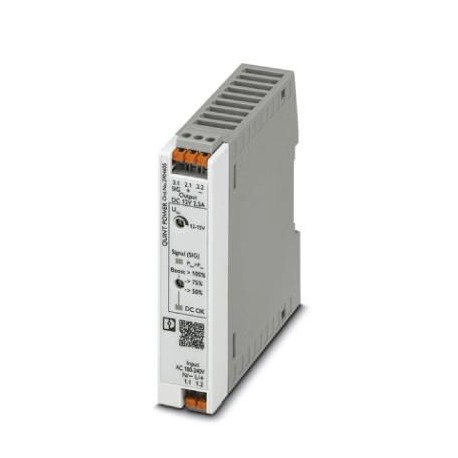

QUINT4-PS/1AC/12DC/2.5/PT 2904605 PHOENIX CONTACT Primary-switched power supply unit, QUINT POWER, Push-in c..
$0.00USD
4520 kwenye hisa
Vipimo Muhimu
GTIN:4055626255736
Ufunguo wa kuagiza:2904605
(Michoro):
(Viwango):ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626255736 |
| Ufunguo wa kuagiza | 2904605 |
| (Michoro) | |
| (Viwango) | ANSI/UL 121201 Class I, Division 2, Groups A, B, C, D (Hazardous Location) |
| Ukurasa wa katalogi | Page 252 (C-4-2019) |
| Kitengo cha kufungasha | 1 pc |
| (Data ya kuingiza) | < 3 W (230 V AC) |
| (Data ya matokeo) | > 459000 h (60 °C) |
| SIQ (Standards) | CB-Scheme (IEC 61010-1, IEC 61010-2-201) |
| Kina (Michoro) | 90 mm |
| Upana (Michoro) | 22.5 mm |
| Nchi ya asili | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC002540 |
| ETIM 6.0 (eCl@ss) | EC002540 |
| ETIM 7.0 (eCl@ss) | EC002540 |
| Urefu (Michoro) | 106 mm |
| Mchoro (Michoro) | |
| UNSPSC 13.2 (ETIM) | 39121004 |
| UNSPSC 18.0 (ETIM) | 39121004 |
| UNSPSC 19.0 (ETIM) | 39121004 |
| UNSPSC 20.0 (ETIM) | 39121004 |
| UNSPSC 21.0 (ETIM) | 39121004 |
| Nambari ya ushuru maalum | 85044030 |
| (Hali ya mazingira) | typ. 54 ms (230 V AC) |
| (Conformance/approvals) | 1 kV (symmetrical) |
| Mchoro wa vitalu (Michoro) | |
| Ufanisi (Data ya matokeo) | typ. 89.5 % (120 V AC) |
| Uzito halisi (Data ya matokeo) | 0.181 kg |
| UL approvals (Standards) | UL Listed UL 61010-1 |
| Nguvu ya kutoa (Data ya kuingiza) | 30 W |
| Urefu wa kukatwa (Jumla) | 10 mm |
| Darasa la hali ya hewa (Vipimo) | 3K3 (in acc. with EN 60721) |
| Mbinu ya muunganisho (Jumla) | Push-in connection |
| Mabaki ya wimbi (Data ya kuingiza) | < 30 mVPP(with nominal values) |
| eCl@ss 5.1 (Uainishaji) | 27242213 |
| eCl@ss 6.0 (Uainishaji) | 27049000 |
| eCl@ss 7.0 (Uainishaji) | 27049002 |
| eCl@ss 8.0 (Uainishaji) | 27049002 |
| eCl@ss 9.0 (Uainishaji) | 27040701 |
| I/O/S (Conformance/approvals) | asymmetrical |
| Input (Conformance/approvals) | 2 kV (symmetrical) |
| Mkengeuko wa udhibiti (Data ya kuingiza) | < 0.2 % (Static load change 10 % ... 90 %) |
| Output (Conformance/approvals) | 1 kV (Test Level 3 - symmetrical) |
| Darasa la ulinzi (Data ya matokeo) | II |
| Signal (Conformance/approvals) | 0.5 kV (Test Level 2 - symmetrical) |
| Flicker (Conformance/approvals) | EN 61000-3-3 |
| Fuse ya kuingiza (Hali ya mazingira) | 3.15 A (slow-blow, internal) |
| Voltage (Conformance/approvals) | 1 kV (symmetrical) |
| (Data ya muunganisho kwa ajili ya kuashiria) | IEC 61010-2-201 (PELV) |
| Comments (Conformance/approvals) | Criterion A |
| Kiwango cha uchafuzi (Vipimo) | 2 |
| Urefu wa usakinishaji (Vipimo) | ≤ 5000 m (> 2000 m, observe derating) |
| Muunganisho katika mfululizo (Data ya kuingiza) | yes |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Frequency (Conformance/approvals) | 60 Hz |
| Kiwango cha ulinzi (Data ya matokeo) | IP20 |
| Muda wa kawaida wa majibu (Data ya kuingiza) | 500 ms |
| Muunganisho sambamba (Data ya kuingiza) | Yes, for redundancy and increased capacity |
| Criterion A (Conformance/approvals) | Normal operating behavior within the specified limits. |
| Criterion B (Conformance/approvals) | Temporary impairment to operational behavior that is corrected by the device itself. |
| Criterion C (Conformance/approvals) | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
| Mkondo wa kukimbilia (Hali ya mazingira) | typ. 11.3 A (at 25 °C) |
| Volti ya pato la kawaida (Data ya kuingiza) | 12 V DC |
| Voltage dip (Conformance/approvals) | 0 % |
| Test level 1 (Conformance/approvals) | 16.67 Hz 50 Hz 60 Hz 150 Hz 180 Hz (Test Level 3) |
| Test level 2 (Conformance/approvals) | 16.67 Hz 50 Hz 60 Hz (Test Level 2) |
| Voltage dips (Conformance/approvals) | EN 61000-4-11 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 240.000 g |
| Noise emission (Conformance/approvals) | EN 55016 |
| Additional text (Conformance/approvals) | Test Level 2 |
| Kuongeza Nguvu (IDyn.Boost) (Data ya kuingiza) | 4.5 A (≤ 60 °C (5 s)) |
| Frequency range (Conformance/approvals) | 0.15 MHz ... 80 MHz |
| Kuongeza Tuli (IStat.Boost) (Data ya kuingiza) | 3.125 A (≤ 40 °C) |
| Aina ya ulinzi (Hali ya mazingira) | Transient surge protection |
| Matumizi ya sasa (Hali ya mazingira) | 0.44 A (100 V AC) |
| Discharge in air (Conformance/approvals) | 15 kV (Test Level 4) |
| Feedback voltage resistance (Input data) | ≤ 25 V DC |
| Kiwango cha volteji ya kuingiza (Hali za mazingira) | 100 V AC ... 240 V AC -15 % ... +10 % |
| MTBF (IEC 61709, SN 29500) (Data ya matokeo) | > 1848000 h (25 °C) |
| Mkondo wa pato la nominella (IN) (Data ya kuingiza) | 2.5 A |
| Contact discharge (Conformance/approvals) | 8 kV (Test Level 4) |
| Frequency range (fN) (Ambient conditions) | 50 Hz ... 60 Hz -10 % ... +10 % |
| Harmonic currents (Conformance/approvals) | EN 61000-3-2 |
| Muda wa kubakiza sehemu kuu (Hali ya mazingira) | typ. 54 ms (120 V AC) |
| Number of periods (Conformance/approvals) | 0.5 / 1 / 5 / 50 periods |
| Kiwango cha juu cha upotezaji wa nguvu. (Data ya kuingiza) | < 3.5 W (120 V AC) |
| Urefu wa kuondoa (Data ya muunganisho, ingizo) | 10 mm |
| Sehemu ya juu ya kondakta AWG. (Jumla) | 14 |
| Sehemu ya msalaba ya kondakta AWG dakika. (Jumla) | 24 |
| Mbinu ya muunganisho (Data ya muunganisho, ingizo) | Push-in connection |
| Urefu wa kuondoa (Data ya muunganisho, matokeo) | 10 mm |
| Mbinu ya muunganisho (Data ya muunganisho, matokeo) | Push-in connection |
| Test field strength (Conformance/approvals) | 1000 A/m |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 70 °C (> 60 °C Derating: 2.5 %/K) |
| Upeo wa juu wa sehemu nzima ya kondakta. (Jumla) | 2.5 mm² |
| Sehemu nzima ya kondakta dakika 1. (Jumla) | 0.2 mm² |
| Chaji ya mkondo kwa PE (Hali ya mazingira) | < 0.25 mA (264 V AC, 60 Hz) |
| Ingizo/matokeo ya volteji ya insulation (Data ya matokeo) | 4 kV AC (type test) |
| Matumizi ya nguvu ya kawaida (Hali ya mazingira) | 32.8 VA |
| Sehemu ya juu inayonyumbulika ya kondakta. (Jumla) | 2.5 mm² |
| Sehemu ya msalaba ya kondakta yenye sehemu ndogo inayonyumbulika (Jumla) | 0.2 mm² |
| Electrostatic discharge (Conformance/approvals) | EN 61000-4-2 |
| Fast transients (burst) (Conformance/approvals) | EN 61000-4-4 |
| Conducted noise emission (Conformance/approvals) | EN 55016 |
| Nguvu ya juu zaidi ya dielectric (Hali ya mazingira) | 300 V AC 60 s |
| Electromagnetic HF field (Conformance/approvals) | EN 61000-4-3 |
| Mzunguko/kipengele cha kinga (Hali ya mazingira) | Varistor |
| Pulse-shape magnetic field (Conformance/approvals) | EN 61000-4-9 |
| Surge voltage load (surge) (Conformance/approvals) | EN 61000-4-5 |
| Attenuated oscillating wave (Conformance/approvals) | EN 61000-4-18 |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 85 °C |
| Electromagnetic compatibility (Conformance/approvals) | Conformance with EMC Directive 2014/30/EU |
| Kiwango cha kuweka cha volteji ya kutoa (USet) (Data ya kuingiza) | 12 V DC ... 15 V DC (constant capacity) |
| Sehemu mtambuka ya kondakta AWG upeo. (Data ya muunganisho, ingizo) | 14 |
| Sehemu ya chini ya AWG ya kondakta (Data ya muunganisho, ingizo) | 24 |
| Kiwango - Utenganishaji Salama (Data ya muunganisho kwa ajili ya kuashiria) | IEC 61558-2-16 |
| Sehemu mtambuka ya kondakta AWG upeo. (Data ya muunganisho, matokeo) | 14 |
| Sehemu ya msalaba ya kondakta AWG ya chini. (Data ya muunganisho, matokeo) | 24 |
| Upeo wa juu wa sehemu nzima ya kondakta. (Data ya muunganisho, ingizo) | 2.5 mm² |
| Dakika dhabiti ya sehemu nzima ya kondakta. (Data ya muunganisho, ingizo) | 0.2 mm² |
| Kiwango cha juu cha unyevu kinachoruhusiwa (utendaji) (Vipimo) | ≤ 95 % (at 25 °C, non-condensing) |
| Usambazaji wa nguvu ya juu zaidi katika hali isiyo na mzigo (Data ya kuingiza) | < 0.4 W (230 V AC) |
| Upeo wa juu wa sehemu nzima ya kondakta. (Data ya muunganisho, matokeo) | 2.5 mm² |
| Dakika dhabiti ya sehemu nzima ya kondakta. (Data ya muunganisho, matokeo) | 0.2 mm² |
| Recommended breaker for input protection (Ambient conditions) | 6 A ... 16 A (Characteristic B, C or comparable) |
| Sehemu nzima ya kondakta ina uwezo wa kunyumbulika wa juu zaidi. (Data ya muunganisho, ingizo) | 2.5 mm² |
| Kiwango cha chini kinachonyumbulika cha sehemu nzima ya kondakta (Data ya muunganisho, ingizo) | 0.2 mm² |
| Sehemu nzima ya kondakta ina uwezo wa kunyumbulika wa juu zaidi. (Data ya muunganisho, matokeo) | 2.5 mm² |
| Kiwango cha chini kinachonyumbulika cha sehemu nzima ya kondakta (Data ya muunganisho, matokeo) | 0.2 mm² |
| Protection against overvoltage at the output (OVP) (Input data) | ≤ 18 V DC |
| Kiwango - Usalama wa transfoma (Data ya muunganisho kwa ajili ya kuashiria) | EN 61558-2-16 |
| Asymmetrical conducted disturbance variables (Conformance/approvals) | EN 61000-4-16 |
| Kiwango - Usalama wa volteji ya chini sana (Data ya muunganisho kwa ajili ya kuashiria) | IEC 61010-1 (SELV) |
| Attenuated sinusoidal oscillations (ring wave) (Conformance/approvals) | EN 61000-4-12 |
| Kiwango - Kikomo cha mikondo ya harmonic ya mtandao mkuu (Data ya muunganisho kwa ajili ya kuashiria) | EN 61000-3-2 |
| Standard - safety for equipment for measurement, control, and laboratory use (Connection data for signaling) | IEC 61010-1 |
Maelezo ya Bidhaa
Primary switching power supplies, QUINT POWER, Push-in connection, Rail mounting, input:1phase, output: 12 VDC / 2.5 A
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Block diagram
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
