Q 1,5/4A50/16-M25KU-ESA

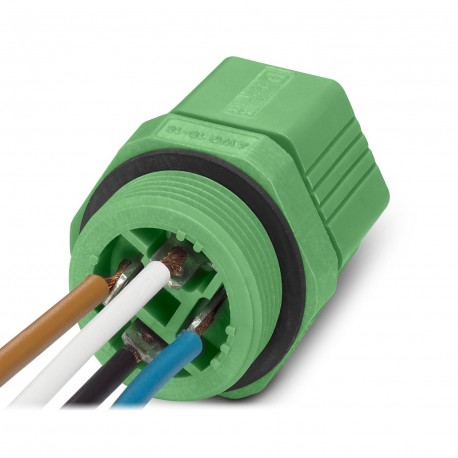

Q 1,5/4A50/16-M25KU-ESA 1640744 PHOENIX CONTACT Panel feed-through
$0.00USD
3382 kwenye hisa
Vipimo Muhimu
:2 WH
Upana:27 mm
Urefu:41.2 mm
Imehifadhiwa:no
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 2 WH | |
| Upana | 27 mm |
| Urefu | 41.2 mm |
| Imehifadhiwa | no |
| Urefu wa kebo | 0.5 m |
| Aina ya bidhaa | Panel feed-through |
| Dokezo la mkutano | If the conductor is reconnected, it must be cut off above the last contact point. QUICKON components may only be operated when under no load. |
| Aina ya kupachika | Front mounting M25 |
| Imekadiriwa mkondo | 17.5 A |
| Rangi (Nyumba) | green (RAL 6021) |
| Nguvu ya athari | IK07 |
| Nyenzo ya mawasiliano | Copper alloy |
| Nyumba ya Nyenzo | PA |
| Kuashiria nafasi | 1, 2, 3, 4 |
| Upinzani wa mguso | < 3 mΩ |
| Mkondo wa nominella IN | 17.5 A |
| Volti ya kawaida ya Umoja wa Mataifa | 250 V AC |
| Sehemu ya msalaba wa kebo | 1.5 mm² |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Idadi ya nafasi | 4 |
| Kiwango cha ulinzi | IP65 |
| Kategoria ya volteji nyingi | III |
| volteji iliyokadiriwa (II/2) | 630 V (with insulating sleeve) |
| Idadi ya miunganisho | 4 |
| Volti iliyokadiriwa (III/3) | 250 V (with insulating sleeve) |
| Ukubwa wa bisibisi Nati ya muungano | 27 mm |
| volteji iliyokadiriwa (III/2) | 320 V (with insulating sleeve) |
| Kipenyo cha kebo ya nje | 6 mm ... 12 mm |
| Nyenzo za mawasiliano | PA 6.6 |
| Nyenzo ya uso wa mguso | Pre-nickel plated and tin-plated |
| Uzuiaji wa waya wa nyenzo | PVC / PE |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 6 kV |
| Kukaza torque Nati ya Muungano | 3.3 Nm |
| Ukubwa wa bisibisi Mtoa huduma wa mawasiliano | 30 mm |
| Sehemu ya muunganisho AWG | 18 ... 16 |
| Sehemu ngumu ya kondakta | 0.75 mm² ... 1 mm² |
| Nati ya kufunga ya kukaza torque | 5 Nm |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 80 °C (specifications of the cable manufacturer must also be observed) |
| kondakta sehemu ya msalaba flexibel | 0.75 mm² ... 1.5 mm² |
| Idadi ya miunganisho kwa kila nafasi | 1 |
| Kipenyo cha waya ikijumuisha insulation | 1.8 mm ... 3 mm |
| Mbinu ya muunganisho Upande wa kifaa | Single wires |
| Halijoto wakati kondakta ameunganishwa | -5 °C ... 50 °C (specifications of the cable manufacturer must also be observed) |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Rangi ya Mguso (utambulisho wa ishara) Mguso (hiari) | 1 BN |
| Mara kwa mara ya miunganisho kati ya kondakta wa sehemu hiyo hiyo ya msalaba | 10 (if the conductor is connected more than once, seal and cap may need to be replaced.) |
| Muundo wa litz ya mtu binafsi katika acc. yenye VDE 0295 / kipenyo kidogo zaidi cha waya | VDE 0295 Cl.2-5, min. wire diameter 0.2 mm |
Maelezo ya Bidhaa
External passage, with 1.5 mm² conductor outlet and 0.5 m conductor, connection thread: M25, 4-pole
