PTFIX 6X2,5-NS35 RD

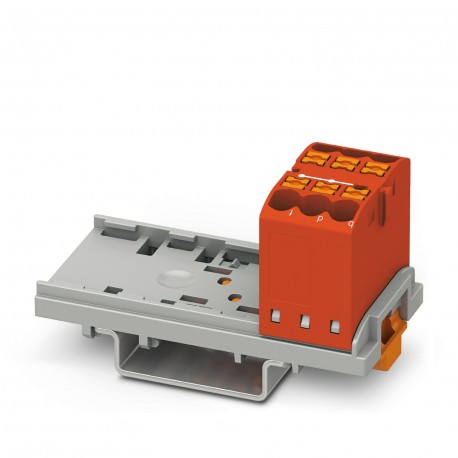

PTFIX 6X2,5-NS35 RD 3273004 PHOENIX CONTACT Distribution block
$0.00USD
3151 kwenye hisa
Vipimo Muhimu
:For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block.
Dokezo:The maximum load current of a single clamping unit must not be exceeded.
Rangi:red (RAL 3001)
Upana:28.6 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. | |
| Dokezo | The maximum load current of a single clamping unit must not be exceeded. |
| Rangi | red (RAL 3001) |
| Upana | 28.6 mm |
| Urefu | 58.1 mm |
| Matokeo | Test passed |
| Spektramu | Service life test category 2, bogie-mounted |
| Kiwango cha ASD | 6.12 (m/s²)²/Hz |
| Masafa | f1= 5 Hz to f2= 250 Hz |
| Uwezo | 1 |
| Umbo la mapigo | Half-sine |
| Mapinduzi | 135 |
| Kuongeza kasi | 3.12g |
| Aina ya bidhaa | Distributor terminal block |
| Aina ya kupachika | NS 35/7,5 |
| Vipimo | DIN EN 50155 (VDE 0115-200):2008-03 |
| Idadi ya safu mlalo | 1 |
| Kasi ya mzunguko | 10 rpm |
| Muda wa mshtuko | 18 ms |
| Kina cha NS 15 | 30.4 mm |
| Mkondo wa nominella | 24 A |
| Volti ya kawaida | 690 V |
| Fungua paneli ya pembeni | No |
| Maelekezo ya majaribio | X-, Y- and Z-axis |
| Marekebisho ya makala | 03 |
| Urefu wa kukatwa | 8 mm ... 10 mm |
| Muda wa kuambukizwa | 30 s |
| AWG ya sehemu mtambuka | 26 ... 12 (converted acc. to IEC) |
| Maelezo kuhusu uendeshaji | the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories |
| Mizunguko ya halijoto | 192 |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Kina kwenye NS 35/7,5 | 32.4 mm |
| Nyenzo za kuhami joto | PA |
| Volti ya kuongezeka iliyokadiriwa | 8 kV |
| Sehemu ya kuweka nguvu ya jaribio | 1 N |
| Kiwango cha juu cha mzigo wa sasa | 32 A |
| Kategoria ya volteji nyingi | III |
| Jumla ya juu ya mkondo | 48 A |
| Sehemu ya msalaba ya nominella | 2.5 mm² |
| Idadi ya miunganisho | 6 |
| Mpangilio wa volteji ya jaribio | 9.8 kV |
| Muda wa jaribio kwa kila mhimili | 5 h |
| Usaidizi wa reli/urekebishaji wa DIN | NS 35 |
| Imekadiriwa sehemu nzima ya AWG | 14 |
| Kikundi cha nyenzo za kuhami joto | I |
| Kipimo cha ndani cha silinda | A3 |
| Sehemu ngumu ya kondakta | 0.14 mm² ... 4 mm² |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 70 °C |
| Sehemu/uzito wa kondakta | 0.14 mm² / 0.2 kg |
| Idadi ya mishtuko kwa kila mwelekeo | 3 |
| Halijoto ya kawaida (utendaji) | -5 °C ... 70 °C |
| Halijoto ya mazingira (uendeshaji) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Idadi ya miunganisho kwa kila ngazi | 6 |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.14 mm² ... 2.5 mm² |
| Muunganisho katika acc. na kiwango cha kawaida | IEC 60947-7-1 |
| Unyevu unaoruhusiwa (uendeshaji) | 20 % ... 90 % |
| Jaribio la kupanda kwa joto linalohitajika | Increase in temperature ≤ 45 K |
| Mkondo wa kuhimili wa muda mfupi wa 4 mm² | 0.48 kA |
| Sehemu ya msalaba ya kondakta, ngumu [AWG] | 24 ... 12 (converted acc. to IEC) |
| Mkondo wa kuhimili kwa muda mfupi 2.5 mm² | 0.3 kA |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Sehemu ya msalaba ya kondakta, inayonyumbulika [AWG] | 26 ... 14 (converted acc. to IEC) |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) | 30 % ... 70 % |
| Matumizi ya nyenzo za kuhami tuli katika baridi | -60 °C |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 0.77 W |
| Sehemu ya msalaba ya kondakta inayonyumbulika (kipete chenye mkono wa plastiki) | 0.14 mm² ... 2.5 mm² |
| Kiashiria cha halijoto ya nyenzo za kuhami joto (Elec., UL 746 B) | 125 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika (kipete bila kifuniko cha plastiki) | 0.14 mm² ... 2.5 mm² |
| Kiashiria cha halijoto cha nyenzo za kuhami joto (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
Maelezo ya Bidhaa
Distribution block, Vertically aligned block, rated voltage: 690 V, rated current: 24 A, number of connections: 6, connection type: Push-in connection, cross-section: 0.14 mm² - 4 mm², mounting class:
