PTFIX 6X1,5 RD

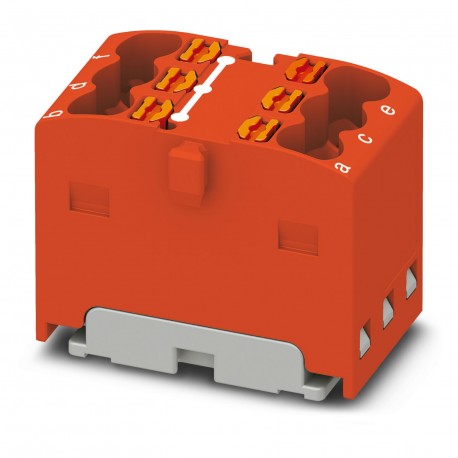

PTFIX 6X1,5 RD 3002765 PHOENIX CONTACT Distribution block
$0.00USD
4822 kwenye hisa
Vipimo Muhimu
:For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block.
Dokezo:When aligning several blocks, it is recommended to either place a DIN rail adapter underneath the connection point or a flange element between the blocks.
Rangi:red (RAL 3001)
Kina:17.7 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| For versions with 6 or 7 connections, it is enough to place one DIN rail adapter centrally per block and place flange elements after every other block. | |
| Dokezo | When aligning several blocks, it is recommended to either place a DIN rail adapter underneath the connection point or a flange element between the blocks. |
| Rangi | red (RAL 3001) |
| Kina | 17.7 mm |
| Upana | 12.5 mm |
| Urefu | 21.6 mm |
| Matokeo | Test passed |
| Uwezo | 1 |
| Aina ya bidhaa | Distributor terminal block |
| Aina ya kupachika | for snapping onto a DIN rail adapter |
| Idadi ya safu mlalo | 1 |
| Mkondo wa nominella | 17.5 A |
| Volti ya kawaida | 450 V |
| Fungua paneli ya pembeni | No |
| Marekebisho ya makala | 03 |
| Urefu wa kukatwa | 8 mm ... 10 mm |
| Muda wa kuambukizwa | 30 s |
| AWG ya sehemu mtambuka | 26 ... 14 (converted acc. to IEC) |
| Maelezo kuhusu uendeshaji | the blocks can be bridged with one another via the conductor shaft, for corresponding plug-in bridges, see accessories |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Nyenzo za kuhami joto | PA |
| Volti ya kuongezeka iliyokadiriwa | 6 kV |
| Kiwango cha juu cha mzigo wa sasa | 22 A |
| Kategoria ya volteji nyingi | III |
| Jumla ya juu ya mkondo | 26 A |
| Sehemu ya msalaba ya nominella | 1.5 mm² |
| Idadi ya miunganisho | 6 |
| Usaidizi wa reli/urekebishaji wa DIN | NS 35/NS 15 |
| Imekadiriwa sehemu nzima ya AWG | 14 |
| Kikundi cha nyenzo za kuhami joto | I |
| Kipimo cha ndani cha silinda | A1 / B1 |
| Sehemu ngumu ya kondakta | 0.14 mm² ... 2.5 mm² |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 70 °C |
| Halijoto ya kawaida (utendaji) | -5 °C ... 70 °C |
| Halijoto ya mazingira (uendeshaji) | -60 °C ... 110 °C (Operating temperature range incl. self-heating; for max. short-term operating temperature, see RTI Elec.) |
| Idadi ya miunganisho kwa kila ngazi | 6 |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.14 mm² ... 1.5 mm² |
| Muunganisho katika acc. na kiwango cha kawaida | IEC 60998-2-2 |
| Unyevu unaoruhusiwa (uendeshaji) | 20 % ... 90 % |
| Sehemu ya msalaba ya kondakta, ngumu [AWG] | 26 ... 14 (converted acc. to IEC) |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -25 °C ... 60 °C (for a short time, no longer than 24 h, -60°C to +70°C) |
| Sehemu ya msalaba ya kondakta, inayonyumbulika [AWG] | 26 ... 16 (converted acc. to IEC) |
| Unyevu unaoruhusiwa (uhifadhi/usafiri) | 30 % ... 70 % |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 0.56 W |
| Sehemu ya msalaba ya kondakta inayonyumbulika (kipete chenye mkono wa plastiki) | 0.14 mm² ... 1.5 mm² |
| Sehemu ya msalaba ya kondakta inayonyumbulika (kipete bila kifuniko cha plastiki) | 0.14 mm² ... 1.5 mm² |
Maelezo ya Bidhaa
Distribution block, internally bridged, rated voltage: 450 V, rated current: 17.5 A, number of connections: 6, connection type: Push-in connection, cross-section: 0.14 mm² - 2.5 mm², mounting class: i
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
