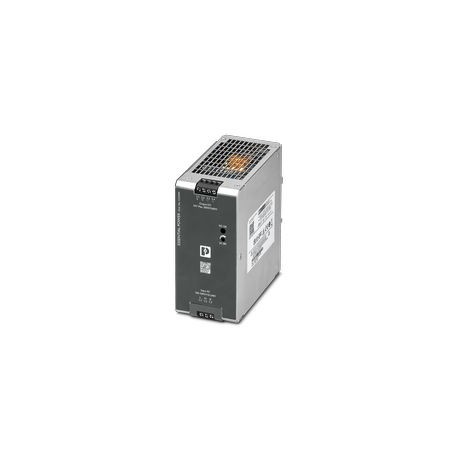

PS-EE-2G/1AC/24DC/240W/SC
PS-EE-2G/1AC/24DC/240W/SC 1234304 PHOENIX CONTACT Primary switching power supplies, ESSENTIAL POWER, Screw c..
$101.36USD
141 kwenye hisa
Vipimo Muhimu
:100 V AC ... 109 V AC -15 % ... +10 % (PN= 200 W)
Muda:23000 h
Rangi:green
Kina:125 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 100 V AC ... 109 V AC -15 % ... +10 % (PN= 200 W) | |
| Muda | 23000 h |
| Rangi | green |
| Kina | 125 mm |
| Ingizo | 4 kV (Test Level 4 - asymmetrical) |
| Upana | 60 mm |
| imara | 0.75 mm² ... 2.5 mm² |
| Urefu | 124 mm |
| Matokeo | 2 kV (Test Level 3 - asymmetrical) |
| Mkondo wa sasa | 10 A |
| LED imezimwa | Supply voltage input AC not present (Off) |
| Volti | 10 V (Test Level 3) |
| Maoni | Criterion A |
| Kazi | Visual operating state display |
| Nafasi | 1.x |
| kunyumbulika | 0.75 mm² ... 2.5 mm² |
| Masafa | 50 Hz |
| Wakati wa kupanda | < 100 ms (UOut= 10 % ... 90 %) |
| EN 61010-1 | II (≤ 3000 m) |
| Ufanisi | typ. 91 % (120 V AC) |
| Kigezo A | Normal operating behavior within the specified limits. |
| Kigezo B | Temporary impairment to operational behavior that is corrected by the device itself. |
| Kigezo C | Temporary adverse effects on the operating behavior, which the device corrects automatically or which can be restored by actuating the operating elements. |
| Halijoto | 40 °C |
| Kushuka kwa volteji | 70 % |
| imara (AWG) | 18 ... 14 (Cu) |
| Kipengele cha ganda | typ. 1.5 (120 V AC) |
| Toleo la kofia | Stainless steel |
| Ingizo/Towe | asymmetrical |
| Aina ya bidhaa | Power supply |
| Aina ya kupachika | DIN rail mounting |
| Haizuiliwi na mzigo | yes |
| Darasa la hali ya hewa | 3K22 (in accordance with EN 60721-3-3) |
| Utambulisho | 1.1 (), 1.2 (L), 1.3 (N) |
| Mkondo wa ndani | typ. 30 A (at 25 °C) |
| Utoaji wa kelele | EN 55016 |
| Familia ya bidhaa | ESSENTIAL POWER |
| Muda wa kuwasha | typ. 1 s |
| Maandishi ya ziada | 120 V AC |
| Masafa ya masafa | 0 kHz ... 2 kHz |
| Mabaki ya mawimbi | typ. 70 mVPP(with nominal values) |
| Kutokwa hewani | 8 kV (Test Level 3) |
| Nyenzo za makazi | Metal |
| Urefu wa juu zaidi | ≤ 3000 m (> 2000 m, Derating: 10 %/1000 m) |
| Idadi ya awamu | 1.00 |
| Darasa la ulinzi | I |
| Urefu wa kukatwa | 6.5 mm |
| Mbinu ya muunganisho | Screw connection |
| Utoaji wa mguso | 6 kV (Test Level 3) |
| Kupotoka kwa udhibiti | < 2 % (change in load, static 10 % ... 90 %) |
| Fuse kuu ya kifaa | 5 A internal (device protection), fast-blow |
| Nafasi ya kupachika | horizontal DIN rail NS 35, EN 60715 |
| Idadi ya vipindi | 25 periods |
| Nguvu ya kutoa (PN) | 240 W (240 V AC) |
| Mshtuko (upasuaji) | 15 ms, 15 g, per spatial direction (IEC 60068-2-27) |
| Kukaza torque | 0.5 Nm ... 0.6 Nm |
| Mzunguko wa kinga | Transient protection; Varistor |
| Aina za ishara | LED DC OK – signal state operation (UN= 24 V DC, IOut= IN) |
| Matumizi ya sasa | max. 3 A (240 W) |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Nyenzo ya kufunga miguu | Sheet steel, zinc-plated |
| Kiwango cha volteji ya kuingiza | 110 V AC ... 240 V AC ±10 % (PN= 240 W) |
| Haipitishi mzunguko mfupi | yes |
| Nguvu ya uwanja wa majaribio | 10 V/m (Test Level 3) |
| Muunganisho katika mfululizo | yes, for increased output voltage |
| Kiwango cha ulinzi | IP20 |
| Masafa ya masafa (fN) | 50 Hz ... 60 Hz ±10 % |
| Muda wa kubakiza sehemu kuu | typ. 30 ms (120 V AC) |
| Toleo la kipengele cha pembeni | Aluminum |
| Uteuzi wa kawaida | Electrical safety |
| Maagizo ya kusanyiko | alignable: 0 mm horizontally, 30 mm vertically |
| Kichwa cha skrubu cha umbo la gari | Slotted L |
| Uchafuzi wa kuingiliwa | Interference emission in accordance with EN 61000-6-3 (residential and commercial) and EN 61000-6-4 (industrial) |
| LED imewashwa (kijani), DC Sawa | UOUT> 11 V (On (green), DC OK) |
| Maelekezo ya Volti ya Chini | Conformance with Low Voltage Directive 2014/35/EC |
| Viwango/kanuni | EN 61000-3-2 |
| Mtetemo (uendeshaji) | 10 Hz ... 50 Hz, amplitude ±0.2 mm |
| Muunganisho sambamba | yes, for increasing power and redundancy with diode |
| Volti ya pato la kawaida | 24 V DC |
| Chaji ya mkondo kwa PE | < 3.5 mA |
| MTBF (Telcordia SR-332) | > 1170000 h (25 °C) |
| Na mipako ya kinga | No |
| Utoaji wa kelele unaofanywa | EN 55016 |
| Viwango/vipimo | IEC 61010-2-201 (SELV) |
| Ulinzi jumuishi wa fyuzi | no |
| Upinzani wa volteji ya maoni | ≤ 35 V DC |
| Kiwango cha voltage ya kuingiza kwa majina | 100 V AC ... 240 V AC |
| Mkondo wa pato la nominella (IN) | max. 10 A (PN= 240 W) |
| Usanidi wa mfumo wa usambazaji | TN, TT, IT (PE) |
| Upungufu wa nguvu wa kawaida wa mzigo. | < 20 W (230 V AC) |
| Utangamano wa sumakuumeme | Conformance with EMC Directive 2014/30/EU |
| Kiunganishi cha mkondo wa inrush (I2t) | typ. 0.2 A2s |
| Ingizo la voltage ya insulation / PE | 3.5 kV AC (type test) |
| Volti ya kawaida ya gridi ya taifa | 120 V AC |
| Aina ya voltage ya usambazaji wa voltage | AC |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 70 °C (Derating >45°C: 2.5%/K) |
| Ingizo/matokeo ya volteji ya insulation | 4 kV AC (type test) |
| Umbali wa usakinishaji kulia/kushoto | 10 mm / 10 mm |
| Umbali wa usakinishaji juu/chini | 30 mm / 30 mm |
| Usambazaji wa nguvu usio na mzigo wa juu zaidi | < 3 W (230 V AC) |
| Kiwango cha chini cha uondoaji wa nguvu bila mzigo | < 3 W (120 V AC) |
| Mahitaji ya EMC kwa kinga ya kelele | EN 61000-6-2 |
| Usambazaji mdogo wa nguvu ya mzigo wa kawaida | < 24 W (120 V AC) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Kivunjaji kinachopendekezwa kwa ajili ya ulinzi wa pembejeo | 6 A ... 16 A (Characteristic B, C, D, K or comparable) |
| inayonyumbulika ikiwa na kipete chenye mkono wa plastiki | 0.75 mm² ... 2.5 mm² |
| Kiwango cha kuweka cha voltage ya kutoa (USet) | 24 V DC ... 28 V DC (> 24 V DC, constant capacity restricted) |
| inayonyumbulika na kipete bila kifuniko cha plastiki | 0.75 mm² ... 2.5 mm² |
| Kiwango cha juu cha unyevu kinachoruhusiwa (uendeshaji) | ≤ 95 % (at 25 °C, non-condensing) |
| Ulinzi dhidi ya volteji kupita kiasi kwenye pato (OVP) | ≤ 35 V DC |
Maelezo ya Bidhaa
Primary Switching Power Supplies, ESSENTIAL POWER, Screw Connection, Rail Mount, Input: 1 Phase, Output: 24 V DC / 10 A
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
