PRC 3-FT25-MC6-150

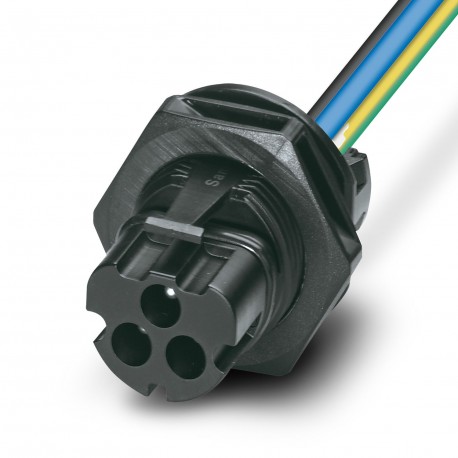

PRC 3-FT25-MC6-150 1409221 PHOENIX CONTACT Device connector, rear mounting
$0.00USD
3505 kwenye hisa
Vipimo Muhimu
:• WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product.
Rangi:black
Upana:34.5 mm
Usimbaji:AD
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| • WARNING: Only electrically qualified personnel may install and operate the product. They must observe the following safety notes. The qualified personnel must be familiar with the basics of electrical engineering. They must be able to recognize and prevent danger. The relevant symbol on the packaging indicates that only personnel familiar with electrical engineering are allowed to install and operate the product. | |
| Rangi | black |
| Upana | 34.5 mm |
| Usimbaji | AD |
| Urefu | 179.5 mm |
| Nyenzo | PPE (Nut) |
| Dokezo la usalama | • WARNING: Commission properly functioning products only. The products must be regularly inspected for damage. Decommission defective products immediately. Replace damaged products. Repairs are not possible. |
| Aina ya uzi | M25 x 1,5 () |
| Urefu wa kebo | 150 mm |
| Haina halojeni | no |
| Aina ya bidhaa | Panel feed-through |
| Kipenyo cha shimo | 25.5 mm |
| Aina ya kupachika | Rear mounting |
| Imekadiriwa mkondo | 35 A (With 6 mm² conductor cross section in accordance with IEC 61984) |
| Nyenzo ya kuziba | Silicon |
| Familia ya bidhaa | PRC 35 |
| Nguvu ya kuvuta nje | 150 N ±50 N |
| Nguvu ya kuingiza | 30 N ±10 N |
| Nyenzo ya pete ya O | Silicon |
| Marekebisho ya makala | 14 |
| Nyenzo ya mawasiliano | Cu alloy |
| Nyenzo za makazi | PPE |
| Darasa la ulinzi | II (double or reinforced insulation) |
| Kukaza torque | 2.5 Nm ±0.1 Nm (Tightening torque nut) |
| Wasifu wa muunganisho | 2+PE |
| Taarifa ya agizo: | This item is also available with other cable lengths. For your specific requirements, please contact your local PHOENIX CONTACT subsidiary. |
| Waya moja, rangi | brown, blue, green/yellow |
| Sehemu ya msalaba wa kebo | 6 mm² |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Mchoro wa vipimo | |
| Volti ya kawaida ATD | 690 V AC (III/2.00) in accordance with IEC 61984 |
| Dokezo kwenye programu | For assembly notes, please refer to the packing slip |
| Idadi ya nafasi | 3 |
| Kiwango cha ulinzi | IP66 / IP68 (2m / 24h) / IP69K |
| Volti iliyokadiriwa (III/2) | 690 V |
| Waya moja, nyenzo | PVC |
| Ukubwa wa bisibisi, nati ya muungano | 32 mm |
| Nyenzo za mawasiliano | PPE |
| Nyenzo ya uso wa mguso | Ag |
| Viwango/vipimo | IEC 61984:2008 |
| Rangi ya sehemu ya makazi | black |
| Kikundi cha nyenzo za kuhami joto | I / CTI 600 |
| Waya moja, sehemu ya msalaba | 6 mm² |
| Mizunguko ya kuingiza/kutoa | 100 |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 8 kV |
| Nyenzo ya kuunganisha skrubu | PPE |
| Halijoto ya kawaida (mkusanyiko) | 5 °C ... 85 °C |
| Kipenyo cha waya ikijumuisha insulation | 4.8 mm ±0.15 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 105 °C (Depending on the current carrying capacity/derating curve) |
| Kiwango cha ulinzi (hakijaunganishwa) | IP65 (Lengthwise waterproofing) |
| Kiwango cha ulinzi (wakati kimeunganishwa) | IP66 / IP68 (2m / 24h) / IP69K |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
Maelezo ya Bidhaa
Conect. plug. to be apar. Wall poster., Family of items: PRC 35, housing material: PPE, color: black, number of poles: 3, max. conductor section: 6 mm², rated voltage: 690 V AC, assigned current: 35 A
