PM-K64P

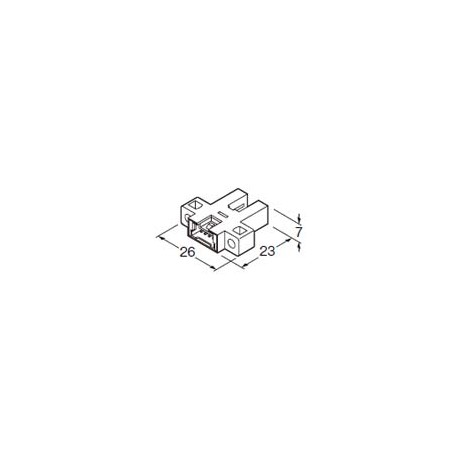

PM-K64P PANASONIC u-shape type, 5mm, PNP, connector
$0.00USD
3861 kwenye hisa
Vipimo Muhimu
Bidhaa:Specifications
Matokeo:PNP open-collector transistorMaximum source current: 50 mAApplied voltage: 30 V DC or less (between output and +V)Residual voltage: 0.7 V or less (at 50 mA source current), 0.4 V or less (at 16 mA source current)
Uzito:Net weight: 3 g approx.
Nyenzo:Enclosure: PBT, Slit cover: Polycarbonate
Taarifa za Msambazaji
PANASONIC
Bidhaa: 4316
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Bidhaa | Specifications |
| Matokeo | PNP open-collector transistorMaximum source current: 50 mAApplied voltage: 30 V DC or less (between output and +V)Residual voltage: 0.7 V or less (at 50 mA source current), 0.4 V or less (at 16 mA source current) |
| Uzito | Net weight: 3 g approx. |
| Nyenzo | Enclosure: PBT, Slit cover: Polycarbonate |
| Hysteresis | 0.05 mm 0.002 in or less(Note) This is the value when a sensing object is moved in a lateral direction to the U-shape. |
| Nambari ya Sehemu | PM-K64P |
| Jina la bidhaa | Connector Built-in U-shaped Micro Photoelectric Sensor[Amplifier Built-in] PM-64(Discontinued) |
| Kurudia | 0.01 mm 0.004 in or less(Note) This is the value when a sensing object is moved in a lateral direction to the U-shape and when the inserting length of the sensing board is 5 mm 0.197 in. |
| Muda wa majibu | Under light received condition: 20 micros or less, Under light interrupted condition: 100 micros or less(Response frequency: 1 kHz or more) |
| Masafa ya kuhisi | 5 mm 0.197 in (fixed) |
| Urefu wa waya | Total length up to 100 m 328.084 ft is possible with 0.3 mm2, or more, cable.(Note) Confirm that the sensor terminal voltage is more than 4.5 V when using an extension of over 20 m 65.617 ft. |
| Nambari ya Bidhaa | PM-K64P |
| Volti ya usambazaji | 5 to 24 V DC plus or minus 10 % Ripple P-P 10 % or less |
| Unyevu wa mazingira | 35 to 85 % RH, Storage: 5 to 95 % RH |
| Kipengee kinachotoa | Infrared LED(Peak emission wavelength: 940 nm 0.037 mil, non-modulated) |
| Upinzani wa mshtuko | 15,000 m/s2 acceleration (1,500 G approx.) in X, Y and Z directions for three times each |
| Mwangaza wa mazingira | Fluorescent light: 1,000 lx at the light-receiving face |
| Halijoto ya mazingira | -25 to +55 degrees -13 to +131degrees Fahrenheit(No dew condensation or icing allowed), Storage: -30 to +80 degrees -22 to +176degrees Fahrenheit |
| Matumizi ya sasa | 15 mA or less |
| Kiashiria cha uendeshaji | Orange LED (lights up under light received condition) |
| Upinzani wa mtetemo | 10 to 2,000 Hz frequency, 1.5 mm 0.059 in amplitude in X, Y and Z directions for two hours each |
| Upinzani wa insulation | 50 MOhm, or more, with 250 V DC megger between all supply terminals connected together and enclosure |
| Kitu cha chini cha kuhisi | 0.8 x 1.8 mm 0.031 x 0.071 in opaque object |
| Matokeo: Operesheni ya matokeo | Incorporated with 2 outputs: Light-ON / Dark-ON |
| Ustahimilivu wa volteji | 1,000 V AC for one min. between all supply terminals connected together and enclosure |
