PLC-TR-1T-MUL-300M

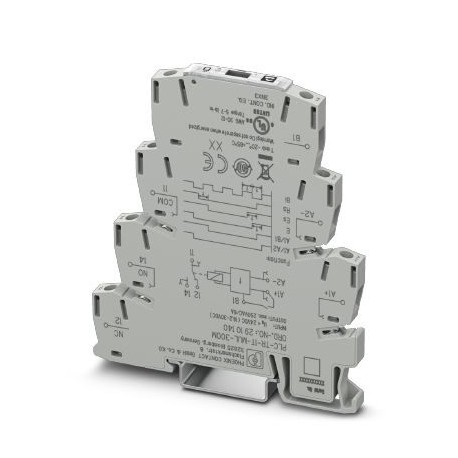

PLC-TR-1T-MUL-300M 2910140 PHOENIX CONTACT Ultra-narrow multi-function time relay with 4 functions, adjustab..
$0.00USD
4411 kwenye hisa
Vipimo Muhimu
Ufunguo wa kuagiza:2910140
(Jumla):5 lbf-in. ... 7 lbf-in.
Ukurasa wa katalogi:Page 262 (C-5-2019)
Kitengo cha kufungasha:1 pc
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Ufunguo wa kuagiza | 2910140 |
| (Jumla) | 5 lbf-in. ... 7 lbf-in. |
| Ukurasa wa katalogi | Page 262 (C-5-2019) |
| Kitengo cha kufungasha | 1 pc |
| (Upande wa mguso) | Yellow LED (relay active) |
| Torque (Jumla) | 0.6 Nm ... 0.8 Nm () |
| Nchi ya asili | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC001439 |
| ETIM 6.0 (eCl@ss) | EC001439 |
| ETIM 7.0 (eCl@ss) | EC001439 |
| (Control contact) | IEC 60947-5-1 |
| Rangi (Upande wa mguso) | traffic grey A RAL 7042 |
| Nambari ya ushuru maalum | 85364900 |
| (Hali ya mazingira) | Bi: Flashing beginning with pulse |
| Fuse ya kutoa (Upande wa koili) | 6.3 A (fast-blow) |
| Aina ya mguso (Upande wa koili) | 1 floating PDT |
| Urefu wa kukatwa (Jumla) | 8 mm |
| Mbinu ya muunganisho (Jumla) | Screw connection |
| Kina (Data Muhimu ya Biashara) | 86 mm |
| Kinga ya kelele (Vipimo) | EN 61000-6-2 |
| Upana (Data Muhimu ya Biashara) | 6.2 mm |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Urefu (Data Muhimu ya Kibiashara) | 80 mm |
| Insulation (Control contact) | Basic insulation |
| eCl@ss 8.0 (Uainishaji) | 27371605 |
| eCl@ss 9.0 (Uainishaji) | 27371605 |
| Kazi (Hali za mazingira) | E: With switch-on delay |
| Urefu wa juu zaidi (Vipimo) | ≤ 2000 m |
| Onyesho la hali (Upande wa mguso) | Green LED (POWER) |
| Nafasi ya kupachika (Upande wa mguso) | any |
| Utoaji wa kelele (Mguso wa kudhibiti) | EN 61000-6-3 |
| Kinga ya kelele (Mguso wa kudhibiti) | EN 61000-6-2 |
| Jina la muunganisho (Data ya muunganisho) | Non-floating, terminals A1-B1 |
| Kiwango cha ulinzi (Vipimo) | IP20 |
| Pollution degree (Control contact) | 2 |
| Muda wa kupona (Hali ya mazingira) | 50 ms |
| Maagizo ya kuunganisha (Upande wa mawasiliano) | on standard DIN rail NS 35 in accordance with EN 60715 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Sehemu ya msalaba ya kondakta AWG (Jumla) | 30 ... 12 |
| Volti ya juu zaidi ya kubadili (Upande wa koili) | 250 V AC |
| Rated surge voltage (Control contact) | 6 kV |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Urefu wa mapigo ya moyo (Data ya muunganisho) | ≥ 50 ms |
| Muda wa huduma ya mitambo (Upande wa mawasiliano) | approx. 2x 107cycles |
| Overvoltage category (Control contact) | III |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Sehemu ngumu ya kondakta (Jumla) | 0.14 mm² ... 2.5 mm² |
| Maelekezo ya Volti ya Chini (Mguso wa kudhibiti) | Conformance with Low Voltage Directive 2014/35/EU |
| Setting range time (Ambient conditions) | 0.1 s ... 300 min. (4 time end ranges) |
| Standards/regulations (Control contact) | IEC 61812-1 |
| Kiwango cha volteji ya kuingiza (Hali za mazingira) | 24 V DC (19.2 V DC ... 30 V DC) |
| Matumizi ya nguvu ya kawaida (Upande wa mguso) | 0.45 W (at 24 V DC) |
| Sehemu ya msalaba ya kondakta inayonyumbulika (Jumla) | 0.14 mm² ... 2.5 mm² |
| Nyenzo ya kuhami joto ya nyumba (Upande wa mguso) | Polyamide PA, self-extinguishing |
| Rated insulation voltage (Control contact) | 300 V AC |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -20 °C ... 65 °C |
| Unyevu unaoruhusiwa (uendeshaji) (Vipimo) | 15 % ... 85 % |
| Utangamano wa sumakuumeme (Mguso wa kudhibiti) | Conformance with EMC Directive 2014/30/EU |
| Unyevu unaoruhusiwa (uendeshaji) (Upande wa mguso) | 15 % ... 85 % |
| Ukadiriaji wa kukatiza (mzigo wa ohmic) upeo. (Upande wa koili) | 1500 VA (6 A / 250 V AC) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -25 °C ... 80 °C |
Maelezo ya Bidhaa
Particularly narrowly designed multifunction timing relay with 4 functions and a configurable time interval (0.1 s to 300 min), 1 inverter, screw connection
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
