PLC-RSC-24DC/ 1IC/ACT

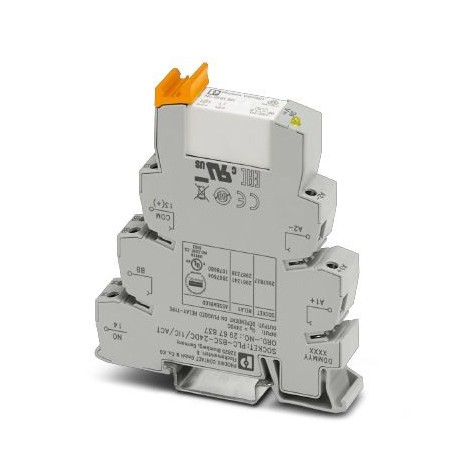

PLC-RSC- 24DC/ 1IC/ACT 2967604 PHOENIX CONTACT Relay Module
$0.00USD
3595 kwenye hisa
Vipimo Muhimu
GTIN:4017918169794
Ufunguo wa kuagiza:2967604
(Jumla):EN 61810-1
(Upande wa koili):6 A (at 250 V, AC15)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4017918169794 |
| Ufunguo wa kuagiza | 2967604 |
| (Jumla) | EN 61810-1 |
| (Upande wa koili) | 6 A (at 250 V, AC15) |
| Ukurasa wa katalogi | Page 386 (C-5-2017) |
| Kina (Dokezo) | 94 mm |
| Kitengo cha kufungasha | 10 pc |
| Upana (Dokezo) | 14 mm |
| Urefu (Dokezo) | 80 mm |
| (Upande wa mguso) | 2x 0.5 mm² ... 1.5 mm² () |
| Nchi ya asili | DE (Germany) |
| (Data ya muunganisho 1) | 2x 0.5 mm² ... 1.5 mm² () |
| (Data ya muunganisho 2) | IP20 (Relay base) |
| Nambari ya ushuru maalum | 85364900 |
| Insulation (Jumla) | Safe isolation, reinforced insulation |
| (Hali ya mazingira) | Free-wheeling diode Damping diode |
| Uteuzi (Jumla) | Standards/regulations |
| (Data Muhimu za Kibiashara) | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. |
| Aina ya mguso (Upande wa koili) | 1 N/O contact |
| Kumbuka (Data ya muunganisho 2) | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. |
| Dokezo (Data Muhimu ya Kibiashara) | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. |
| Uzi wa skrubu (Upande wa mguso) | M3 |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Nyenzo ya mguso (Upande wa koili) | AgSnO2 |
| Kiwango cha uchafuzi wa mazingira (Jumla) | 2 |
| Urefu wa juu zaidi (Vipimo) | ≤ 2000 m |
| Volti ya kuongezeka iliyokadiriwa (Jumla) | 6 kV |
| Jina la muunganisho (Upande wa mawasiliano) | Coil side |
| Kategoria ya overvoltage (Jumla) | III |
| Uwezo wa kubadili (Upande wa koili) | 2 A (at 24 V, DC13) |
| Viwango/kanuni (Jumla) | EN 50178 |
| Urefu wa kukatwa (Upande wa mguso) | 8 mm |
| Mbinu ya muunganisho (Upande wa mawasiliano) | Screw connection |
| Uzi wa skrubu (Data ya muunganisho 1) | M3 |
| Volti ya koili (Hali ya mazingira) | 24 V DC |
| Kiwango cha juu cha mkondo wa kukimbilia (Upande wa koili) | 80 A (20 ms) |
| Kiwango cha chini cha ubadilishaji wa mkondo (Upande wa koili) | 100 mA (at 12 V DC) |
| Hali ya uendeshaji (Data ya muunganisho 2) | 100% operating factor |
| Volti ya insulation iliyokadiriwa (Jumla) | 250 V AC |
| Aina ya mguso wa swichi (Upande wa koili) | Single contact |
| Jina la muunganisho (Data ya muunganisho 1) | Contact side |
| Kiwango cha chini cha uwezo wa kubadili (Upande wa koili) | 1200 mW |
| Uzito halisi (SAP) (Data ya muunganisho 2) | 67.98 g |
| Urefu wa kuondoa (Data ya muunganisho 1) | 8 mm |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 67.980 g |
| Mbinu ya muunganisho (Data ya muunganisho 1) | Screw connection |
| Volti ya juu zaidi ya kubadili (Upande wa koili) | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Volti ya chini kabisa ya kubadili (Upande wa koili) | 12 V (at 100 mA) |
| Nafasi ya kupachika (Data ya muunganisho 2) | any |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Kupunguza mkondo unaoendelea (Upande wa Coil) | 6 A |
| Mzunguko wa kinga (Hali ya mazingira) | Reverse polarity protection Polarity protection diode |
| Kiwango cha ulinzi (Data ya muunganisho 2) | RT II (Relay) |
| Maagizo ya kuunganisha (Data ya muunganisho 2) | In rows with zero spacing |
| Muda wa kawaida wa kutolewa (Hali ya mazingira) | 10 ms |
| Sehemu ya msalaba ya kondakta AWG (Upande wa mguso) | 26 ... 14 |
| Muunganisho katika acc. na kiwango (Jumla) | CUL |
| Muda wa kawaida wa majibu (Hali za mazingira) | 8 ms |
| Muda wa huduma ya mitambo (Data ya muunganisho 2) | 3x 107cycles |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 60 °C |
| Sehemu ngumu ya kondakta (Upande wa mguso) | 0.14 mm² ... 2.5 mm² |
| Volti ya kuingiza ya nominella UN (Hali za mazingira) | 24 V DC |
| Kizuizi cha matumizi (Data Muhimu za Kibiashara) | EMC: class A product, see manufacturer's declaration in the download area |
| Onyesho la volteji ya uendeshaji (Hali ya mazingira) | Yellow LED |
| Sehemu ya msalaba ya kondakta AWG (Data ya muunganisho 1) | 26 ... 14 |
| Sehemu ya msalaba ya kondakta inayonyumbulika (Upande wa mguso) | 0.14 mm² ... 2.5 mm² |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa (Hali ya Mazingira) | 18 mA |
| Sehemu ngumu ya kondakta (Data ya muunganisho 1) | 0.14 mm² ... 2.5 mm² |
| Ukadiriaji wa kukatiza (mzigo wa ohmic) upeo. (Upande wa koili) | 144 W (at 24 V DC) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 85 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika (Data ya muunganisho 1) | 0.14 mm² ... 2.5 mm² |
| Ukadiriaji wa kukatiza (mzigo wa ohmic) upeo uliounganishwa (Upande wa koili) | 240 W (for 24 V DC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.) |
| Usambazaji wa umeme kwa hali ya kawaida (Hali za mazingira) | 0.43 W |
| Jaribu mgusano wa vilima/mgusano wa relay ya volteji (Data ya muunganisho 2) | 4 kV AC (50 Hz, 1 min.) |
Maelezo ya Bidhaa
PLC-INTERFACE for high clamping currents, consisting of PLC-BSC.../1 IC/ACT base terminal block with screw connection and plug-in miniature relay, for mounting on NS 35/7.5 rail, max. clamping current
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
14 mm PLC basic terminal block for high switch-on currents with screw connection, without relay or solid-state relay, for mounting on DIN rail NS 35/7,5, with load return line connection (BB), 1 N/O contact, input voltage 24 V DC
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
