PLC-RSC-12DC/21/EX

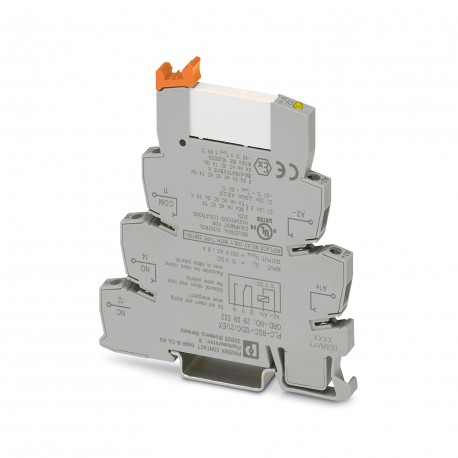

PLC-RSC-12DC/21/EX 2909522 PHOENIX CONTACT Relay Module
$0.00USD
3548 kwenye hisa
Vipimo Muhimu
:potentially explosive areas
EMC:B
Rangi:gray (RAL 7042)
Kina:94 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| potentially explosive areas | |
| EMC | B |
| Rangi | gray (RAL 7042) |
| Kina | 94 mm |
| Upana | 6.2 mm |
| Urefu | 80 mm |
| Dokezo la EMC | EMC: class A product, see manufacturer's declaration in the download area |
| Unyevu | A |
| Ufungashaji | Required protection according to the Rules shall be provided upon installation on board |
| Mtetemo | B/C |
| Maombi | Class I, Division 2 |
| Cheti | CE-compliant |
| Halijoto | D |
| Aina ya bidhaa | Relay Module |
| Uzi wa skrubu | M3 |
| Dokezo la mkutano | in rows with zero spacing |
| Aina ya kupachika | DIN rail mounting |
| Utambulisho | II 3G Ex ec nC IIC T4 Gc |
| Hali ya uendeshaji | 100% operating factor |
| Familia ya bidhaa | PLC-INTERFACE |
| Marekebisho ya makala | 02 |
| Nyenzo ya mawasiliano | AgSnO |
| Hifadhi (polari) | polarized |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Screw connection |
| Nafasi ya kupachika | any |
| Kukaza torque | 0.6 Nm ... 0.8 Nm |
| Hifadhi na kazi | monostable |
| Mzunguko wa kinga | Reverse polarity protection; Polarity protection diode |
| Uwezo wa kubadili | 2 A (at 24 V, DC13) |
| Kiwango cha volteji ya kuingiza | 9.72 V DC ... 16.8 V DC (20 °C) |
| Kategoria ya volteji nyingi | III |
| Muda wa kawaida wa kutolewa | 8 ms |
| Maelekezo ya Volti ya Chini | Conformance with Low Voltage Directive |
| Viwango/kanuni | IEC 60947-5-1 |
| Muda wa kawaida wa majibu | 5 ms |
| Aina ya ubadilishaji wa mguso | 1 changeover contact |
| Kiwango cha juu cha mkondo wa kukimbilia | 10 A (4 s) |
| Kiwango cha chini cha ubadilishaji wa mkondo | 10 mA (12 V) |
| Aina ya mguso wa swichi | Single contact |
| Aina ya muunganisho wa mawasiliano | Power contact |
| Maisha ya huduma ya mitambo | 2x 107cycles |
| Volti ya pembejeo ya kawaida ya UN | 12 V DC |
| Volti ya juu zaidi ya kubadili | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Volti ya chini kabisa ya kubadili | 5 V AC/DC (100 mA) |
| Onyesho la volteji ya uendeshaji | Yellow LED |
| Sehemu ya msalaba ya kondakta AWG | 26 ... 14 |
| Kupunguza mkondo unaoendelea | 6 A |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa | 15.3 mA |
| Tarehe ya mwisho ya usimamizi wa data | 01.08.2024 |
| Kiwango cha ulinzi (Relay) | RT III (Relay) |
| Sehemu ngumu ya kondakta | 0.14 mm² ... 2.5 mm² |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Volti ya majaribio (Kuzungusha/kugusa) | 4 kV AC (50 Hz, 1 min., winding/contact) |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 60 °C (UL) |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.14 mm² ... 2.5 mm² |
| Kiwango cha ulinzi (Kituo cha kupokezana) | IP20 (Relay base) |
| Kiwango cha juu cha ukadiriaji wa kukatiza (mzigo wa ohmic). | 140 W (at 24 V DC) |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 (Housing) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 0.18 W |
| Volti ya kawaida (relay ya umeme ya mitambo iliyochomekwa) | 12 V DC |
Maelezo ya Bidhaa
PLC-INTERFACE, consisting of a base terminal block for mounting on a 6.2 mm rail with screw connection and plug-in miniature relay with 6 A power contact, 1 switched contact, input voltage of 12 V DC.
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
