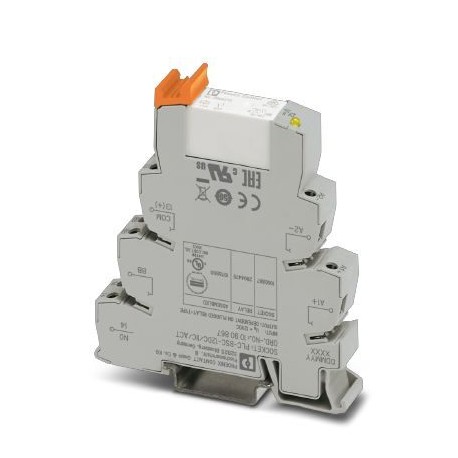

PLC-RSC-12DC/ 1IC/ACT
PLC-RSC-12DC/ 1IC/ACT 1078800 PHOENIX CONTACT PLC-INTERFACE for high switch-on currents, consisting of PLC-B..
$0.00USD
3983 kwenye hisa
Vipimo Muhimu
GTIN:4055626794532
Ufunguo wa kuagiza:1078800
(Jumla):2x 0.5 mm² ... 1.5 mm² (TWIN ferrule)
(Michoro):The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact.
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626794532 |
| Ufunguo wa kuagiza | 1078800 |
| (Jumla) | 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
| (Michoro) | The system installer must ensure the touch protection of the product (at voltages > 25 V AC/60 V DC). The product is a built-in device without protection against direct contact. |
| (Upande wa koili) | 6 A (at 250 V, AC15) |
| Ukurasa wa katalogi | Page 382 (C-5-2019) |
| Kina (Dokezo) | 94 mm |
| Kitengo cha kufungasha | 1 pc |
| Upana (Dokezo) | 14 mm |
| (Vipimo) | ≥ IP54 (Installation location) |
| Urefu (Dokezo) | 80 mm |
| Dokezo (Michoro) | Separating plate PLC-ATP must be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. |
| Nchi ya asili | DE (Germany) |
| ETIM 5.0 (eCl@ss) | EC001437 |
| ETIM 6.0 (eCl@ss) | EC001437 |
| ETIM 7.0 (eCl@ss) | EC001437 |
| (Data ya muunganisho) | 2x 0.5 mm² ... 1.5 mm² (TWIN ferrule) |
| (Data ya muunganisho 2) | EN 61810-1 |
| Nambari ya ushuru maalum | 85364190 |
| (Hali ya mazingira) | Free-wheeling diode Damping diode |
| Uzi wa skrubu (Jumla) | M 3 |
| Aina ya mguso (Upande wa koili) | 1 N/O contact |
| Jina la muunganisho (Jumla) | Coil side |
| Urefu wa kukatwa (Jumla) | 8 mm |
| Mbinu ya muunganisho (Jumla) | Screw connection |
| (Viwango na Kanuni) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Nyenzo ya mguso (Upande wa koili) | AgSnO2 |
| eCl@ss 8.0 (Uainishaji) | 27371601 |
| eCl@ss 9.0 (Uainishaji) | 27371601 |
| Urefu wa juu zaidi (Vipimo) | ≤ 2000 m |
| Hali ya uendeshaji (Upande wa mguso) | 100% operating factor |
| Insulation (Data ya muunganisho 2) | Safe isolation, reinforced insulation |
| Uzi wa skrubu (Data ya muunganisho) | M3 |
| Uwezo wa kubadili (Upande wa koili) | 2 A (at 24 V, DC13) |
| Uteuzi (Data ya muunganisho 2) | Standards/regulations |
| Nafasi ya kupachika (Upande wa mguso) | any |
| Volti ya koili (Hali ya mazingira) | 12 V DC |
| Jina la muunganisho (Data ya muunganisho) | Contact side |
| Kiwango cha ulinzi (Vipimo) | RT II (Relay) |
| Kiwango cha juu cha mkondo wa kukimbilia (Upande wa koili) | 80 A (for 20 ms) |
| Kiwango cha chini cha ubadilishaji wa mkondo (Upande wa koili) | 100 mA (at 12 V DC) |
| Urefu wa kuondoa (Data ya muunganisho) | 8 mm |
| Aina ya mguso wa swichi (Upande wa koili) | Single contact |
| Utilization restriction (Drawings) | EMC: class A product, see manufacturer's declaration in the download area |
| Mbinu ya muunganisho (Data ya muunganisho) | Screw connection |
| Kiwango cha chini cha uwezo wa kubadili (Upande wa koili) | 1200 mW |
| Maagizo ya kuunganisha (Upande wa mawasiliano) | In rows with zero spacing |
| Kiwango cha uchafuzi (Data ya muunganisho 2) | 2 |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Sehemu ya msalaba ya kondakta AWG (Jumla) | 26 ... 14 |
| Volti ya juu zaidi ya kubadili (Upande wa koili) | 250 V AC/DC (The separating plate PLC-ATP should be installed for voltages larger than 250 V (L1, L2, L3) between identical terminal blocks in adjacent modules. Potential bridging is then carried out with FBST 8-PLC... or ...FBST 500...) |
| Volti ya chini kabisa ya kubadili (Upande wa koili) | 12 V (at 100 mA) |
| RoHS ya China (Viwango na Kanuni) | Environmentally Friendly Use Period = 50 |
| Muda wa huduma ya mitambo (Upande wa mawasiliano) | 3x 107cycles |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Sehemu ngumu ya kondakta (Jumla) | 0.14 mm² ... 2.5 mm² |
| Kupunguza mkondo unaoendelea (Upande wa Coil) | 6 A |
| Mzunguko wa kinga (Hali ya mazingira) | Reverse polarity protection Polarity protection diode |
| Volti ya kuongezeka iliyokadiriwa (Data ya muunganisho 2) | 6 kV |
| Kategoria ya volteji kupita kiasi (Data ya muunganisho 2) | III |
| Viwango/kanuni (Data ya muunganisho 2) | EN 50178 |
| Muda wa kawaida wa kutolewa (Hali ya mazingira) | 10 ms |
| Sehemu ya msalaba ya kondakta inayonyumbulika (Jumla) | 0.14 mm² ... 2.5 mm² |
| Muda wa kawaida wa majibu (Hali za mazingira) | 8 ms |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 60 °C |
| Volti ya insulation iliyokadiriwa (Data ya muunganisho 2) | 250 V AC |
| Sehemu ya msalaba ya kondakta AWG (Data ya muunganisho) | 26 ... 14 |
| Volti ya kuingiza ya nominella UN (Hali za mazingira) | 12 V DC |
| Onyesho la volteji ya uendeshaji (Hali ya mazingira) | Yellow LED |
| Sehemu ngumu ya kondakta (Data ya muunganisho) | 0.14 mm² ... 2.5 mm² |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa (Hali ya Mazingira) | 33 mA |
| Ukadiriaji wa kukatiza (mzigo wa ohmic) upeo. (Upande wa koili) | 144 W (at 24 V DC) |
| Sehemu ya msalaba ya kondakta inayonyumbulika (Data ya muunganisho) | 0.14 mm² ... 2.5 mm² |
| Halijoto ya kawaida (uhifadhi/usafiri) (Vipimo) | -40 °C ... 85 °C |
| Jaribio la mgusano wa vilima/mgusano wa relay ya volteji (Upande wa mgusano) | 4 kV AC (50 Hz, 1 min.) |
| Ukadiriaji wa kukatiza (mzigo wa ohmic) upeo uliounganishwa (Upande wa koili) | 240 W (for 24 V DC. The value is permissible if both connections 13, both connections 14 and both connections BB are bridged.) |
| Usambazaji wa umeme kwa hali ya kawaida (Hali za mazingira) | 0.4 W |
| DiagramBasic behavior of capacitive loads:- Very high inrush current- Voltage increases with an e-function (Drawings) | |
| DiagramCurve AMaximum permissible continuous voltage Umaxwith limiting continuous current on the contact side (see relevant technical data)Curve BMinimum permissible operate voltage Uopafter pre-excitation (see relevant technical data) (Drawings) |
Maelezo ya Bidhaa
PLC-INTERFACE for high clamping currents, consisting of PLC-BSC.../1 IC/ACT base terminal block with push-in connection and plug-in miniature relay, for mounting on NS 35/7.5 rail, max. clamping curre
