PLC-RPT-24DC/2X21/FG

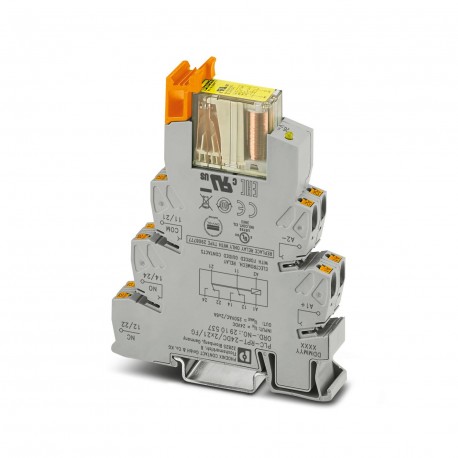

PLC-RPT- 24DC/2X21/FG 2910537 PHOENIX CONTACT Relay Module
$0.00USD
3524 kwenye hisa
Vipimo Muhimu
:900000 Cycles (AC1; 250 V / 3 A; 1 NO)
EMC:B
B10d:600000 Cycles (AC1; 250 V / 6 A; 1 NO)
Rangi:gray (RAL 7042)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 900000 Cycles (AC1; 250 V / 3 A; 1 NO) | |
| EMC | B |
| B10d | 600000 Cycles (AC1; 250 V / 6 A; 1 NO) |
| Rangi | gray (RAL 7042) |
| Kina | 104 mm |
| Upana | 14 mm |
| Urefu | ≤ 2000 m |
| Unyevu | A |
| Ufungashaji | Required protection according to the Rules shall be provided upon installation on board |
| Mtetemo | B/C |
| Insulation | Safe isolation, reinforced insulation |
| Maombi | Forcibly guided contacts |
| Cheti | CE-compliant |
| Halijoto | D |
| Aina ya bidhaa | Relay Module |
| Dokezo la mkutano | in rows with zero spacing |
| Aina ya kupachika | DIN rail mounting |
| Utambulisho | UL 508 |
| Hali ya uendeshaji | 100% operating factor |
| Familia ya bidhaa | PLC-INTERFACE |
| Marekebisho ya makala | 03 |
| Nyenzo ya mawasiliano | AgNi |
| Hifadhi (polari) | polarized |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 10 mm |
| Mbinu ya muunganisho | Push-in connection |
| Nafasi ya kupachika | any |
| Hifadhi na kazi | monostable |
| Mzunguko wa kinga | Freewheeling diode |
| Uwezo wa kubadili | 3 A (24 V, DC13) |
| Kiwango cha volteji ya kuingiza | 20.2 V DC ... 32.4 V DC (20 °C) |
| Volti ya kuongezeka iliyokadiriwa | 6 kV |
| Kategoria ya volteji nyingi | III |
| Muda wa kawaida wa kutolewa | 10 ms |
| Maelekezo ya Volti ya Chini | Conformance with Low Voltage Directive |
| Viwango/kanuni | IEC 60947-5-1 |
| Muda wa kawaida wa majibu | 10 ms |
| Aina ya ubadilishaji wa mguso | 2 changeover contacts, forcibly actuated |
| Kiwango cha juu cha mkondo wa kukimbilia | 6 A |
| Kiwango cha chini cha ubadilishaji wa mkondo | 10 mA (5 V) |
| Aina ya mguso wa swichi | Single contact |
| Maisha ya huduma ya mitambo | approx. 107cycles |
| Kiwango cha chini cha uwezo wa kubadili. | 150 mW |
| Volti ya pembejeo ya kawaida ya UN | 24 V DC |
| Volti ya insulation iliyokadiriwa | 250 V AC |
| Volti ya juu zaidi ya kubadili | 250 V AC/DC |
| Volti ya chini kabisa ya kubadili | 5 V (10 mA) |
| Onyesho la volteji ya uendeshaji | Yellow LED |
| Sehemu ya msalaba ya kondakta AWG | 26 ... 14 |
| Kupunguza mkondo unaoendelea | 6 A |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa | 30 mA |
| Tarehe ya mwisho ya usimamizi wa data | 08.07.2024 |
| Kiwango cha ulinzi (Relay) | RT II (Relay) |
| Sehemu ngumu ya kondakta | 0.14 mm² ... 2.5 mm² |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Volti ya majaribio (Kuzungusha/kugusa) | 4 kVrms(50 Hz, 1 min., winding/contact) |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 60 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.14 mm² ... 2.5 mm² |
| Kiwango cha ulinzi (Kituo cha kupokezana) | IP20 (Relay base) |
| Kiwango cha juu cha ukadiriaji wa kukatiza (mzigo wa ohmic). | 144 W (24 V DC) |
| Kiwango cha volteji ya kuingiza data kwa kurejelea UN | see diagram |
| Halijoto ya kawaida (uhifadhi/usafiri) | -20 °C ... 85 °C |
| Kiwango cha ulinzi (Mahali pa ufungaji) | ≥ IP54 (Installation location) |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 0.72 W |
| Mawasiliano yanayoongozwa kwa nguvu kulingana na EN 61810-3 | Type B |
| Volti ya kawaida (relay ya umeme ya mitambo iliyochomekwa) | 24 V DC |
| Volti ya majaribio (Mguso wa kubadilisha/mguso wa kubadilisha) | 2.5 kVrms(50 Hz, 1 min., changeover contact/changeover contact) |
Maelezo ya Bidhaa
PLC-INTERFACE, consisting of relay socket and plug-in safety relay with forced conduction contacts according to DIN EN 61810-3, Push-in connection, 2 inverter contacts, with forced guide, Free circula
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
