PLC-RPT-230UC/21-21AU/RWF

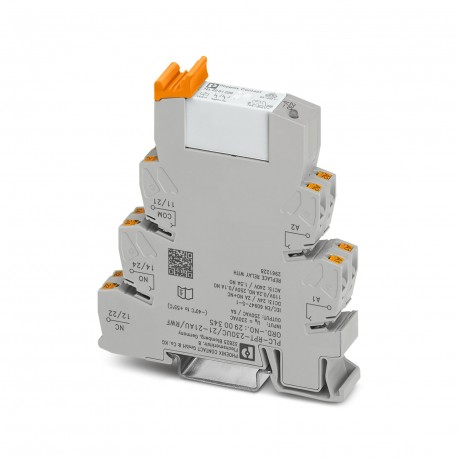

PLC-RPT-230UC/21-21AU/RWF 2900345 PHOENIX CONTACT Relay Module
$0.00USD
3104 kwenye hisa
Vipimo Muhimu
:36 V DC
Dokezo:If the specified maximum values are exceeded, the gold plating is destroyed. The AgNi contact values are then valid for further operation; a reduction in length of service life is to be expected.
Rangi:gray (RAL 7042)
Kina:94 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 36 V DC | |
| Dokezo | If the specified maximum values are exceeded, the gold plating is destroyed. The AgNi contact values are then valid for further operation; a reduction in length of service life is to be expected. |
| Rangi | gray (RAL 7042) |
| Kina | 94 mm |
| Upana | 14 mm |
| Urefu | 80 mm |
| Insulation | Basic insulation |
| Maombi | Railway applications |
| Cheti | CE-compliant |
| Aina ya bidhaa | Relay Module |
| Dokezo la mkutano | in rows with zero spacing |
| Aina ya kupachika | DIN rail mounting |
| Utambulisho | ISA-S71.04. G3 Harsh Group |
| Hali ya uendeshaji | 100% operating factor |
| Familia ya bidhaa | PLC-INTERFACE |
| Masafa ya mtandao mkuu | 16.67 Hz |
| Marekebisho ya makala | 07 |
| Nyenzo ya mawasiliano | AgNi, hard gold-plated |
| Hifadhi (polari) | polarized |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 10 mm |
| Mbinu ya muunganisho | Push-in connection |
| Nafasi ya kupachika | any |
| Hifadhi na kazi | monostable |
| Mzunguko wa kinga | Bridge rectifier |
| Uwezo wa kubadili | 2 A (24 V (DC13), in acc. with DIN VDE 0660/IEC 60947) |
| Kiwango cha volteji ya kuingiza | 172.5 V AC ... 264.5 V AC (20 °C) |
| Volti ya kuongezeka iliyokadiriwa | 6 kV |
| Kategoria ya volteji nyingi | III |
| Muda wa kawaida wa kutolewa | 60 ms |
| Maelekezo ya Volti ya Chini | Conformance with Low Voltage Directive |
| Viwango/kanuni | IEC 60947-5-1 |
| Muda wa kawaida wa majibu | 20 ms |
| Aina ya ubadilishaji wa mguso | 2 changeover contacts |
| Kiwango cha juu cha mkondo wa kukimbilia | 50 mA |
| Kiwango cha chini cha ubadilishaji wa mkondo | 1 mA |
| Aina ya mguso wa swichi | Single contact |
| Maisha ya huduma ya mitambo | approx. 3x 107cycles |
| Volti ya pembejeo ya kawaida ya UN | 230 V AC |
| Volti ya insulation iliyokadiriwa | 250 V AC |
| Volti ya juu zaidi ya kubadili | 30 V AC |
| Volti ya chini kabisa ya kubadili | 100 mV |
| Onyesho la volteji ya uendeshaji | Yellow LED |
| Sehemu ya msalaba ya kondakta AWG | 26 ... 14 |
| Kupunguza mkondo unaoendelea | 50 mA |
| Mkondo wa kawaida wa pembejeo katika Umoja wa Mataifa | 4.8 mA (with AC) |
| Tarehe ya mwisho ya usimamizi wa data | 08.07.2024 |
| Kiwango cha ulinzi (Relay) | RT III (Relay) |
| Sehemu ngumu ya kondakta | 0.14 mm² ... 2.5 mm² |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Volti ya majaribio (Kuzungusha/kugusa) | 6 kV (50 Hz, 1 min., winding/contact) |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 55 °C |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.14 mm² ... 2.5 mm² |
| Kiwango cha ulinzi (Kituo cha kupokezana) | IP20 (Relay base) |
| Kiwango cha juu cha ukadiriaji wa kukatiza (mzigo wa ohmic). | 1.2 W (24 V DC) |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 (Housing) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 1.1 W |
| Volti ya kawaida (relay ya umeme ya mitambo iliyochomekwa) | 110 V DC |
Maelezo ya Bidhaa
PLC-INTERFACE for railway applications, consisting of base terminal block with push-in connection and plug-in miniature relay with multilayer gold contact, range: 0.75 x UN to 1.15 x UN, nominal input
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
