PC 6-16/ 6-G1U-10,16 BK

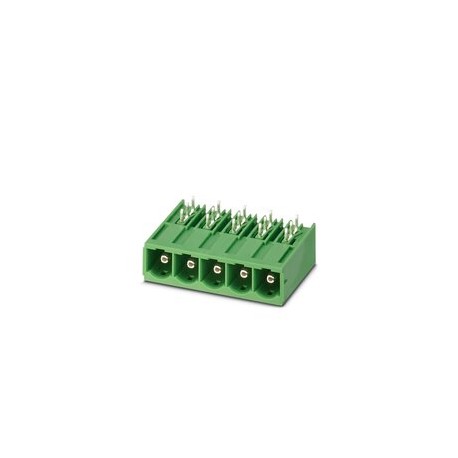

PC 6-16/ 6-G1U-10,16 BK 1763834 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
4001 kwenye hisa
Vipimo Muhimu
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Lami:10.16 mm
Rangi ():()
Mpangilio wa pini:Linear three-way pinning
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Lami | 10.16 mm |
| Rangi () | () |
| Mpangilio wa pini | Linear three-way pinning |
| Mstari wa bidhaa | COMBICON Connectors XL |
| Aina ya bidhaa | PCB headers |
| Aina ya kupachika | Wave soldering |
| Vipimo | IEC 60664-1:2007-04 |
| Idadi ya safu mlalo | 1 |
| Vipimo vya pini | 0.8 x 1.2 mm |
| Familia ya bidhaa | PC 6-16/..-G1U |
| Flange ya kupachika | without |
| Nyenzo ya mawasiliano | Cu alloy |
| Urefu uliowekwa | 17.4 mm |
| Aina ya kifungashio | packed in cardboard |
| Mkondo wa nominella IN | 76 A (41 A in combination with PC 6 plug) |
| Volti ya kawaida ya Umoja wa Mataifa | 1000 V |
| Maelezo kuhusu uendeshaji | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PA |
| Idadi ya nafasi | 6 |
| Volti iliyokadiriwa (II/2) | 1000 V |
| Volti iliyokadiriwa (III/2) | 1000 V |
| Volti iliyokadiriwa (III/3) | 1000 V |
| Urefu wa pini ya solder [P] | 4 mm |
| Sifa za uso | Electroplated silver |
| Kikundi cha nyenzo za kuhami joto | I |
| Pini za solder kwa kila uwezo | 3 |
| CTI kulingana na IEC 60112 | 600 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 6 kV |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 8 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 8 kV |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 100 °C (dependent on the derating curve) |
| Volti ya insulation iliyokadiriwa (II/2) | 1000 V |
| Volti ya insulation iliyokadiriwa (III/2) | 1000 V |
| Volti ya insulation iliyokadiriwa (III/3) | 1000 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 5.5 mm |
| umbali wa chini kabisa (III/2) | 8 mm |
| umbali wa chini kabisa (III/3) | 12.5 mm |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Eneo la mguso wa uso wa chuma (safu ya juu) | Silver (4 - 8 µm Ag) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Faharasa ya ufuatiliaji linganishi (IEC 60112) | CTI 600 |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Silver (4 - 8 µm Ag) |
| Eneo la mguso wa uso wa chuma (safu ya kati) | Nickel (2 - 4 µm Ni) |
| Eneo la kusugulia uso wa chuma (safu ya kati) | Nickel (2 - 4 µm Ni) |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 5.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 8 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 8 mm |
| Kielelezo cha kuwaka kwa waya wa mwanga GWFI kulingana na EN 60695-2-12 | 850 |
| Joto la kuwasha la waya yenye mwanga GWIT kulingana na EN 60695-2-13 | 775 |
| Halijoto kwa ajili ya jaribio la shinikizo la mpira kulingana na EN 60695-10-2 | 125 °C |
Maelezo ya Bidhaa
PCB headers, nominal cross section: 16 mm2, color: black, nominal current: 76 A (41 A in combination with PC 6 plug), rated voltage (III/2): 1000 V, contact connection type: Pin, number of rows: 1, nu
