PC 6-16/ 3-G-10,16 BUGY

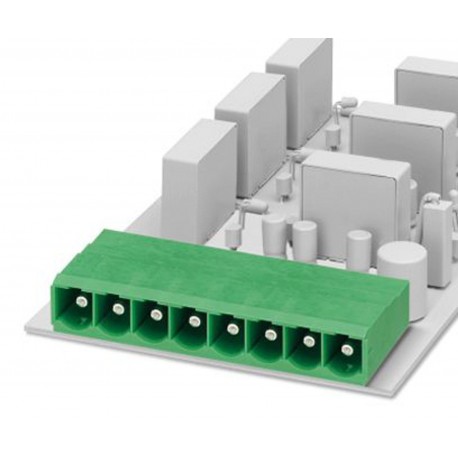

PC 6-16/ 3-G-10,16 BUGY 1967951 PHOENIX CONTACT Feed-through header
$0.00USD
4735 kwenye hisa
Vipimo Muhimu
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Lami:10.16 mm
Matokeo:Test passed
Upeo:0.35 mm (10 Hz ... 60.1 Hz)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Lami | 10.16 mm |
| Matokeo | Test passed |
| Upeo | 0.35 mm (10 Hz ... 60.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Upana [w] | 33.52 mm |
| Urefu [h] | 17.7 mm |
| Urefu [l] | 32 mm |
| Mpangilio wa pini | Linear pinning |
| Kasi ya kufagia | 1 octave/min |
| Kuongeza kasi | 5g (60.1 Hz ... 150 Hz) |
| Mstari wa bidhaa | COMBICON Connectors XL |
| Aina ya bidhaa | PCB headers |
| Kipenyo cha shimo | 1.7 mm |
| Aina ya kupachika | Wave soldering |
| Idadi ya mizunguko | 50 |
| Vipimo | IEC 60512-1-1:2002-02 |
| Idadi ya safu mlalo | 1 |
| Vipimo vya pini | 1 x 1.2 mm |
| Familia ya bidhaa | PC 6-16/..-G |
| Mkazo wa joto | 105 °C/168 h |
| Rangi (Nyumba) | blue grey (7031) |
| Flange ya kupachika | without |
| Maelekezo ya majaribio | X-, Y- and Z-axis |
| Marekebisho ya makala | 01 |
| Nyenzo ya mawasiliano | Cu alloy |
| Mkazo unaosababisha kutu | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Urefu uliowekwa | 13.7 mm |
| Aina ya kifungashio | packed in cardboard |
| Upinzani wa mguso | 0.4 mΩ |
| Mkondo wa nominella IN | 76 A (41 A in combination with PC 6 plug) |
| Volti ya kawaida ya Umoja wa Mataifa | 1000 V |
| Maelezo kuhusu uendeshaji | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PA |
| Idadi ya nafasi | 3 |
| Idadi ya uwezo | 3 |
| Volti iliyokadiriwa (II/2) | 1000 V |
| Upinzani wa mguso R1 | 0.4 mΩ |
| Upinzani wa mguso R2 | 0.4 mΩ |
| Idadi ya miunganisho | 3 |
| Volti iliyokadiriwa (III/2) | 1000 V |
| Volti iliyokadiriwa (III/3) | 630 V |
| Urefu wa pini ya solder [P] | 4 mm |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | completely silver-plated |
| Kikundi cha nyenzo za kuhami joto | I |
| Pini za solder kwa kila uwezo | 3 |
| CTI kulingana na IEC 60112 | 600 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 6 kV |
| Idadi ya nafasi zilizojaribiwa | 8 |
| Mizunguko ya kuingiza/kutoa | 50 |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 8 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 8 kV |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 105 °C (dependent on the derating curve) |
| Volti ya insulation iliyokadiriwa (II/2) | 1000 V |
| Volti ya insulation iliyokadiriwa (III/2) | 1000 V |
| Volti ya insulation iliyokadiriwa (III/3) | 630 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 5.5 mm |
| Volti inayostahimili masafa ya nguvu | 4.26 kV |
| umbali wa chini kabisa (III/2) | 8 mm |
| umbali wa chini kabisa (III/3) | 8 mm |
| Punguza nguvu kwa kila pos. takriban. | 7 N |
| Nguvu ya kuingiza kwa kila nafasi ni takriban. | 7 N |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Msukumo hustahimili volteji katika usawa wa bahari | 9.8 kV |
| Eneo la mguso wa uso wa chuma (safu ya juu) | Silver (4 - 8 µm Ag) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Faharasa ya ufuatiliaji linganishi (IEC 60112) | CTI 600 |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Silver (4 - 8 µm Ag) |
| Kishikilia mguso katika kiingilio Mahitaji >20 N | Test passed |
| Upinzani wa insulation, nafasi za jirani | > 5 MΩ |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 5.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 8 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 8 mm |
| Kielelezo cha kuwaka kwa waya wa mwanga GWFI kulingana na EN 60695-2-12 | 850 |
| Joto la kuwasha la waya yenye mwanga GWIT kulingana na EN 60695-2-13 | 775 |
| Halijoto kwa ajili ya jaribio la shinikizo la mpira kulingana na EN 60695-10-2 | 125 °C |
Maelezo ya Bidhaa
Printed circuit board base housing, nominal section: 6 mm², color: bluish gray, nominal current: 76 A (41 A in combination with PC 6 connector), nominal voltage (III/2): 1000 V, contact surface: silve
