PC 5/ 4-G-7,62 P26 THT R56

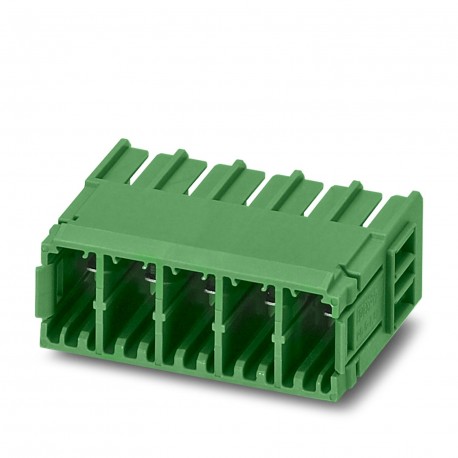

PC 5/ 4-G-7,62 P26 THT R56 1704122 PHOENIX CONTACT Feed-through header
$0.00USD
4396 kwenye hisa
Vipimo Muhimu
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Lami:7.62 mm
Mchakato:Reflow/wave soldering
Kiwango cha ESD:(D) electrostatically conductive
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Lami | 7.62 mm |
| Mchakato | Reflow/wave soldering |
| Kiwango cha ESD | (D) electrostatically conductive |
| Upana [w] | 33.28 mm |
| Urefu [h] | 16.89 mm |
| Urefu [l] | 29.25 mm |
| Mpangilio wa pini | Linear pinning |
| Mstari wa bidhaa | COMBICON Connectors L |
| Aina ya bidhaa | PCB headers |
| Kipenyo cha shimo | 1.3 mm |
| Aina ya kupachika | THR soldering / wave soldering |
| Vipimo | IEC 60664-1:2007-04 |
| Idadi ya safu mlalo | 1 |
| Vipimo vya pini | 0.8 x 1 mm |
| Familia ya bidhaa | PC 5/..-G-THR |
| Upana wa tepi [W] | 56 mm |
| Rangi (Nyumba) | black (9005) |
| Flange ya kupachika | without |
| Marekebisho ya makala | 01 |
| Nyenzo ya mawasiliano | Cu alloy |
| Urefu uliowekwa | 14.29 mm |
| Aina ya kifungashio | 56 mm wide tape |
| [A] kipenyo cha koili | 330 mm |
| Mkondo wa nominella IN | 41 A |
| Volti ya kawaida ya Umoja wa Mataifa | 630 V |
| Maelezo kuhusu uendeshaji | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PA GF |
| Idadi ya nafasi | 4 |
| Aina ya kifungashio cha nje | Dry bag |
| Volti iliyokadiriwa (II/2) | 800 V |
| Volti iliyokadiriwa (III/2) | 630 V |
| Volti iliyokadiriwa (III/3) | 500 V |
| Urefu wa pini ya solder [P] | 2.6 mm |
| Sifa za uso | hot-dip tin-plated |
| Kiwango cha Unyevu Kinachoathiriwa na Unyevu | MSL 3 |
| Kikundi cha nyenzo za kuhami joto | IIIa |
| Pini za solder kwa kila uwezo | 3 |
| CTI kulingana na IEC 60112 | 250 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 6 kV |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 6 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 6 kV |
| Mizunguko ya solder katika mtiririko mpya | 3 |
| Kipimo cha jumla cha koili ya [W2] | 62.4 mm |
| Uainishaji wa halijoto Tc | 245 °C |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 100 °C (dependent on the derating curve) |
| Volti ya insulation iliyokadiriwa (II/2) | 800 V |
| Volti ya insulation iliyokadiriwa (III/2) | 630 V |
| Volti ya insulation iliyokadiriwa (III/3) | 500 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 8 mm |
| umbali wa chini kabisa (III/2) | 6.3 mm |
| umbali wa chini kabisa (III/3) | 8 mm |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Eneo la mguso wa uso wa chuma (safu ya juu) | Tin (4 - 8 µm Sn) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Faharasa ya ufuatiliaji linganishi (IEC 60112) | CTI 250 |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Tin (4 - 8 µm Sn) |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 5.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 5.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 5.5 mm |
Maelezo ya Bidhaa
Printed circuit board base case, nominal section: 6 mm², color: black, nominal current: 41 A, nominal voltage (III/2): 630 V, contact surface: Tin, contact type: Male, number of rows: 1, number of pol
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
