PC 35 HC/ 4-GF-15,00 BB

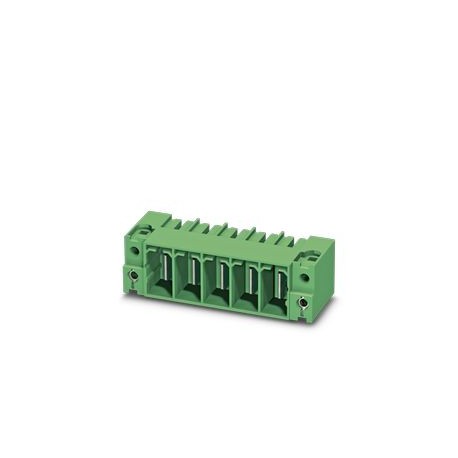

PC 35 HC/ 4-GF-15,00 BB 1781175 PHOENIX CONTACT Housing base printed circuit board, nominal current: 125 A, ..
$0.00USD
3085 kwenye hisa
Vipimo Muhimu
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Aina:Headers
Lami:15 mm
Skurubu:1700368 DFK-PC 35 SS
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Aina | Headers |
| Lami | 15 mm |
| Skurubu | 1700368 DFK-PC 35 SS |
| Matokeo | Test passed |
| Upeo | 0.35 mm (10 Hz ... 60.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Upana [w] | 84.4 mm |
| Urefu [h] | 33.1 mm |
| Urefu [l] | 38 mm |
| Mpangilio wa pini | Linear pinning |
| Nafasi ya kubandika | 11.00 mm |
| Umbo la mapigo | Semi-sinusoidal |
| Kasi ya kufagia | 1 octave/min |
| Kuongeza kasi | 30g |
| Mstari wa bidhaa | COMBICON Connectors XL |
| Aina ya bidhaa | PCB headers |
| Kipenyo cha shimo | 3.6 mm |
| Aina ya kupachika | Wave soldering |
| Idadi ya mizunguko | 50 |
| Vipimo | IEC 60512-1-1:2002-02 |
| Idadi ya safu mlalo | 1 |
| Vipimo vya pini | 2.4 x 2.5 mm |
| Familia ya bidhaa | PC 35 HC/..-GF |
| Muda wa mshtuko | 18 ms |
| Mkazo wa joto | 100 °C/168 h |
| Rangi (Nyumba) | green (6021) |
| Flange ya kupachika | Threaded flange |
| Maelekezo ya majaribio | X-, Y- and Z-axis (pos. and neg.) |
| Nyenzo ya mawasiliano | Cu alloy |
| Mkazo unaosababisha kutu | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Urefu uliowekwa | 28.5 mm |
| Kukaza torque | 0.8 Nm |
| Aina ya kifungashio | packed in cardboard |
| Upinzani wa mguso | 0.12 mΩ |
| Mkondo wa nominella IN | 125 A |
| Volti ya kawaida ya Umoja wa Mataifa | 1000 V |
| Maelezo kuhusu uendeshaji | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PBT |
| Idadi ya nafasi | 4 |
| Idadi ya uwezo | 4 |
| Volti iliyokadiriwa (II/2) | 1000 V |
| Upinzani wa mguso R1 | 0.12 mΩ |
| Upinzani wa mguso R2 | 0.15 mΩ |
| Idadi ya miunganisho | 4 |
| Volti iliyokadiriwa (III/2) | 1000 V |
| Volti iliyokadiriwa (III/3) | 1000 V |
| Urefu wa pini ya solder [P] | 4.6 mm |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | Electroplated silver |
| Kikundi cha nyenzo za kuhami joto | IIIa |
| Pini za solder kwa kila uwezo | 3 |
| CTI kulingana na IEC 60112 | ≥175 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 6 kV |
| Idadi ya nafasi zilizojaribiwa | 6 |
| Mizunguko ya kuingiza/kutoa | 50 |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 8 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 8 kV |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 100 °C (dependent on the derating curve) |
| Volti ya insulation iliyokadiriwa (II/2) | 1000 V |
| Volti ya insulation iliyokadiriwa (III/2) | 1000 V |
| Volti ya insulation iliyokadiriwa (III/3) | 1000 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 10 mm |
| Volti inayostahimili masafa ya nguvu | 4.26 kV |
| umbali wa chini kabisa (III/2) | 10 mm |
| umbali wa chini kabisa (III/3) | 16 mm |
| Punguza nguvu kwa kila pos. takriban. | 11 N |
| Nguvu ya kuingiza kwa kila nafasi ni takriban. | 15 N |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Msukumo hustahimili volteji katika usawa wa bahari | 9.8 kV |
| Eneo la mguso wa uso wa chuma (safu ya juu) | Silver (4 - 8 µm Ag) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Faharasa ya ufuatiliaji linganishi (IEC 60112) | CTI ≥175 to <400 |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Silver (4 - 8 µm Ag) |
| Kishikilia mguso katika kiingilio Mahitaji >20 N | Test passed |
| Upinzani wa insulation, nafasi za jirani | 1012Ω |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 5.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 8 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 8 mm |
