OTTAD 6/SB-P/P

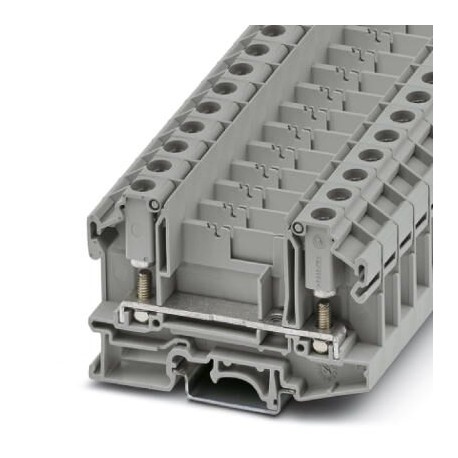

OTTAD 6/SB-P/P 1033182 PHOENIX CONTACT Feed-through terminal block, With test socket screws for insertion of..
$0.00USD
3789 kwenye hisa
Vipimo Muhimu
GTIN:4055626537887
Ufunguo wa kuagiza:1033182
(Michoro):6 mm² / 1.4 kg
Ukurasa wa katalogi:Page 567 (C-1-2019)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626537887 |
| Ufunguo wa kuagiza | 1033182 |
| (Michoro) | 6 mm² / 1.4 kg |
| Ukurasa wa katalogi | Page 567 (C-1-2019) |
| Kitengo cha kufungasha | 1 pc |
| Upana (Jumla) | 11 mm |
| Rangi (Michoro) | gray |
| Urefu (Jumla) | 79.2 mm |
| UNSPSC 11 (ETIM) | 39121410 |
| Nchi ya asili | IN (India) |
| ETIM 2.0 (eCl@ss) | EC000902 |
| ETIM 3.0 (eCl@ss) | EC000902 |
| ETIM 4.0 (eCl@ss) | EC000902 |
| ETIM 5.0 (eCl@ss) | EC000897 |
| ETIM 6.0 (eCl@ss) | EC000897 |
| ETIM 7.0 (eCl@ss) | EC000897 |
| Note (Dimensions) | Connection bolts |
| UNSPSC 13.2 (ETIM) | 39121410 |
| UNSPSC 18.0 (ETIM) | 39121410 |
| UNSPSC 19.0 (ETIM) | 39121410 |
| UNSPSC 20.0 (ETIM) | 39121410 |
| UNSPSC 21.0 (ETIM) | 39121410 |
| UNSPSC 6.01 (ETIM) | 30211811 |
| Setpoint (Drawings) | 5 N |
| UNSPSC 12.01 (ETIM) | 39121410 |
| ASD level (Drawings) | 6.12 (m/s2)2/Hz |
| Nambari ya ushuru maalum | 85369010 |
| UNSPSC 7.0901 (ETIM) | 39121410 |
| Shock form (Drawings) | Half-sine |
| Urefu NS 32 (Jumla) | 57 mm |
| Kiasi cha chini cha oda | 50 pc |
| Acceleration (Drawings) | 30g |
| Muunganisho (Vipimo) | 1 level |
| Test spectrum (Drawings) | Service life test category 2, bogie-mounted |
| Upana wa kifuniko cha mwisho (Jumla) | 1.5 mm |
| Urefu NS 35/15 (Jumla) | 59.5 mm |
| Uzi wa skrubu (Vipimo) | M4 |
| Shock duration (Drawings) | 18 ms |
| Test frequency (Drawings) | f1= 5 Hz to f2= 250 Hz |
| Kipenyo cha boliti (Vipimo) | 4 mm |
| Urefu NS 35/7,5 (Jumla) | 52 mm |
| Open side panel (Drawings) | Yes |
| Test directions (Drawings) | X-, Y- and Z-axis (pos. and neg.) |
| Idadi ya viwango (Michoro) | 1 |
| Finger protection (Drawings) | Not guaranteed |
| Shock test result (Drawings) | Test passed |
| eCl@ss 4.0 (Uainishaji) | 27141126 |
| eCl@ss 4.1 (Uainishaji) | 27141126 |
| eCl@ss 5.0 (Uainishaji) | 27141126 |
| eCl@ss 5.1 (Uainishaji) | 27141126 |
| eCl@ss 6.0 (Uainishaji) | 27141126 |
| eCl@ss 7.0 (Uainishaji) | 27141126 |
| eCl@ss 8.0 (Uainishaji) | 27141120 |
| eCl@ss 9.0 (Uainishaji) | 27141120 |
| Bending test turns (Drawings) | 135 |
| Nominal current IN (Drawings) | 41 A |
| Nominal voltage UN (Drawings) | 1000 V (the nominal voltage applies to insulated cable lugs) |
| Short-time current (Drawings) | 0.72 kA |
| Mbinu ya muunganisho (Vipimo) | Bolt connection |
| Kiwango cha uchafuzi (Michoro) | 3 |
| Insulating material (Drawings) | PA |
| Rated surge voltage (Drawings) | 8 kV |
| Tensile test result (Drawings) | Test passed |
| Maximum load current (Drawings) | 41 A (with 6 mm² conductor cross section) |
| Kategoria ya volteji kupita kiasi (Michoro) | III |
| Tight fit on carrier (Drawings) | NS 32/NS 35 |
| Kipenyo cha shimo, kiwango cha chini (Vipimo) | 4.3 mm |
| Nominal cross section (Drawings) | 6 mm² |
| Idadi ya miunganisho (Michoro) | 2 |
| Result of bending test (Drawings) | Test passed |
| Result of thermal test (Drawings) | Test passed |
| Test duration per axis (Drawings) | 5 h |
| Upana wa kebo, upeo. (Vipimo) | 9.6 mm |
| Kiwango cha juu cha kukaza torque (Vipimo) | 1.8 Nm |
| Tractive force setpoint (Drawings) | 80 N |
| Kukaza torque, kiwango cha chini (Vipimo) | 1.5 Nm |
| Uzito kwa Kipande (bila kujumuisha upakiaji) | 0.000 g |
| Requirements, voltage drop (Drawings) | ≤ 3.2 mV |
| Back of the hand protection (Drawings) | guaranteed |
| Bending test rotation speed (Drawings) | 10 rpm |
| REACh SVHC (Viwango na Kanuni) | Lead 7439-92-1 |
| Result of voltage-drop test (Drawings) | Test passed |
| Surge voltage test setpoint (Drawings) | 9.8 kV |
| Result of surge voltage test (Drawings) | Test passed |
| NF F16-101, NF F10-102 Class F (Drawings) | 2 |
| NF F16-101, NF F10-102 Class I (Drawings) | 2 |
| Number of shocks per direction (Drawings) | 3 |
| Result of tight fit on support (Drawings) | Test passed |
| Short circuit stability result (Drawings) | Test passed |
| Test specification, shock test (Drawings) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Note regarding shock protection (Drawings) | Electric shock protection only with insulated cable lug guaranteed. |
| Result of temperature-rise test (Drawings) | Test passed |
| Oxygen index (DIN EN ISO 4589-2) (Drawings) | >32 % |
| Sehemu ya msalaba ya kondakta AWG ya juu zaidi. (Vipimo) | 12 |
| Sehemu ya msalaba ya kondakta AWG ya chini (Vipimo) | 26 |
| Muunganisho katika acc. na kiwango (Vipimo) | IEC 60947-7-1 |
| Shock protection test specification (Drawings) | IEC 60529:2001-02 |
| Upeo wa juu wa sehemu nzima ya kondakta. (Vipimo) | 6 mm² |
| Sehemu nzima ya kondakta, sehemu ya chini kabisa (Vipimo) | 0.1 mm² |
| Conductor cross section tensile test (Drawings) | 6 mm² |
| Flame test method (DIN EN 60695-11-10) (Drawings) | V0 |
| Flammability rating according to UL 94 (Drawings) | V0 |
| Smoke gas toxicity NFPA 130 (SMP 800C) (Drawings) | passed |
| Sehemu ya juu inayonyumbulika ya kondakta. (Vipimo) | 6 mm² |
| Sehemu ya chini inayonyumbulika ya kondakta (Vipimo) | 0.1 mm² |
| Muunganisho katika akaunti na (data ya muunganisho) | IEC 60947-7-1 |
| Oscillation, broadband noise test result (Drawings) | Test passed |
| Power frequency withstand voltage setpoint (Drawings) | 2.2 kV |
| Surface flammability NFPA 130 (ASTM E 162) (Drawings) | passed |
| Bending test conductor cross section/weight (Drawings) | 0.14 mm² / 0.2 kg |
| Muunganisho wa kebo kulingana na kiwango (Vipimo) | DIN 46237:1970-07 |
| Sehemu ya juu zaidi ya kondakta wa AWG, inayonyumbulika (Vipimo) | 10 |
| Sehemu ya chini ya kondakta wa AWG, inayonyumbulika (Vipimo) | 26 |
| Conductor cross section short circuit testing (Drawings) | 6 mm² |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Data ya muunganisho) | V0 |
| Sehemu ya juu zaidi ya kuunganisha kebo ya waya (Vipimo) | 2.5 mm² |
| Sehemu ndogo ya msalaba kwa ajili ya muunganisho wa kebo ya mizigo (Vipimo) | 0.5 mm² |
| Static insulating material application in cold (Drawings) | -60 °C |
| Behavior in fire for rail vehicles (DIN 5510-2) (Drawings) | Test passed |
| Maximum power dissipation for nominal condition (Drawings) | 1.31 W |
| Calorimetric heat release NFPA 130 (ASTM E 1354) (Drawings) | 28 MJ/kg |
| Result of power-frequency withstand voltage test (Drawings) | Test passed |
| Test specification, oscillation, broadband noise (Drawings) | DIN EN 50155 (VDE 0115-200):2008-03 |
| Fire protection for rail vehicles (DIN EN 45545-2) R22 (Drawings) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R23 (Drawings) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R24 (Drawings) | HL 1 - HL 3 |
| Fire protection for rail vehicles (DIN EN 45545-2) R26 (Drawings) | HL 1 - HL 3 |
| Specific optical density of smoke NFPA 130 (ASTM E 662) (Drawings) | passed |
| Relative insulation material temperature index (Elec., UL 746 B) (Drawings) | 130 °C |
| Proof of thermal characteristics (needle flame) effective duration (Drawings) | 30 s |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) (Drawings) | 130 °C |
| Sehemu ya msalaba ya kondakta inaweza kunyumbulika, ikiwa na kipete chenye kifuko cha plastiki cha juu zaidi. (Vipimo) | 6 mm² |
| Sehemu ya msalaba ya kondakta inaweza kunyumbulika, ikiwa na kipete chenye sehemu ya chini ya mkono wa plastiki. (Vipimo) | 0.1 mm² |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) (Drawings) | Test passed |
Maelezo ya Bidhaa
Feed-in terminal, with threaded sockets for test sockets to accommodate test pins, nominal voltage: 1000 V, nominal current: 41 A, number of connections: 2, connection type: Stud connection, 1st floor
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Circuit diagram
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
