NBC-MSD/ 8,1-939/R4AQ SCO RAIL
NBC-MSD/ 8,1-939/R4AQ SCO RAIL 1081290 PHOENIX CONTACT Network cable, PROFINET CAT5 (100 Mbps), 4-position, ..
$0.00USD
3673 kwenye hisa
Vipimo Muhimu
GTIN:4055626809908
Ufunguo wa kuagiza:1081290
(Michoro):
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626809908 |
| Ufunguo wa kuagiza | 1081290 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | 60 V DC |
| Kumbuka (Hali ya mazingira) | The cable is 100% electrically tested for continuity. |
| Length of cable (Drawings) | 8.1 m |
| (Viwango na Kanuni) | -25 °C ... 70 °C (cable, flexible installation) |
| eCl@ss 9.0 (Uainishaji) | 27060308 |
| Volti iliyokadiriwa (Hali ya mazingira) | 48 V AC |
| Nyenzo ya mguso (Hali ya mazingira) | CuSn |
| Kulinda (Viwango na Kanuni) | Aluminum-lined polyester foil, tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PROFINET railway applications |
| Upunguzaji (Viwango na Kanuni) | 1.5 dB (with 1 MHz) |
| Viwango/vipimo (Data ya jumla) | M12 connector IEC 61076-2-101 |
| Rangi za waya (Viwango na Kanuni) | white-blue, orange-yellow |
| Uzito wa kebo (Viwango na Kanuni) | 71 kg/km |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Haina Halojeni (Viwango na Kanuni) | According to EN 50267-2-1 |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Kasi ya mawimbi (Viwango na Kanuni) | 0.75 c |
| Mzunguko wa jumla (Viwango na Kanuni) | Star quad |
| Kategoria ya volteji kupita kiasi (Hali za mazingira) | II |
| Aina/kategoria ya ishara (Hali za mazingira) | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Uwezo wa kebo (Viwango na Kanuni) | 44 nF/km (core-core) |
| Muda wa utekelezaji wa ishara (Viwango na Kanuni) | 4.4 ns/m |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-101 |
| Kizuizi cha wimbi (Viwango na Kanuni) | 100 Ω ±5 Ω (f = 100 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 22 |
| Kizuizi cha kebo (Viwango na Kanuni) | 100 Ω ±15 Ω (f = 0.5 MHz ... 3 MHz) |
| Muundo wa kebo (Viwango na Kanuni) | 1x4xAWG22/7; SF/TQ |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 85 °C (M12 connector) |
| Upinzani wa moto (Viwango na Kanuni) | according to EN 60332-1-2 |
| Upinzani mwingine (Viwango na Kanuni) | Resistant to fuel according to EN 60684-2, 72 h at 100 °C, IRM 903 |
| Hasara ya marejesho (RL) (Viwango na Kanuni) | 25 dB (with 1 MHz) |
| Nyenzo ya mtoa huduma ya mawasiliano (Hali ya mazingira) | TPU GF |
| Nyenzo ya uso iliyogusana (Hali ya mazingira) | Ni/Au |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | according to EN 60684-2, 72 h at 100 °C, IRM 902 |
| Nyenzo ya kondakta (Viwango na Kanuni) | Tin-plated Cu litz wires |
| Upunguzaji wa ngao (Viwango na Kanuni) | 60 dB (up to 1000 MHz) |
| Upinzani wa kuunganisha (Viwango na Kanuni) | < 13.00 mΩ/m (f = 1 MHz) |
| Upinzani wa kondakta (Viwango na Kanuni) | ≤ 54.4 Ω/km |
| Aina/kategoria ya ishara (Viwango na Kanuni) | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Nguvu ya mvutano GRP (Viwango na Kanuni) | ≤ 60 N (temporary) |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 5 GΩ*km |
| Mkusanyiko wa moshi (Viwango na Kanuni) | EN 61034-2 |
| Ala ya nje, rangi (Viwango na Kanuni) | black |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 125 V |
| Unene wa ala ya nje (Viwango na Kanuni) | 1 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PE-X |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 1000 V AC (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 4x 0.34 mm² |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 1000 V AC (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 939 |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.6 mm ±0.2 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Takwimu ya jumla) | V0 |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | Cell PE |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 85 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 7x 0.25 mm |
| Dimensional drawingRJ45 Push-Pull connector, IP67 (Drawings) | |
| Ulinzi wa moto katika magari ya reli (Viwango na Kanuni) | BS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II) |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.4 mm ±0.1 mm |
| Schematic diagramConnector pin assignment plug RJ45 (Drawings) | |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) (Viwango na Kanuni) | 76 dB (with 1 MHz) |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 6 x D |
| Upunguzaji wa mazungumzo ya karibu na mwisho (PSNEXT) unaofupishwa kwa nguvu (Viwango na Kanuni) | 73 dB (with 1 MHz) |
Maelezo ya Bidhaa

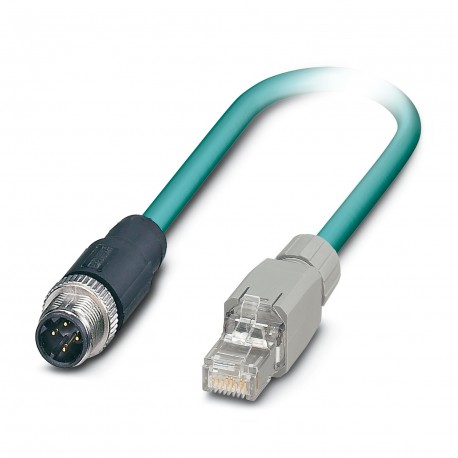

Network cable, PROFINET CAT5 (100 MBit/s), 4-pole halogen-free, shielded, M12 straight connector, coding: D SPEEDCON / IP65, to RJ45 / IP67 straight connector, cable length: 8.1 m, Item tested accordi
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Dimensional drawingRJ45 Push-Pull connector, IP67
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
