NBC-MSD/21,5-939/QCFS SCO

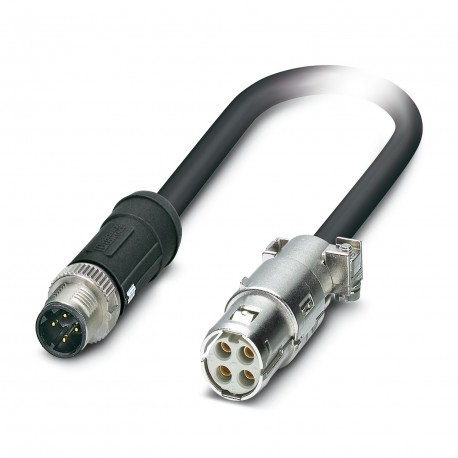

NBC-MSD/21,5-939/QCFS SCO 1425181 PHOENIX CONTACT Network Cable NBC-MSD/21,5-939/QCFS SCO 1425181
$0.00USD
4834 kwenye hisa
Vipimo Muhimu
:Ethernet
Aina:Plug straight M12 SPEEDCON / IP65
Usimbaji:D
Jumla:EMC connector consisting of socket insert 1636091 HC-M-EMV-BU/3-9,5 and socket contacts 1674969 CK1,6-ED-0,37BU AU
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Ethernet | |
| Aina | Plug straight M12 SPEEDCON / IP65 |
| Usimbaji | D |
| Jumla | EMC connector consisting of socket insert 1636091 HC-M-EMV-BU/3-9,5 and socket contacts 1674969 CK1,6-ED-0,37BU AU |
| Nyenzo | CuSn (Contact) |
| Imehifadhiwa | yes |
| Mfumo wa basi | PROFINET |
| Aina ya kebo | PROFINET BETAtrans® railway application CAT5 [939] |
| Maombi | Railway applications |
| Aina ya vitambuzi | PROFINET |
| Urefu wa kebo | 21.5 m |
| Uzito wa kebo | 71 kg/km |
| Haina halojeni | in accordance with EN 50267-2-1 |
| Rangi ya mpini | black |
| Aina ya kufunga | SPEEDCON |
| Aina ya bidhaa | Data cable preassembled |
| Kasi ya mawimbi | 0.75 c |
| Mzunguko wa jumla | Star quad |
| Uwezo wa kebo | 44 nF/km (Line-line) |
| Muda wa utekelezaji wa ishara | 4.4 ns/m |
| Onyesho la hali | no |
| Kizuizi cha wimbi | 100 Ω ±5 Ω (f = 100 MHz) |
| Mstari wa ishara wa AWG | 22 |
| Kizuizi cha kebo | 100 Ω ±15 Ω (f = 0.5 MHz ... 3 MHz) |
| Upinzani wa moto | in accordance with EN 60332-1-2 |
| Upinzani mwingine | Resistant to fuel (in accordance with EN 50306-4, 168 hours at 70°C, IRM 903) |
| Nguvu ya mvutano | ≤ 60 N (temporary) |
| Upinzani dhidi ya mafuta | in accordance with EN 50306-4, 72 hours at 100°C, IRM 902 |
| Kukaza torque | 0.4 Nm |
| Nyenzo ya kondakta | Tin-plated Cu litz wires |
| Mkondo wa nominella IN | 4 A |
| Volti ya kawaida ya Umoja wa Mataifa | 48 V AC |
| Upunguzaji wa ngao | 1.5 dB (with 1 MHz) |
| Waya moja, rangi | white-blue, orange-yellow |
| Muundo wa kondakta | 1x4xAWG22/7, SF/TQ |
| Upinzani wa kuunganisha | < 13.00 mΩ/m (f = 1 MHz) |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | |
| Idadi ya nafasi | 4 |
| Njia ya maambukizi | Copper |
| Kiwango cha ulinzi | IP65 |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Aina/kategoria ya ishara | PROFINET CAT5 (IEC 11801:2002), 100 Mbps |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | ≥ 100 MΩ |
| Mkusanyiko wa moshi | EN 61034-2 |
| Ala ya nje, rangi | black |
| Volti ya kawaida, kebo | 125 V |
| Ala ya nje, nyenzo | PE-X |
| Onyesho la hali linapatikana | No |
| Kiini/Kiini cha volteji cha jaribio | 1000 V AC (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta | 4x 0.34 mm² |
| Kipenyo cha kebo ya nje | 6.60 mm ±0.2 mm |
| Upunguzaji wa marejesho (RL) | 25 dB (with 1 MHz) |
| Unene, ala ya nje | 1.00 mm |
| Uzuiaji wa waya wa nyenzo | Cell PE |
| Viwango/vipimo | IEC 61076-2-101 |
| Kiini/Ngao ya Volti ya Jaribio | 1000.00 V AC (50 Hz, 1 min.) |
| Upinzani wa juu zaidi wa kondakta | ≤ 54.4 Ω/km |
| Mizunguko ya kuingiza/kutoa | ≥ 100 (Quantity: 500 with Phoenix Contact mating connector) |
| Kipenyo cha waya ikijumuisha insulation | 1.4 mm ±0.1 mm |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 85 °C |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.25 mm |
| Ulinzi wa moto katika magari ya reli | BS 6853 (Internal cable Ia, Ib, II/external cable Ia, Ib, II) |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) | 76 dB (with 1 MHz) |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Sifa za upitishaji (kitengo) | CAT5 (IEC 11801:2002) |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika | 5 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 33 mm |
| Kiwango cha chini cha kuinama, usakinishaji rahisi | 6 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 40 mm |
| Upunguzaji wa mazungumzo ya karibu na mwisho kwa kutumia nguvu (PSNEXT) | 73 dB (with 1 MHz) |
Maelezo ya Bidhaa
Network cable, PROFINET CAT5 (100 Mbps), PROFINET CAT5 (100 Mbps), Ethernet CAT5 (100 Mbps), 4-position, PE-X halogen-free, black, shielded, Plug straight M12 SPEEDCON / IP65, on EMC socket insert str
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
