NBC-M12MSX/ 5,0-94F

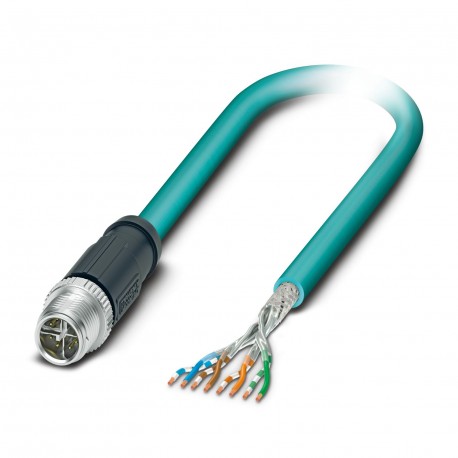

NBC-M12MSX/ 5,0-94F 1407469 PHOENIX CONTACT Network cable
$0.00USD
3181 kwenye hisa
Vipimo Muhimu
:CC-Link IE CAT6A, 10 Gbps
Aina:M12 Plug, straight, 8-position, shielded (Advanced Shielding Technology), Keying: X
Usimbaji:X
Jumla:Further products with variable cable type and variable cable length can be found in the accessories section
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| CC-Link IE CAT6A, 10 Gbps | |
| Aina | M12 Plug, straight, 8-position, shielded (Advanced Shielding Technology), Keying: X |
| Usimbaji | X |
| Jumla | Further products with variable cable type and variable cable length can be found in the accessories section |
| Imehifadhiwa | yes |
| Kulinda | Advanced Shielding Technology |
| Mfumo wa basi | Ethernet |
| Aina ya kebo | Ethernet 10 Gbit [94F] |
| Maombi | Standard |
| Aina ya vitambuzi | Ethernet |
| Urefu wa kebo | 5 m |
| Uzito wa kebo | 42 kg/km |
| Haina halojeni | according to IEC 60754-1 |
| Aina ya bidhaa | Data cable preassembled |
| Mtindo wa UL AWM | 20963 (80°C/30 V) |
| Muhuri wa Nyenzo | FKM |
| Mzunguko wa jumla | 4 pairs for core |
| Jozi zilizopinda | 2 cores to the pair |
| Uwezo wa kebo | 47 nF/km |
| Muda wa utekelezaji wa ishara | 5.13 ns/m |
| Onyesho la hali | no |
| Kizuizi cha wimbi | 100 Ω ±5 Ω (at 100 MHz) |
| Mstari wa ishara wa AWG | 26 |
| Upinzani wa kitanzi | ≤ 290.00 Ω/km |
| Marekebisho ya makala | 09 |
| Upinzani wa moto | according to IEC 60332-1-2 |
| Mawasiliano ya Nyenzo | CuZn |
| Nguvu ya mvutano | ≤ 100 N |
| Upinzani dhidi ya mafuta | in accordance with DIN EN 60811-2-1 |
| Kukaza torque | 0.4 Nm (M12 connector) |
| Nyenzo ya kondakta | Bare Cu litz wires |
| Mwili wa Kushikilia Nyenzo | TPU, hardly inflammable, self-extinguishing |
| Mkondo wa nominella IN | 0.5 A |
| Volti ya kawaida ya Umoja wa Mataifa | 48 V AC |
| Upunguzaji wa ngao | 3.1 dB (with 1 MHz) |
| Waya moja, rangi | white/blue-blue, white/orange-orange, white/green-green, white/brown-brown |
| Muundo wa kondakta | 4x2xAWG26/7; S/FTP |
| Kiwango cha uchafuzi wa mazingira | 3 |
| Mchoro wa vipimo | Pin assignment of M12 plug, 8-pos., X-coded, pin side view |
| Idadi ya nafasi | 8 |
| Njia ya maambukizi | Copper |
| Kiwango cha ulinzi | IP65 |
| Idadi ya soketi za kebo | 1 |
| Kategoria ya volteji nyingi | II |
| Aina/kategoria ya ishara | Ethernet CAT6A, 10 Gbps |
| Uteuzi wa kawaida | M12 connector |
| Upinzani wa insulation | ≥ 100 Ω |
| Viwango/kanuni | IEC 61076-2-109 |
| Ala ya nje, rangi | water blue RAL 5021 |
| Volti ya kawaida, kebo | ≤ 100 V |
| Ala ya nje, nyenzo | PUR |
| Onyesho la hali linapatikana | No |
| Kiini/Kiini cha volteji cha jaribio | 700 V (50 Hz, 1 min.) |
| Aina ya ngao ya jozi | Aluminum-lined foil |
| Sehemu ya msalaba ya kondakta | 4x 2x 0.14 mm² |
| Kipenyo cha kebo ya nje | 6.40 mm ±0.2 mm |
| Kifuniko cha ngao ya macho | 70 % |
| Upunguzaji wa marejesho (RL) | 20 dB (with 1 MHz) |
| Unene, ala ya nje | 0.65 mm |
| Mtoa huduma wa Mawasiliano ya Nyenzo | PA 6.6 |
| Uso wa mguso wa nyenzo | Ni/Au |
| Uzuiaji wa waya wa nyenzo | Foamed PE |
| Viwango/vipimo | IEC 61076-2-109 |
| Kiini/Ngao ya Volti ya Jaribio | 700.00 V (50 Hz, 1 min.) |
| Muunganisho wa skrubu za nyenzo | Die-cast zinc, nickel-plated |
| Mizunguko ya kuingiza/kutoa | ≥ 100 |
| Kipenyo cha waya ikijumuisha insulation | 1.04 mm |
| Halijoto ya mazingira (uendeshaji) | -25 °C ... 85 °C |
| Mstari wa ishara ya muundo wa kondakta | 7x 0.16 mm |
| Halijoto ya kawaida (usakinishaji) | -20 °C ... 80 °C |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) | 75.3 dB (with 1 MHz) |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Sifa za upitishaji (kitengo) | CAT6A |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika | 4 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji usiobadilika | 26 mm |
| Kiwango cha chini cha kuinama, usakinishaji rahisi | 8 x D |
| Radi ndogo zaidi ya kupinda, usakinishaji unaoweza kusongeshwa | 52 mm |
| Upunguzaji wa mazungumzo ya karibu na mwisho kwa kutumia nguvu (PSNEXT) | 72.3 dB (with 1 MHz) |
Maelezo ya Bidhaa
Network cable, Ethernet CAT6A (10 GBit/s), CC-Link IE CAT6A (10 GBit/s), 8-pole halogen-free, shielded (Advanced Shielding Technology), Straight M12 connector, encoding: X / IP67, to free cable end, e
