NBC-M12MRD/15,0-93P/R4AQ
NBC-M12MRD/15,0-93P/R4AQ 1417986 PHOENIX CONTACT Network cable NBC-M12MRD/15,0-93P/R4AQ 1417986
$0.00USD
3856 kwenye hisa
Vipimo Muhimu
GTIN:4055626200613
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1417986
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626200613 |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1417986 |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | -5 °C ... 50 °C (cable, flexible installation) |
| (Takwimu za jumla) | Zinc die-cast, nickel-plated (Screw connection) |
| ETIM 5.0 (eCl@ss) | EC000830 |
| ETIM 6.0 (eCl@ss) | EC000830 |
| ETIM 7.0 (eCl@ss) | EC003249 |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | Lead 7439-92-1 |
| UNSPSC 13.2 (ETIM) | 26121604 |
| Rangi (Data ya jumla) | black |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | 60 V DC |
| Torque (Data ya jumla) | 0.4 Nm |
| Aina ya kichwa (Data ya jumla) | Plug angled M12 / IP67 |
| (Kichwa cha sifa 1) | PA GF (Housing) |
| (Viwango na Kanuni) | ≤ 450 V DC |
| eCl@ss 5.1 (Uainishaji) | 19030300 |
| eCl@ss 6.0 (Uainishaji) | 27061800 |
| eCl@ss 7.0 (Uainishaji) | 27061801 |
| eCl@ss 8.0 (Uainishaji) | 27061801 |
| eCl@ss 9.0 (Uainishaji) | 27061801 |
| Rangi (Kichwa cha Sifa 1) | black |
| Aina ya kichwa (Tabia kichwa 1) | Plug straight RJ45 Push Pull / IP67 |
| Volti iliyokadiriwa (Hali ya mazingira) | 48 V AC |
| Nyenzo (kipengele) (Data ya jumla) | CuZn (Contact) |
| Upinzani wa insulation (Data ya jumla) | ≥ 100 MΩ |
| Nyenzo ya mguso (Hali ya mazingira) | CuSn |
| Nyenzo za makazi (Hali ya mazingira) | Plastic |
| Urefu wa kebo (Data Muhimu ya Biashara) | 15 m |
| Kulinda (Viwango na Kanuni) | Tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | Ethernet |
| Rangi za waya (Viwango na Kanuni) | white/orange-orange, white/green-green |
| Kiwango cha uchafuzi wa mazingira (Hali ya mazingira) | 3 |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Kasi ya mawimbi (Viwango na Kanuni) | 0.6 c |
| Mtindo wa UL AWM (Viwango na Kanuni) | 2654 (90 °C / 300 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | Two pairs with two fillers to the core |
| Aina/kategoria ya ishara (Hali za mazingira) | Ethernet CAT5 (IEC 11801:2002) |
| Jozi zilizosokotwa (Viwango na Kanuni) | 2 cores to the pair |
| Mizunguko ya kuingiza/kutoa (Data ya jumla) | ≥ 100 |
| Muda wa utekelezaji wa ishara (Viwango na Kanuni) | 0.4 ns/m |
| Viwango/kanuni (Mazingira ya Mazingira) | M12 connector IEC 61076-2-101 |
| Kizuizi cha wimbi (Viwango na Kanuni) | 100 Ω ±5 % (at 100 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 26 |
| Muundo wa kebo (Viwango na Kanuni) | 2x2xAWG26/7; SF/UTP |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 85 °C (M12 connector) |
| Upinzani wa moto (Viwango na Kanuni) | According to VW-1 |
| Upinzani mwingine (Viwango na Kanuni) | Resistant to cleaning agents/disinfectants According to ECOLAB F&E/P3-E No. 40-1 |
| Nyenzo ya mtoa huduma ya mawasiliano (Hali ya mazingira) | TPU GF |
| Nyenzo ya uso iliyogusana (Hali ya mazingira) | Ni/Au |
| Nyenzo (kipengele) (Kichwa cha Sifa 1) | CuSn (Contact) |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | in accordance with DIN EN 60811-2-1 |
| Uteuzi wa kawaida (Kichwa cha Sifa 2) | M12 connector |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Upunguzaji wa ngao (Viwango na Kanuni) | 32 dB (up to 100 MHz) |
| Viwango/kanuni (Kichwa cha Sifa 2) | IEC 61076-2-101 |
| Uwezo wa kufanya kazi (Viwango na Kanuni) | < 56 nF |
| Upinzani wa kondakta (Viwango na Kanuni) | ≤ 140 Ω/km |
| Aina/kategoria ya ishara (Viwango na Kanuni) | Ethernet CAT5 (IEC 11801), 100 Mbps |
| Nguvu ya mvutano GRP (Viwango na Kanuni) | ≤ 40 N |
| Upinzani wa insulation (Viwango na Kanuni) | > 5 GΩ*km |
| Ala ya nje, rangi (Viwango na Kanuni) | water blue RAL 5021 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 300 V AC |
| Unene wa ala ya nje (Viwango na Kanuni) | ≥ 1 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PVC |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 2500 V DC |
| Aina ya ngao ya jozi (Viwango na Kanuni) | Aluminum-lined polyester foil |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 2x 2x 0.14 mm² |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Mizunguko ya kuingiza/kutoa (Kichwa cha Sifa 1) | ≥ 750 |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 93P |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.4 mm ±0.2 mm |
| Idadi ya nafasi (muundo wa kiunganishi cha pini) (Data ya jumla) | 4 |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PP |
| Maelezo mafupi mbadala ya bidhaa (Hali ya mazingira) | Ethernet cable |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 90 °C |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 7x 0.16 mm |
| Halijoto ya kawaida (usakinishaji) (Viwango na Kanuni) | 0 °C ... 50 °C |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 0.98 mm ±0.05 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Kichwa cha Sifa 2) | V2 |
| Idadi ya nafasi (muundo wa kiunganishi cha pini) (Kichwa cha Sifa 1) | 4 (8) |
| Radi ndogo zaidi ya kupinda, usakinishaji unaohamishika (Viwango na Kanuni) | 25 mm |
Maelezo ya Bidhaa

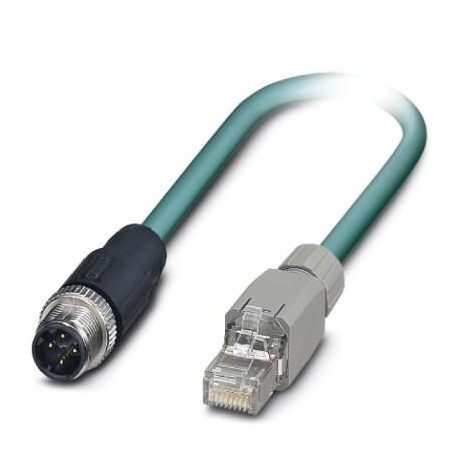

Network cable, CAT5 Ethernet CAT5 (100 MBit/s), 4-pole, M12 angled connector, coding: D / IP67, to RJ45 Push-pull / IP67 straight connector, cable length: 15 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Network cable, Ethernet CAT5 CAT5 (100 Mbps), 4-position, PVC, water blue RAL 5021, Plug angled M12 / IP67, on Plug straight RJ45 Push Pull / IP67, cable length: 15 m
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
