NBC-M 8MS/ 5,0-93C/M 8MS

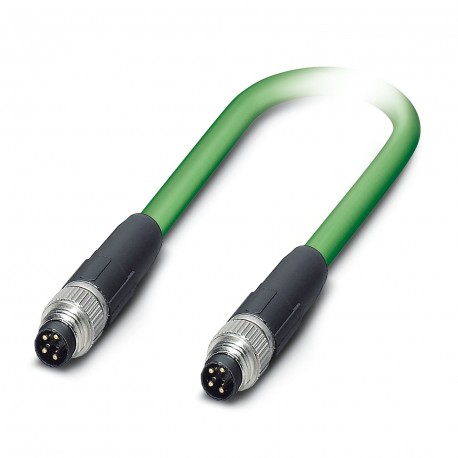

NBC-M 8MS/ 5,0-93C/M 8MS 1426304 PHOENIX CONTACT Network cable NBC-M 8MS/ 5,0-93C/M 8MS 1426304
$0.00USD
4168 kwenye hisa
Vipimo Muhimu
GTIN:4055626458021
(Kebo):For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration”
Ufunguo wa kuagiza:1426304
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626458021 |
| (Kebo) | For details about hazardous substances go to tab “Downloads”, Category “Manufacturer's declaration” |
| Ufunguo wa kuagiza | 1426304 |
| Kitengo cha kufungasha | 1 |
| (Takwimu za jumla) | Zinc die-cast, nickel-plated (Screw connection) |
| ETIM 7.0 (eCl@ss) | EC001262 |
| RoHS ya China (Kebo) | Environmentally Friendly Use Period = 50 |
| REAch SVHC (Kebo) | |
| Rangi (Data ya jumla) | black |
| Nambari ya ushuru maalum | 85444290 |
| (Hali ya mazingira) | EtherCAT®, 100 Mbps |
| Usimbaji (Data ya jumla) | A (Standard) |
| Torque (Data ya jumla) | 0.2 Nm |
| Aina ya kichwa (Data ya jumla) | Plug straight M8 / IP67 |
| (Kichwa cha sifa 1) | Zinc die-cast, nickel-plated (Screw connection) |
| (Viwango na Kanuni) | -40 °C ... 70 °C (cable, flexible installation) |
| eCl@ss 7.0 (Uainishaji) | 27060308 |
| eCl@ss 9.0 (Uainishaji) | 27060308 |
| Rangi (Kichwa cha Sifa 1) | black |
| Uandishi wa msimbo (Kichwa cha Sifa 1) | A (Standard) |
| Torque (Kichwa cha Sifa 1) | 0.2 Nm |
| Aina ya kichwa (Tabia kichwa 1) | Plug straight M8 / IP67 |
| Volti iliyokadiriwa (Hali ya mazingira) | 30 V AC |
| Nyenzo (kipengele) (Data ya jumla) | CuSn (Contact) |
| Upinzani wa insulation (Data ya jumla) | ≥ 100 MΩ |
| Nyenzo ya mguso (Hali ya mazingira) | CuSn |
| Urefu wa kebo (Data Muhimu ya Biashara) | 5 m |
| Kulinda (Viwango na Kanuni) | Aluminum-coated foil, tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PROFINET drag chain CAT5 |
| Upunguzaji (Viwango na Kanuni) | 2.1 dB (with 1 MHz) |
| Rangi za waya (Viwango na Kanuni) | White, yellow, blue, orange |
| Kuongeza Kasi (Viwango na Kanuni) | 4 m/s² |
| Uzito wa kebo (Viwango na Kanuni) | 61 kg/km |
| Haina Halojeni (Viwango na Kanuni) | yes |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Kasi ya mawimbi (Viwango na Kanuni) | 0.66 c |
| Mzunguko wa jumla (Viwango na Kanuni) | Star quad |
| Aina/kategoria ya ishara (Hali za mazingira) | Ethernet, 100 Mbps |
| Nguvu ya Msukumo (Viwango na Kanuni) | ± 30 °/m |
| Radi ya kupinda (Viwango na Kanuni) | 100 mm |
| Mizunguko ya kuingiza/kutoa (Data ya jumla) | ≥ 100 |
| Muda wa utekelezaji wa ishara (Viwango na Kanuni) | 5.3 ns/m |
| Viwango/kanuni (Mazingira ya Mazingira) | M8 connector IEC 61076-2-104 |
| Kizuizi cha wimbi (Viwango na Kanuni) | 100 Ω ±15 Ω (at 1 ... 100 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 22 |
| Muundo wa kebo (Viwango na Kanuni) | 1x4xAWG22/7; SF/TQ |
| Upinzani wa kitanzi (Viwango na Kanuni) | ≤ 120.00 Ω/km |
| Mkondo uliokadiriwa kwa 40°C (Hali ya mazingira) | 4 A |
| Njia ya kupita (Viwango na Kanuni) | 10 m |
| Kiwango cha kupita (Viwango na Kanuni) | 4 m/s |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -25 °C ... 90 °C (Plug / socket) |
| Upinzani wa moto (Viwango na Kanuni) | according to IEC 60332-1-2 |
| Upinzani mwingine (Viwango na Kanuni) | UV resistant |
| Uwekaji lebo wa bidhaa (Viwango na Kanuni) | "sequential length in metres" PN-CABLE-934-C / PUR-4X22AWG/7 Trailing * 22AWG (SHIELDED) (UL) E119100 CMX 75°C VERIFIED (UL) CAT 5E PATCH CABLE FRNC * (Cable printing cable supplier) |
| Nyenzo ya mtoa huduma ya mawasiliano (Hali ya mazingira) | TPU GF |
| Nyenzo ya uso iliyogusana (Hali ya mazingira) | Ni/Au |
| Nyenzo (kipengele) (Kichwa cha Sifa 1) | CuSn (Contact) |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | in accordance with DIN EN 60811-2-1 |
| Uteuzi wa kawaida (Kichwa cha Sifa 2) | M8 connector |
| Halijoto ya mazingira (uendeshaji) (Data ya jumla) | -25 °C ... 90 °C |
| Nyenzo ya kondakta (Viwango na Kanuni) | Tin-plated Cu litz wires |
| Upinzani wa insulation (Kichwa cha Sifa 1) | ≥ 100 MΩ |
| Mali maalum (Viwango na Kanuni) | Electrical properties according to EN 50288-2-2 |
| Viwango/kanuni (Kichwa cha Sifa 2) | IEC 61076-2-104 |
| Upinzani wa kuunganisha (Viwango na Kanuni) | ≤ 20.00 mΩ/m (at 10 MHz) |
| Aina/kategoria ya ishara (Viwango na Kanuni) | PROFINET CAT5 (IEC 11801), 100 Mbps |
| Nguvu ya mvutano GRP (Viwango na Kanuni) | ≤ 150 N |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 500 MΩ*km |
| Ala ya nje, rangi (Viwango na Kanuni) | green RAL 6018 |
| Nyenzo, ala ya ndani (Viwango na Kanuni) | FRNC |
| Volti ya kawaida, kebo (Viwango na Kanuni) | 600 V (UL rating) |
| Unene wa ala ya nje (Viwango na Kanuni) | approx. 0.9 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 4x 0.34 mm² |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 85 % |
| Mizunguko ya kuingiza/kutoa (Kichwa cha Sifa 1) | ≥ 100 |
| Idadi ya mizunguko ya kupinda (Viwango na Kanuni) | 3000000 |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 2000 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 93C |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.5 mm ±0.2 mm |
| Idadi ya nafasi (muundo wa kiunganishi cha pini) (Data ya jumla) | 4 |
| Halijoto ya kawaida (uendeshaji) (Kichwa cha Sifa 1) | -25 °C ... 90 °C |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | PE |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 70 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 7x 0.25 mm |
| Halijoto ya kawaida (usakinishaji) (Viwango na Kanuni) | -20 °C ... 60 °C |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 1.5 mm |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) (Viwango na Kanuni) | 80 dB (with 1 MHz) |
| Idadi ya nafasi (muundo wa kiunganishi cha pini) (Kichwa cha Sifa 1) | 4 |
| Halijoto ya kawaida (uhifadhi/usafiri) (Viwango na Kanuni) | -50 °C ... 70 °C |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 5 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 7.5 x D |
Maelezo ya Bidhaa
Network cable, Ethernet (100 MBit/s), PROFINET (100 MBit/s), EtherCAT® (100 MBit/s), 4-pole halogen-free, shielded, M8 straight connector, encoding: A/IP67, a M8 straight connector, coding: A/IP67, ca
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Network cable, Ethernet (100 Mbps), PROFINET (100 Mbps), EtherCAT®(100 Mbps), 4-position, PUR/FRNC halogen-free, green RAL 6018, shielded, Plug straight M8 / IP67, coding: A, on Plug straight M8 / IP67, coding: A, cable length: 5 m
