NBC-500,0-93E

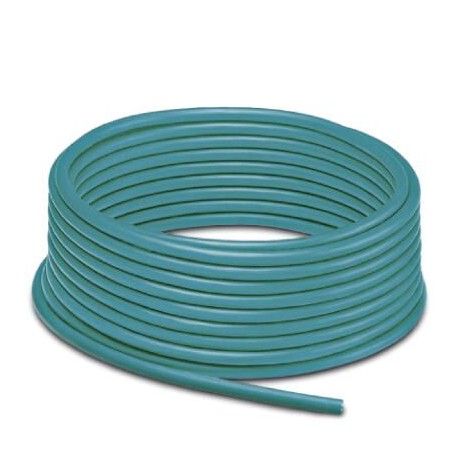

NBC-500,0-93E 1413181 PHOENIX CONTACT Cable ring, bus system cable, Ethernet, 4-wire, shielded, FRNC, blue o..
$0.00USD
4087 kwenye hisa
Vipimo Muhimu
GTIN:4046356989442
(Kebo):No hazardous substances above threshold values
Ufunguo wa kuagiza:1413181
(Michoro):
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4046356989442 |
| (Kebo) | No hazardous substances above threshold values |
| Ufunguo wa kuagiza | 1413181 |
| (Michoro) | |
| Kitengo cha kufungasha | 1 |
| (Vipimo) | -20 °C ... 80 °C (cable, flexible installation) |
| ETIM 4.0 (eCl@ss) | EC000830 |
| ETIM 5.0 (eCl@ss) | EC001855 |
| ETIM 6.0 (eCl@ss) | EC001855 |
| ETIM 7.0 (eCl@ss) | EC001855 |
| RoHS ya China (Kebo) | Environmentally friendly use period: unlimited = EFUP-e |
| UNSPSC 13.2 (ETIM) | 31251501 |
| UNSPSC 19.0 (ETIM) | 31251501 |
| UNSPSC 20.0 (ETIM) | 31251501 |
| UNSPSC 21.0 (ETIM) | 31251501 |
| Nambari ya ushuru maalum | 85444995 |
| (Hali ya mazingira) | Ethernet CAT5 (TIA 568B:2001) |
| Length of cable (Drawings) | 500 m |
| Haina halojeni (Data ya jumla) | according to IEC 60754-1 |
| (Viwango na Kanuni) | -20 °C ... 80 °C (cable, flexible installation) |
| eCl@ss 4.0 (Uainishaji) | 27060300 |
| eCl@ss 4.1 (Uainishaji) | 27060300 |
| eCl@ss 5.0 (Uainishaji) | 27061800 |
| eCl@ss 5.1 (Uainishaji) | 27061800 |
| eCl@ss 6.0 (Uainishaji) | 27279200 |
| eCl@ss 7.0 (Uainishaji) | 27279218 |
| eCl@ss 8.0 (Uainishaji) | 27279218 |
| eCl@ss 9.0 (Uainishaji) | 27060311 |
| Upinzani wa moto (Takwimu ya jumla) | IEC 60332-1-2 |
| Upinzani dhidi ya mafuta (Takwimu ya jumla) | in accordance with DIN EN 60811-2-1 |
| Volti iliyokadiriwa (Hali ya mazingira) | 30 V AC |
| Kulinda (Viwango na Kanuni) | Aluminum-coated foil, tinned copper braided shield |
| Aina ya kebo (Viwango na Kanuni) | PUR ETHERNET 2x2 FLEX |
| Upunguzaji (Viwango na Kanuni) | 3.2 dB (with 1 MHz) |
| Rangi za waya (Viwango na Kanuni) | white/orange-orange, white/green-green |
| Uzito wa kebo (Viwango na Kanuni) | 42 kg/km |
| Haina Halojeni (Viwango na Kanuni) | according to IEC 60754-1 |
| Idadi ya nafasi (Hali ya mazingira) | 4 |
| Mtindo wa UL AWM (Viwango na Kanuni) | 20963 (80°C/30 V) |
| Mzunguko wa jumla (Viwango na Kanuni) | Two pairs with two fillers to the core |
| Aina/kategoria ya ishara (Hali za mazingira) | Ethernet CAT5 (IEC 11801:2002) |
| Jozi zilizosokotwa (Viwango na Kanuni) | 2 cores to the pair |
| Uwezo wa kebo (Viwango na Kanuni) | approx. 45 nF/km (at 1 kHz) |
| Muda wa utekelezaji wa ishara (Viwango na Kanuni) | 5.3 ns/m |
| Kizuizi cha wimbi (Viwango na Kanuni) | 100 Ω ±5 Ω (at 100 MHz) |
| Mstari wa ishara wa AWG (Viwango na Kanuni) | 26 |
| Muundo wa kebo (Viwango na Kanuni) | 2x2xAWG26/7; SF/UTP |
| Upinzani wa kitanzi (Viwango na Kanuni) | ≤ 290.00 Ω/km |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 80 °C (cable, fixed installation) |
| Upinzani wa moto (Viwango na Kanuni) | according to IEC 60332-1-2 |
| Hasara ya marejesho (RL) (Viwango na Kanuni) | 23 dB (at 4 МHz) |
| Upinzani dhidi ya mafuta (Viwango na Kanuni) | according to EN 60811-2-1 |
| Nyenzo ya kondakta (Viwango na Kanuni) | Bare Cu litz wires |
| Upinzani wa kuunganisha (Viwango na Kanuni) | ≤ 100.00 mΩ/m (at 10 MHz) |
| Aina/kategoria ya ishara (Viwango na Kanuni) | Ethernet CAT5 (IEC 11801), 100 Mbps |
| Nguvu ya mvutano GRP (Viwango na Kanuni) | ≤ 80 N |
| Upinzani wa insulation (Viwango na Kanuni) | ≥ 500 MΩ*km |
| Ala ya nje, rangi (Viwango na Kanuni) | water blue RAL 5021 |
| Volti ya kawaida, kebo (Viwango na Kanuni) | ≤ 100 V (Peak value, not for high-power applications) |
| Unene wa ala ya nje (Viwango na Kanuni) | 1.2 mm |
| Ala ya nje, nyenzo (Viwango na Kanuni) | PUR |
| Kiini/Kiini cha volteji cha majaribio (Viwango na Kanuni) | 700 V (50 Hz, 1 min.) |
| Sehemu ya msalaba ya kondakta (Viwango na Kanuni) | 2x 2x 0.14 mm² |
| Kifuniko cha ngao ya macho (Viwango na Kanuni) | 70 % |
| Viwango/vipimo (Viwango na Kanuni) | Electrical requirements EN 50288-2-2 |
| Kiini/Ngao ya Volti ya Jaribio (Viwango na Kanuni) | 700 V (50 Hz, 1 min.) |
| Aina ya kebo (kifupisho) (Viwango na Kanuni) | 93E |
| Kipenyo cha kebo ya nje D (Viwango na Kanuni) | 6.4 mm ±0.2 mm |
| Insulation ya kondakta wa nyenzo (Viwango na Kanuni) | Foamed PE |
| Halijoto ya mazingira (uendeshaji) (Viwango na Kanuni) | -40 °C ... 80 °C (cable, fixed installation) |
| Mstari wa ishara ya muundo wa kondakta (Viwango na Kanuni) | 7x 0.16 mm |
| Halijoto ya kawaida (usakinishaji) (Viwango na Kanuni) | -20 °C ... 80 °C |
| Kipenyo cha msingi ikijumuisha insulation (Viwango na Kanuni) | 0.98 mm |
| Uwezo wa sasa wa kubeba kebo (Viwango na Kanuni) | 2 A (according to DIN VDE 0891-1) |
| Upunguzaji wa mazungumzo ya karibu (INAYOFUATA) (Viwango na Kanuni) | 65.3 dB (with 1 MHz) |
| Halijoto ya kawaida (uhifadhi/usafiri) (Viwango na Kanuni) | -20 °C ... 80 °C |
| Kiwango cha chini cha kuinama, usakinishaji usiobadilika (Viwango na Kanuni) | 4 x D |
| Kiwango cha chini cha kuinama, usakinishaji unaonyumbulika (Viwango na Kanuni) | 8 x D |
| Upunguzaji wa mazungumzo ya karibu na mwisho (PSNEXT) unaofupishwa kwa nguvu (Viwango na Kanuni) | 62.3 dB (with 1 MHz) |
Maelezo ya Bidhaa
Cable ring, CAT5 Ethernet, CAT5 Ethernet, 4-pole halogen-free, shielded, cable length: 500 m
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Cable cross sectionPUR ETHERNET 2x2 FLEX [93E]
