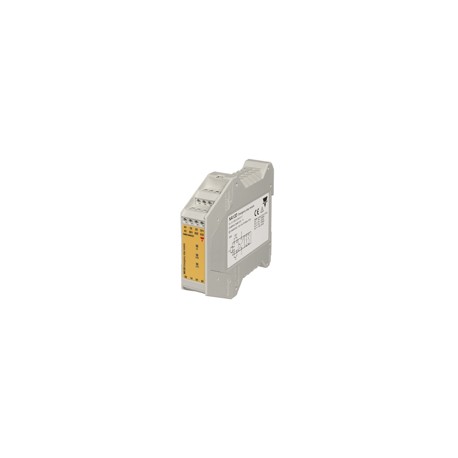

NA12D

Emergency stop and safety gate modulesNA12D• Safety Category 4 according to EN 954-1• Redundant circuit• Force guided relay contacts• Dual channel input• 2 NO safety outputs• Failure diagnosis by LEDs• Feedback circuit for external contactors monitoring• Automatic or manual startProduct DescriptionOrdering KeyNA12 DEmergencystop and safety gate module accordingto EN60204-1, EN 292-1 /-2, EN 418 and EN 1088. The safety mod- ule is in safety category 4 and is providedwith4 NO safetyoutputs. It can be used togeth- er with safety magnetic sen- sors SMS series, safety switches or emergency push buttons.Housing Application Controlled Devices Safety Outputs Safety CategoryElectrical SpecificationsPower supply 24 VAC -15/+10% 50-60Hz /24 VDC -15/+10%Power consumption< 5 VA / 5 W Safety outputs2 NO Auxiliary outputs--Contact ratingsResistive loads AC1 6 A @ 230 VAC DC12 6 A @ 24 VDCSmall inductive loads AC15 3 A @ 230 VAC DC13 2.5 A @ 24 VDCSafety outputcontact fuse protection 5 A fast or 4 A delayedInsulation voltageSupply to inputnoneSupply to output 4 kV 1.2/50µsInput to output4 kV 1.2/50µsPollution degree 2Overvoltage category IIITimeSpecificationsEnvironmental SpecificationsDelay on energisation ≤ 150 ms Delay on de-energisation≤ 30 ms Recovery time≥ 30 ms Channel simultaneity ∞Operating temperature-20°C ... + 65°CStorage temperature -25°C ... + 65°CMechanical SpecificationsProtection degree terminals IP 20Protection degree housing IP 40Max cross sectionof external conductors2.5 mm2 flexible wire2Housing materialPolyamid PA 6.62.5 mmrigid wireHousing type22.5 mm housing modelsMountingDIN railDimensions22.5 x 99 x 114 mmWeight 200 gSpecifications are subjected to change without notice (27.04.07) 1
