MSTBV 2,5/12-GF-5,08 EX

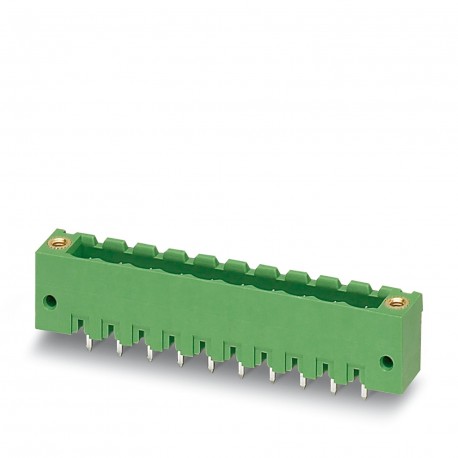

MSTBV 2,5/12-GF-5,08 EX 1796429 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3091 kwenye hisa
Vipimo Muhimu
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Aina:Standard
Lami:5.08 mm
Skurubu:Sheet metal screw ISO 1481-ST 2,2x6,5 C or ISO 7049-ST 2,2x6,5 C
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Aina | Standard |
| Lami | 5.08 mm |
| Skurubu | Sheet metal screw ISO 1481-ST 2,2x6,5 C or ISO 7049-ST 2,2x6,5 C |
| Upana [w] | 71.12 mm |
| Urefu [h] | 15.9 mm |
| Urefu [l] | 8.6 mm |
| Mpangilio wa pini | Linear pinning |
| Mstari wa bidhaa | COMBICON Connectors M |
| Aina ya bidhaa | PCB headers |
| Kipenyo cha shimo | 1.4 mm |
| Aina ya kupachika | Wave soldering |
| Utambulisho | 0344 II 2GD / Ex eb IIC Gb |
| Idadi ya safu mlalo | 1 |
| Vipimo vya pini | 1 x 1 mm |
| Familia ya bidhaa | MSTBV 2,5/..-GF-EX |
| Rangi (Nyumba) | green (6021) |
| Flange ya kupachika | Threaded flange |
| Marekebisho ya makala | 03 |
| Nyenzo ya mawasiliano | Cu alloy |
| Urefu uliowekwa | 12 mm |
| Cheti cha IECEx | IECEx KEM 10.0093U |
| Kukaza torque | 0.3 Nm |
| Aina ya kifungashio | packed in cardboard |
| Mkondo wa nominella IN | 12 A |
| Volti ya kawaida ya Umoja wa Mataifa | 176 V |
| Maelezo kuhusu uendeshaji | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PA |
| Idadi ya nafasi | 12 |
| Urefu wa pini ya solder [P] | 3.9 mm |
| Sifa za uso | Tin-plated |
| Kikundi cha nyenzo za kuhami joto | I |
| Pini za solder kwa kila uwezo | 1 |
| CTI kulingana na IEC 60112 | 600 |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -60 °C ... 110 °C |
| Cheti cha mtihani wa aina ya EU | KEMA 10ATEX0196 U |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Eneo la mguso wa uso wa chuma (safu ya juu) | Tin (3 - 5 µm Sn) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Sehemu ya msalaba ya mkondo wa sasa / kondakta iliyokadiriwa | 12 A/2.5 mm² |
| Eneo la kusugulia uso wa chuma (safu ya juu) | Tin (3 - 5 µm Sn) |
| Eneo la mguso wa uso wa chuma (safu ya kati) | Nickel (1.3 - 3 µm Ni) |
| Eneo la kusugulia uso wa chuma (safu ya kati) | Nickel (1.3 - 3 µm Ni) |
| Kielelezo cha kuwaka kwa waya wa mwanga GWFI kulingana na EN 60695-2-12 | 850 |
| Joto la kuwasha la waya yenye mwanga GWIT kulingana na EN 60695-2-13 | 775 |
| Halijoto kwa ajili ya jaribio la shinikizo la mpira kulingana na EN 60695-10-2 | 125 °C |
Maelezo ya Bidhaa
Printed circuit board base housing, nominal section: 2.5 mm², color: green, nominal current: 12 A, contact surface: Tin, contact type: Male, number of rows: 1, number of poles: 12, article family: MST
