MSTB 2,5/16-STFS59-5,08 AU SEL

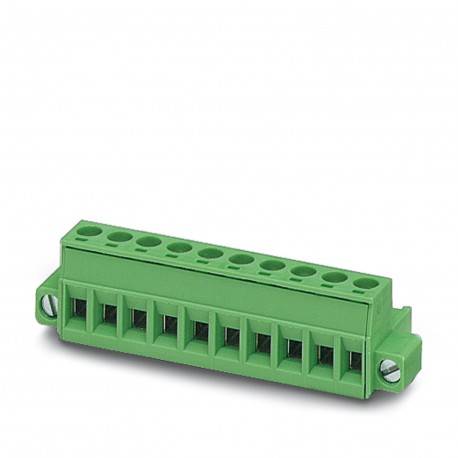

MSTB 2,5/16-STFS59-5,08 AU SEL 1786387 PHOENIX CONTACT Printed-circuit board connector
$0.00USD
3271 kwenye hisa
Vipimo Muhimu
Dokezo:WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201
Lami:5.08 mm
Upana [w]:91.29 mm
Urefu [h]:15 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Dokezo | WEEE/RoHS-compliant, free of whiskers according to IEC 60068-2-82/JEDEC JESD 201 |
| Lami | 5.08 mm |
| Upana [w] | 91.29 mm |
| Urefu [h] | 15 mm |
| Urefu [l] | 18.2 mm |
| Aina ya kufunga | Screw locking mechanism |
| Mstari wa bidhaa | COMBICON Connectors Special |
| Aina ya bidhaa | PCB connector |
| Idadi ya safu mlalo | 1 |
| Familia ya bidhaa | MSTB 2,5/..-STFS59 |
| Rangi (Nyumba) | green (6021) |
| Flange ya kupachika | Screw flange |
| Marekebisho ya makala | 04 |
| Nyenzo ya mawasiliano | Cu alloy |
| Mbinu ya muunganisho | Screw connection with tension sleeve |
| Kukaza torque | 0.3 Nm |
| Aina ya kifungashio | packed in cardboard |
| Maelezo kuhusu uendeshaji | In accordance with IEC 61984, COMBICON connectors have no switching power (COC). During designated use, they must not be plugged in or disconnected when carrying voltage or under load. |
| Mchoro wa vipimo | |
| Nyenzo za kuhami joto | PA |
| Idadi ya nafasi | 16 |
| Idadi ya uwezo | 16 |
| Kichwa cha skrubu cha umbo la gari | Slotted (L) |
| Idadi ya miunganisho | 16 |
| Sifa za uso | partially gold-plated |
| Kikundi cha nyenzo za kuhami joto | I |
| zana ya kukunja iliyopendekezwa | 1212034 CRIMPFOX 6 |
| CTI kulingana na IEC 60112 | 600 |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 100 °C (dependent on the derating curve) |
| Mwelekeo wa muunganisho wa kondakta/PCB | 0 ° |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Eneo la mguso wa uso wa chuma (safu ya juu) | Gold (0.8 - 1.4 µm Au) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 70 °C |
| Sehemu ya mwisho ya uso wa chuma (safu ya juu) | Tin (4 - 8 µm Sn) |
| Eneo la mguso wa uso wa chuma (safu ya kati) | Nickel (2 - 4 µm Ni) |
| Sehemu ya mwisho ya uso wa chuma (safu ya kati) | Nickel (2 - 4 µm Ni) |
| Kielelezo cha kuwaka kwa waya wa mwanga GWFI kulingana na EN 60695-2-12 | 850 |
| Joto la kuwasha la waya yenye mwanga GWIT kulingana na EN 60695-2-13 | 775 |
| Halijoto kwa ajili ya jaribio la shinikizo la mpira kulingana na EN 60695-10-2 | 125 °C |
Maelezo ya Bidhaa
Printed circuit board connector, nominal section: 2.5 mm², color: green, surface contacts: Gold, contact type: Connection female, Number of potentials: 16, Number of rows: 1, Number of poles per row:
