MSP-1000-15

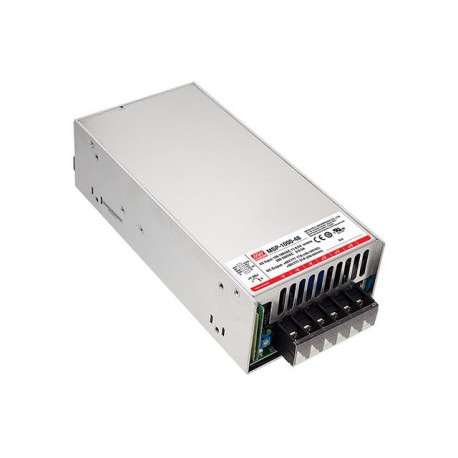

MSP-1000-15 MEANWELL AC-DC Single output Medical Enclosed power supply, Output 15VDC / 64A, MOOP, remote ON/..
$0.00USD
3513 kwenye hisa
Vipimo Muhimu
Feni:Yes
Jina:MSP-1000-15
Jimbo:New
Kengele:Output OK
Taarifa za Msambazaji
MEANWELL
Bidhaa: 6448
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Feni | Yes |
| Jina | MSP-1000-15 |
| Jimbo | New |
| Kengele | Output OK |
| Muundo | Box |
| Mfululizo | MSP-1000 |
| Idhini | EC, EAC, EN60601 3rd Edition, UL, UL60601 3rd Edition |
| Nguvu (W) | 960,00 |
| Fomu ndogo | Grid |
| Upana (mm) | 105.00 |
| Urefu (mm) | 63.50 |
| Kiwango cha juu cha kuingiza AC | 264,00 |
| Kiwango cha chini cha kuingiza AC | 90,00 |
| Maombi | Industrial, Medical, Telecommunications |
| Mtengenezaji | MEAN WELL |
| Aina ya bidhaa | Power supply AC/DC |
| Kutengwa (V) | 4.000,00 |
| Volti ya kutoa | 15,00 |
| Nguvu ya Kilele (W) | One thousand |
| Kiunganishi cha kuingiza data | Screw-Type |
| Masafa ya kuingiza | 50 Hz, 60 Hz |
| Muda Mrefu/Usuli | 218.00 |
| Maelezo Marefu | Medical power supply in box.Source certified for applications in medical, 2x MOPP (patient protection).Format in case of grid.Range of universal input90-264vac47-63Hz.Output voltage15vdc. Adjustable by potentiometer (14-17Vcc).Output intensity64A. Range of output current 0-64A according to demand load.Power:960W(1000W for 3s).Efficiency typical:92%.Factor corrector, power>0,95.Paralelizable up to 4 units with sharing of active power to provide a higher power.Source certified for applications in medical2xMOPP(the patient protection).Role of sensing in order to compensate the drop voltage on the output cables.Consumption at no load <0,75 W(remote shutdown).Remote on / off.Alarm signal output Ok (DC-Ok).Protection against short circuit, over load, over voltage and temperature.Working temperature: from-40ºCup+70 ° Cof ambient temperature. Consult the technical data sheet to see the curves of drift.Dimensions (Length x Width x Height) [mm]:218 x 105 x 63.5.5 years warranty.Manufacturer: MEAN WELLThe series MSP are the sources of most high-end format box MEAN WELL. Are designed for demanding applications. Support input voltages of 300Vca for 5 seconds and use components of the highest reliability as the electrolytic capacitors of 105ºC. Designed for medical applications2xMOPP(the patient protection).Have a correction factor power active. Sources with a high-efficiency multiple protections (short circuit, over load, over voltage and temperature). The protection against over loads is for current limiting, constant current, and can reduce stress by up to 50% of its nominal value and keeping the output intensity, this serves to start heavy loads such as motors or other inductive loads or capacitive.Possess a system on and off remote. Incorporate an alarm signal output OK (DC-OK). Have a consumption without load <0,75 W.We can parallelize up to 4 units to increase the power.Certificate CE, CAS, UL, ANSI/AAMI ES60601-1, IEC60601-1. |
| Kiunganishi cha kutoa | Screw-Type |
| Aina ya Kiingilio CA | Single-phase |
| Dhamana (Miaka) | 5,00 |
| Nchi ya Asili | Taiwan |
Maelezo ya Bidhaa
More details
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Medical power supply in box.
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
