MINI MCR-2-RPSS-I-2I

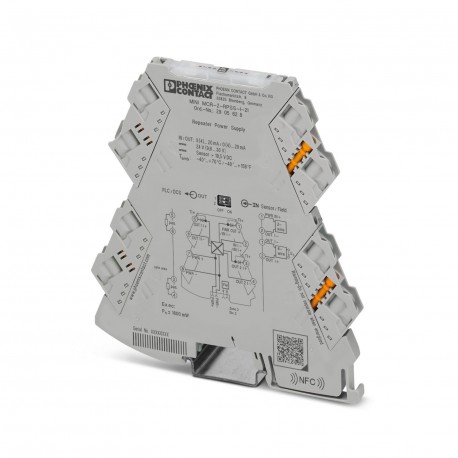

MINI MCR-2-RPSS-I-2I 2905628 PHOENIX CONTACT Repeater power supply
$0.00USD
4174 kwenye hisa
Vipimo Muhimu
:65 mA (For 24 V DC and in power supply duplicator mode)
EMC:A
Dokezo:When being exposed to interference, there may be minimal deviations.
Aina:Signal conditioner
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 65 mA (For 24 V DC and in power supply duplicator mode) | |
| EMC | A |
| Dokezo | When being exposed to interference, there may be minimal deviations. |
| Aina | Signal conditioner |
| Rangi | gray (RAL 7042) |
| Kina | 119.2 mm |
| Upana | 6.2 mm |
| Urefu | ≤ 2000 m |
| Ripple | < 20 mVPP(500 Ω) |
| Maoni | Safety measures must be taken to prevent electrostatic discharge. |
| Dokezo la EMC | EMC: class A product, see manufacturer's declaration in the download area |
| Unyevu | B |
| Ufungashaji | Required protection according to the Rules shall be provided upon installation on board |
| Mtetemo | A |
| Insulation | Reinforced insulation according to IEC/EN 61010-1 |
| Cheti | CE-compliant |
| Uteuzi | Electromagnetic RF field |
| Halijoto | B |
| Aina ya bidhaa | Repeater power supply |
| Uzi wa skrubu | M3 |
| Volti ya majaribio | 3 kV AC (50 Hz, 60 s) |
| Dokezo la mkutano | The DIN rail connector can be used for bridging the supply voltage. It can be snapped onto a 35 mm EN 60715 DIN rail. |
| Usanidi | DIP switches |
| Kitendakazi cha HART | Yes |
| Aina ya kupachika | DIN rail mounting |
| Utambulisho | II 3 G Ex ec ic IIC T4 Gc |
| Utoaji wa kelele | EN 61000-6-4 |
| Kinga ya kelele | EN 61000-6-2 |
| Familia ya bidhaa | MINI Analog Pro |
| Onyesho la hali | Green LED (supply voltage) |
| Idadi ya njia | 2 |
| Marekebisho ya makala | 02 |
| Nyenzo za makazi | PBT |
| Volti isiyo na mzigo | < 20 V |
| Idadi ya pembejeo | 1 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 10 mm |
| Mbinu ya muunganisho | Screw connection |
| Nafasi ya kupachika | any |
| Idadi ya matokeo | 2 |
| Matumizi ya nguvu | 1.6 W (at IOUT= 20 mA, 500 Ω load) |
| Kukaza torque | 0.5 Nm ... 0.6 Nm |
| Ishara ya sasa ya kuingiza data | 0 mA ... 20 mA (Signal duplicator mode) |
| Kiwango cha ulinzi | IP20 (not assessed by UL) |
| Kutengwa kwa umeme | 4-way isolation |
| Kategoria ya volteji nyingi | II |
| Kiwango cha voltage ya usambazaji | 9.6 V DC ... 30 V DC (The DIN rail connector (ME 6,2 TBUS-2 1,5/5-ST-3,81 GN, item no. 2869728) can be used to bridge the supply voltage. It can be snapped onto a 35 mm DIN rail in accordance with EN 60715) |
| Ishara ya sasa ya kutoa | 0 mA ... 20 mA (Signal duplicator mode) |
| Usakinishaji wa awali (EPL) | Gc |
| Viwango/kanuni | EN 61000-4-2 |
| Masafa ya kikomo (3 dB) | > 1 kHz |
| Volti ya usambazaji wa kawaida | 24 V DC |
| Jibu la hatua (10-90%) | < 400 µs |
| Maelezo ya ingizo | Sensor circuit |
| Volti ya insulation iliyokadiriwa | 300 Vrms |
| Ishara ya juu zaidi ya kutoa umeme wa sasa | 25 mA |
| Hitilafu ya juu zaidi ya uwasilishaji | 0.05 % (of final value) |
| Volti ya usambazaji wa kipitisha | > 19.5 V |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 12 (flexible) |
| Matumizi ya kawaida ya sasa | 40 mA (For 24 V DC and in signal duplicator mode) |
| Tabia ya upitishaji wa mawimbi | In = Out |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 1.5 mm² (with ferrule) |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Ingizo la sasa la upinzani wa pembejeo | 90 Ω (+1.6 V) |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 70 °C |
| Pato la sasa la mzigo/matokeo | ≤ 500 Ω (per channel) |
| Kiwango cha juu cha mgawo wa joto | 0.0075 %/K |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.14 mm² ... 2.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 5 % ... 95 % (non-condensing) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Ulinzi wa moto kwa magari ya reli (DIN EN 45545-2) R22 | HL 1 - HL 2 |
| Ulinzi wa moto kwa magari ya reli (DIN EN 45545-2) R23 | HL 1 - HL 2 |
| Ulinzi wa moto kwa magari ya reli (DIN EN 45545-2) R24 | HL 1 - HL 2 |
Maelezo ya Bidhaa
4-way power duplicator with plug-in connection technology. HART transparency, 0(4) mA input signal ... 20 mA, 0(4) mA output signals ... 20 mA. The device can be used in both signal operating and powe
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
