ME MAX 22,5 SF G 2-2 KMGY

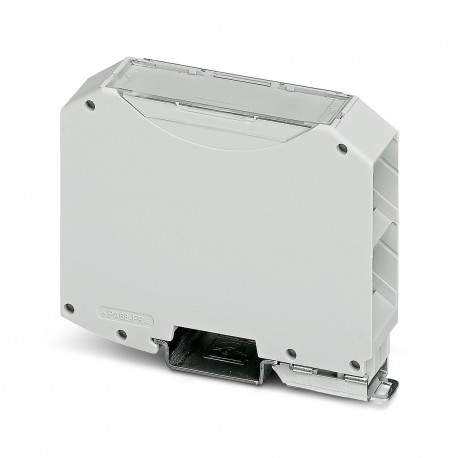

ME MAX 22,5 SF G 2-2 KMGY 2869362 PHOENIX CONTACT Electronic housing
$0.00USD
4764 kwenye hisa
Vipimo Muhimu
:16 (pitch: 5 mm)
Aina:Complete housing with metal foot catch, ultra-flat design
Kina:69.55 mm
Upana:22.6 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 16 (pitch: 5 mm) | |
| Aina | Complete housing with metal foot catch, ultra-flat design |
| Kina | 69.55 mm |
| Upana | 22.6 mm |
| Urefu | 85 mm |
| Upeo | 0.15 mm (10 Hz ... 58.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Umbo la mapigo | Half-sine |
| Kasi ya kufagia | 1 octave/min |
| Kuongeza kasi | 2g (58.1 Hz ... 150 Hz) |
| Aina ya makazi | DIN rail housing |
| Aina ya bidhaa | Complete housing |
| Dokezo la mkutano | Refer to the data sheet for the range in the download area. |
| Aina ya kupachika | DIN rail mounting |
| Unene wa PCB | 1.4 mm ... 1.8 mm |
| Vipimo | IEC 60068-2-6:2007-12 |
| Urefu wa kuanguka | 50 cm |
| Mfululizo wa makazi | ME-MAX |
| Idadi ya safu mlalo | 2 |
| Familia ya bidhaa | ME MAX 22,5.. |
| Mapendekezo | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Muda wa mshtuko | 11 ms |
| Rangi (Nyumba) | light gray (RAL 7035) |
| Maelekezo ya majaribio | X-, Y- and Z-axis |
| Marekebisho ya makala | 05 |
| Nyenzo za makazi | Polyamide |
| Kipengele cha kupunguza | 1 |
| Nafasi ya kupachika | vertical |
| Usambazaji wa nguvu | 4.9 W |
| Aina ya kifaa cha kupachika PCB | Latching |
| Aina ya kifungashio | packed in cardboard |
| Halijoto ya mazingira | 20 °C |
| Mchoro wa vipimo | |
| Aina ya kifungashio cha nje | Carton |
| Idadi ya vishikiliaji vya PCB | 1 |
| Nambari ya IP ya juu zaidi ya kufikia | IP20 |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | untreated |
| Idadi ya juu zaidi ya nafasi | 20 (pitch: 3.5 mm) |
| CTI kulingana na IEC 60112 | 600 |
| Nafasi za uingizaji hewa zipo | no |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Idadi ya mishtuko kwa kila mwelekeo | 3 |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 105 °C (depending on power dissipation) |
| Kina kutoka ukingo wa juu wa reli ya DIN | 62.9 mm |
| Unyevu wa jamaa (uhifadhi/usafiri) | 80 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 55 °C |
Maelezo ya Bidhaa
Rail housing, Full housing with metal pin, super-flat design, no vent slits, width: 22.6 mm, height: 85 mm, depth: 69.55 mm, color: light gray (7035), cross bridge: Rail bus connector (optional), numb
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
