ME 22,5 TBUS 1,5/5-ST-3,81BUGY

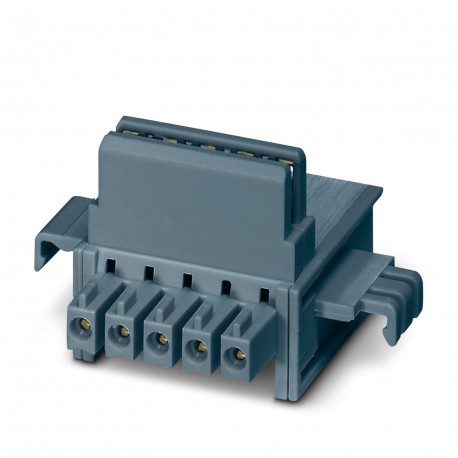

ME 22,5 TBUS 1,5/5-ST-3,81BUGY 2200413 PHOENIX CONTACT DIN rail bus connectors
$0.00USD
3739 kwenye hisa
Vipimo Muhimu
Lami:3.81 mm
Matokeo:Test passed
Rangi ():()
Upeo:0.35 mm (10 Hz ... 60.1 Hz)
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Lami | 3.81 mm |
| Matokeo | Test passed |
| Rangi () | () |
| Upeo | 0.35 mm (10 Hz ... 60.1 Hz) |
| Masafa | 10 - 150 - 10 Hz |
| Upana [w] | 29.2 mm |
| Urefu [h] | 36.5 mm |
| Urefu [l] | 20.45 mm |
| Umbo la mapigo | Semi-sinusoidal |
| Kasi ya kufagia | 1 octave/min |
| Halijoto | 850 °C |
| Kuongeza kasi | 5g (60.1 Hz ... 500 Hz) |
| Aina ya bidhaa | DIN rail connector |
| Aina ya kupachika | DIN rail mounting |
| Idadi ya mizunguko | 25 |
| Vipimo | IEC 60512-15-1:2008-05 |
| Familia ya bidhaa | TBUS5-22,5.. |
| Mapendekezo | Material of contact pads for bus connector, galvanic gold (hard gold) |
| Muda wa mshtuko | 11 ms |
| Mkazo wa joto | 100 °C/168 h |
| Rangi (Nyumba) | blue grey (7031) |
| Maelekezo ya majaribio | X-, Y- and Z-axis (pos. and neg.) |
| Nyenzo ya mawasiliano | Cu alloy |
| Mkazo unaosababisha kutu | 0.2 dm3SO2on 300 dm3/40 °C/1 cycle |
| Muda wa kuambukizwa | 30 s |
| Aina ya kifungashio | packed in cardboard |
| Upinzani wa mguso | 4.4 mΩ |
| Mkondo wa nominella IN | 8 A (parallel contacts) |
| Volti ya kawaida ya Umoja wa Mataifa | 125 V |
| Nyenzo za kuhami joto | PA |
| Idadi ya nafasi | 5 |
| Aina ya kifungashio cha nje | Carton |
| Volti iliyokadiriwa (II/2) | 320 V |
| Upinzani wa mguso R1 | 4.4 mΩ |
| Upinzani wa mguso R2 | 4.5 mΩ |
| Volti iliyokadiriwa (III/2) | 125 V |
| Muda wa jaribio kwa kila mhimili | 2.5 h |
| Sifa za uso | gold-plated |
| Kikundi cha nyenzo za kuhami joto | I |
| CTI kulingana na IEC 60112 | 600 |
| Volti ya kuongezeka iliyokadiriwa (II/2) | 2.5 kV |
| Idadi ya nafasi zilizojaribiwa | 5 |
| Mizunguko ya kuingiza/kutoa | 25 |
| Volti ya kuongezeka iliyokadiriwa (III/2) | 2.5 kV |
| Volti ya kuongezeka iliyokadiriwa (III/3) | 2.5 kV |
| Halijoto ya kawaida (mkusanyiko) | -5 °C ... 100 °C |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 105 °C (dependent on the derating curve) |
| Volti ya insulation iliyokadiriwa (II/2) | 320 V |
| Volti ya insulation iliyokadiriwa (III/2) | 125 V |
| umbali wa chini kabisa wa kuteleza (II/2) | 1.6 mm |
| Volti inayostahimili masafa ya nguvu | 1.39 kV |
| umbali wa chini kabisa (III/2) | 0.75 mm |
| umbali wa chini kabisa (III/3) | 1.9 mm |
| Punguza nguvu kwa kila pos. takriban. | 5 N |
| Nguvu ya kuingiza kwa kila nafasi ni takriban. | 6 N |
| Unyevu wa jamaa (uhifadhi/usafiri) | 30 % ... 70 % |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 |
| Msukumo hustahimili volteji katika usawa wa bahari | 2.95 kV |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 55 °C |
| Kishikilia mguso katika kiingilio Mahitaji >20 N | Test passed |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (II/2) | 1.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/2) | 1.5 mm |
| thamani ya chini kabisa ya kibali - uwanja usio na usawa (III/3) | 1.5 mm |
Maelezo ya Bidhaa
Rail bus connectors, color: bluish gray, rated current: 8 A (parallel contacts), rated voltage (III/2): 125 V, number of poles: 5, pitch: 3.81 mm, mounting: Rail mounting, locking: without, fixing typ
