MCR-S-20-100-UI-DCI

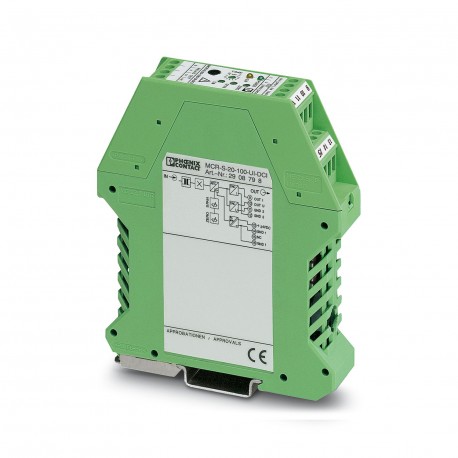

MCR-S-20-100-UI-DCI 2908798 PHOENIX CONTACT Current transducers
$0.00USD
3547 kwenye hisa
Vipimo Muhimu
:40 ms (DC)
Rangi:green (RAL 6021)
Kina:114.5 mm
Upana:22.5 mm
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| 40 ms (DC) | |
| Rangi | green (RAL 6021) |
| Kina | 114.5 mm |
| Upana | 22.5 mm |
| Urefu | < 2000 m |
| Kipenyo | 10.5 mm |
| Aina ya mkunjo | AC, DC or distorted currents |
| Cheti | CE-compliant |
| Jumla ya hitilafu | ≤ 1.5 % (Temperature range) |
| LSB: Ya Sasa | 1 µA (1 A) |
| Aina ya bidhaa | Current transducer |
| Uzi wa skrubu | M3 |
| Aina ya kupachika | DIN rail mounting |
| Utambulisho | Class I, Zone 2, AEx nA nC IIC T4, Ex nA nC IIC T4 Gc X |
| Utoaji wa kelele | EN 61000-6-4 |
| Kinga ya kelele | EN 61000-6-2 |
| Onyesho la hali | LED (green) |
| Nguvu ya kuongezeka | Depending on through connected conductor |
| Marekebisho ya makala | 02 |
| Nyenzo za makazi | Polyamide PA non-reinforced |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 8 mm |
| Mbinu ya muunganisho | Screw connection |
| Nafasi ya kupachika | any |
| Kizingiti cha uendeshaji | 1 % (of measuring range nominal value 100 A) |
| Uwezo wa kupakia kupita kiasi | Depending on through connected conductor |
| Kategoria ya vipimo | III |
| Mzunguko wa kinga | Surge protection; 33 V suppressor diode |
| Ingiza masafa ya sasa | 0 A AC/DC ... 100 A AC/DC (Permitted continuous overload: 120%) |
| Kiwango cha ulinzi | IP20 |
| Kategoria ya volteji nyingi | III |
| Kiwango cha voltage ya usambazaji | 20 V DC ... 30 V DC |
| Ishara ya sasa ya kutoa | 0 mA ... 20 mA |
| Maelekezo ya Volti ya Chini | Conformance with Low Voltage Directive |
| Viwango/kanuni | IEC 61010-2-030 |
| Ishara ya kutoa volteji | 0 V ... 10 V |
| Jibu la hatua (10-90%) | 330 ms (AC) |
| Matumizi ya juu zaidi ya sasa | < 40 mA (without load) |
| Volti ya insulation iliyokadiriwa | 300 V AC (to earth) |
| Inaweza kusanidiwa/kupangwa | Yes, unconfigured |
| Kiwango cha kupimia masafa | 15 Hz ... 400 Hz |
| Jaribio la pembejeo/matokeo ya volteji | 4 kV AC (50 Hz, 60 s) |
| Hitilafu ya juu zaidi ya uwasilishaji | < 0.5 % (of nominal range value under nominal conditions) |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 14 |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 2.5 mm² |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Halijoto ya mazingira (uendeshaji) | -20 °C ... 60 °C |
| Pato la sasa la mzigo/matokeo | < 500 Ω |
| Pato la volteji ya mzigo/matokeo | > 10 kΩ |
| Jaribu pembejeo/usambazaji wa umeme wa volteji | 4 kV AC (50 Hz, 60 s) |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 10 % ... 95 % (non-condensing) |
| Mgawo wa halijoto, wa kawaida | < 0.025 %/K |
| Jaribio la utoaji/usambazaji wa umeme wa volteji | 500 V AC (50 Hz, 60 s) |
| Kuweka masafa kwa ajili ya mkondo wa pembejeo wa juu zaidi | 0 A AC/DC ... 100 A AC/DC |
| Kuweka masafa kwa mkondo wa pembejeo wa chini | 0 A AC/DC ... 19 A AC/DC |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 85 °C |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | 2.2 W |
Maelezo ya Bidhaa
Programmable and configurable MCR current converter for the measurement of direct, alternating and distorted currents, input current 0...20 to 0...100 A, not configured
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
