MC-35-MULTI-65-PV-LG

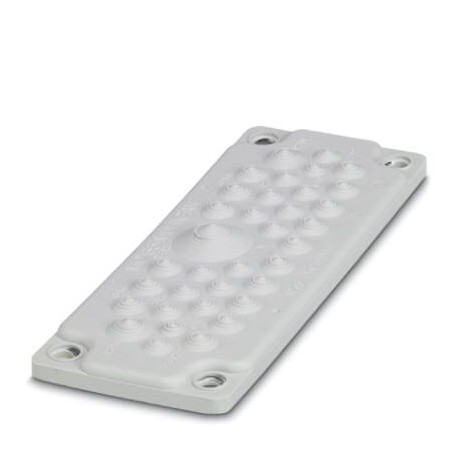

MC-35-MULTI-65-PV-LG 1422350 PHOENIX CONTACT Cable feed-through plates MC-35-MULTI-65-PV-LG 1422350
$0.00USD
4735 kwenye hisa
Vipimo Muhimu
GTIN:4055626301853
Ufunguo wa kuagiza:1422350
Ukurasa wa katalogi:Page 690 (C-2-2017)
Kitengo cha kufungasha:1
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| GTIN | 4055626301853 |
| Ufunguo wa kuagiza | 1422350 |
| Ukurasa wa katalogi | Page 690 (C-2-2017) |
| Kitengo cha kufungasha | 1 |
| ETIM 5.0 (eCl@ss) | EC001004 |
| ETIM 7.0 (eCl@ss) | EC001004 |
| Nambari ya ushuru maalum | 39269097 |
| (Hali ya mazingira) | The mounting screws included should be used for assembly.Assembly steps:1) Fix Multigates with the mounting screws provided (observe torque)2) Make a hole in the membrane (with a screwdriver) or cut off the tip of the cone3) Guide the cable through the opening (from the outside). Withdraw the cable approximately 20 mm (to improve strain relief). |
| (Data Muhimu za Kibiashara) | 1x 17 mm ... 32 mm |
| Kumbuka (Hali ya mazingira) | incl. mounting screws |
| Rangi (Hali ya mazingira) | light gray |
| Torque (Hali ya mazingira) | 1.5 Nm ... 2 Nm (Mounting screws) |
| Upana (Data Muhimu ya Biashara) | 92 mm |
| (Viwango na Kanuni) | No hazardous substances above threshold values |
| Urefu (Data Muhimu ya Kibiashara) | 222 mm |
| eCl@ss 6.0 (Uainishaji) | 27409200 |
| eCl@ss 7.0 (Uainishaji) | 27409208 |
| eCl@ss 8.0 (Uainishaji) | 27409208 |
| eCl@ss 9.0 (Uainishaji) | 27400569 |
| Nyenzo (Hali ya mazingira) | TPE-SEBS |
| Kiwango cha ulinzi (Vipimo) | IP65 (Minimum sheet thickness >= 2.5 mm) |
| RoHS ya China (Viwango na Kanuni) | Environmentally friendly use period: unlimited = EFUP-e |
| Idadi ya kondakta (Hali ya mazingira) | 35 |
| Halijoto ya mazingira (uendeshaji) (Vipimo) | -40 °C ... 100 °C |
| Kipenyo cha kebo ya nje (Data Muhimu ya Biashara) | 2x 6 mm ... 10 mm |
| Maagizo ya usakinishaji (Hali ya mazingira) | M8 mounting screw, torque: 1.5 - 2.0 Nm, SW5 Allen key |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Jumla) | V0 |
| Umbali wa kuchimba shimo, wima (Takwimu Muhimu za Kibiashara) | 193 mm |
| Umbali wa kuchimba shimo, mlalo (Data Muhimu ya Biashara) | 62 mm |
| Ukadiriaji wa kuwaka kulingana na UL 94 (Hali ya mazingira) | V0 |
Maelezo ya Bidhaa
Plates for cable passage, number of conductors: 35, outer diameter of the cable: 2x 6 mm ... 10 mm, 14x 7 mm... 12mm, 16x 10mm... 14mm, 2x 12mm... 18mm, 1x 17mm... 32 mm, material: galvanized steel sh
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Maelezo ya Kiufundi
Cable feed-through plates, no. of conductors: 35, length: 222 mm, width: 92 mm, height: 17.6 mm, external cable diameter: 2x 6 mm ... 10 mm , color: gray
