MACX MCR-EX-SL-2NAM-RO-SP

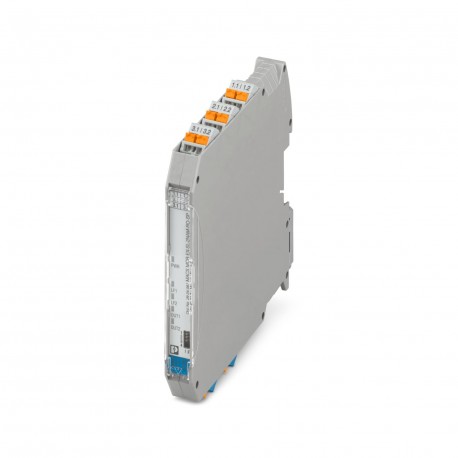

MACX MCR-EX-SL-2NAM-RO-SP 2924087 PHOENIX CONTACT Isolation amplifier
$0.00USD
3455 kwenye hisa
Vipimo Muhimu
:Floating switch contacts
EMC:B
Dokezo:and EN 61326
Aina:Ex i signal conditioners with SIL functional safety
Taarifa za Msambazaji
Bidhaa: 0
Kwa kawaida husafirisha ndani ya siku 2-3 za kazi
Ubora Umeheshimiwa
Usafirishaji wa haraka
Msaada wa Kiufundi
Speci ya Kiufundi
| Kipengele | Thamani |
|---|---|
| Floating switch contacts | |
| EMC | B |
| Dokezo | and EN 61326 |
| Aina | Ex i signal conditioners with SIL functional safety |
| Rangi | gray (RAL 7042) |
| Kina | 113.7 mm |
| Upana | 12.5 mm |
| Urefu | ≤ 2000 m (The technical data refers to altitudes ≤2000 m above mean sea level. For altitudes >2000 m above mean sea level, refer to the data sheet.) |
| Unyevu | B |
| Ufungashaji | Required protection according to the Rules shall be provided upon installation on board |
| Mtetemo | A |
| Insulation | Safe isolation |
| Maombi | Digital IN |
| Cheti | CE-compliant |
| Uteuzi | Electromagnetic RF field |
| Halijoto | B |
| Urefu wa masafa | > 2000 m ... 3000 m |
| Aina ya bidhaa | Isolating switch transf. |
| Volti ya majaribio | 2.5 kV AC (50 Hz, 60 s) |
| Usanidi | DIP switches |
| Aina ya kupachika | DIN rail mounting |
| Utambulisho | II (1) G [Ex ia Ga] IIC |
| Utoaji wa kelele | EN 61000-6-4 |
| Kinga ya kelele | EN 61000-6-2 |
| Familia ya bidhaa | MACX Analog |
| Onyesho la hali | Green LED (supply voltage) |
| Idadi ya njia | 2 |
| Marekebisho ya makala | 17 |
| Nyenzo ya mawasiliano | AgSnO2, hard gold-plated |
| Kina NS 35/7,5 | 114.5 mm (Snapped onto DIN rail NS 35/7,5 in accordance with EN 60715) |
| Nyenzo za makazi | PA 6.6-FR |
| Volti isiyo na mzigo | 8 V DC |
| Idadi ya pembejeo | 2 |
| Kiwango cha uchafuzi wa mazingira | 2 |
| Urefu wa kukatwa | 10 mm |
| Mbinu ya muunganisho | Push-in connection |
| Idadi ya matokeo | 2 |
| Matumizi ya nguvu | < 1 W |
| Usambazaji wa nguvu | < 1 W |
| Mchoro wa vipimo | |
| Saketi za Ex i (EPL) | Ga |
| Masafa ya kubadili | ≤ 20 Hz (without load) |
| Kiwango cha ulinzi | IP20 (not assessed by UL) |
| Kutengwa kwa umeme | 3-way isolation |
| Kigezo cha tathmini | A |
| Ugunduzi wa hitilafu ya mstari | < 0.05 mA ... 0.35 mA (Line break) |
| Nguvu ya juu zaidi ya kutoa Po | 25 mW |
| Kategoria ya volteji nyingi | III |
| Kiwango cha voltage ya usambazaji | 19.2 V DC ... 30 V DC |
| Kubadilisha mseto | < 0.2 mA |
| Usakinishaji wa awali (EPL) | Gc |
| Mkondo wa mzunguko mfupi | 8 mA |
| Viwango/kanuni | IEC/EN 60079-11 |
| Aina ya ubadilishaji wa mguso | 1 N/O contact per channel |
| Kiwango cha juu cha pato la sasa Io | 10 mA |
| Volti ya juu zaidi ya kutoa Uo | 9.6 V |
| Volti ya usambazaji wa kawaida | 24 V DC -20 % ... +25 % |
| Vyanzo vya ingizo vinavyopatikana | NAMUR proximity sensors (IEC/EN 60947-5-6) |
| Maelezo ya ingizo | Intrinsically safe |
| Matumizi ya juu zaidi ya sasa | 35 mA (24 V DC) |
| Volti ya insulation iliyokadiriwa | 375 VPP |
| Kiwango cha chini cha mzigo kinachopendekezwa | 5 V / 10 mA |
| Volti ya juu zaidi ya kubadili | 250 V AC (2 A) |
| Uwezo wa juu zaidi wa kubadili | 500 VA |
| Sehemu ya msalaba ya kondakta AWG | 24 ... 14 |
| Kiwango cha juu cha upenyezaji wa ndani Li | negligible |
| Uwezo wa juu zaidi wa ndani Ci | 11 nF |
| Sehemu ngumu ya kondakta | 0.2 mm² ... 2.5 mm² |
| Utangamano wa sumakuumeme | Conformance with EMC directive |
| Halijoto ya mazingira (uendeshaji) | -40 °C ... 60 °C (Any mounting position) |
| Sehemu ya msalaba ya kondakta inayonyumbulika | 0.2 mm² ... 2.5 mm² |
| Unyevu unaoruhusiwa (uendeshaji) | 10 % ... 95 % (non-condensing) |
| Volti ya juu inayohusiana na usalama Um | 253 V AC |
| Ukadiriaji wa kuwaka kulingana na UL 94 | V0 (Housing) |
| Kubadilisha kizingiti cha sasa cha ishara "0" | < 1.2 mA (blocking) |
| Halijoto ya kawaida (uhifadhi/usafiri) | -40 °C ... 80 °C |
| Ishara ya kubadilisha kizingiti "1", mkondo | > 2.1 mA (conductive) |
| Kutenganisha umeme kati ya pembejeo na matokeo | yes |
| Usambazaji wa nguvu wa kiwango cha juu kwa hali ya kawaida | < 1 W |
| Sehemu ya msalaba ya kondakta inayonyumbulika (kondakta 2 zenye sehemu sawa ya msalaba) | 0.25 mm² ... 0.34 mm² (TWIN ferrule without plastic sleeve) |
| IIC (mzunguko mchanganyiko): Upeo wa juu wa inductivity ya nje Lo/ Upeo wa juu wa uwezo wa nje Co | 100 mH / 500 nF, 50 mH / 570 nF, 5 mH / 590 nF, 1 mH / 590 nF, 10 µH / 590 nF |
| IIC (saketi rahisi): Upeo wa juu wa inductivity ya nje Lo/ Upeo wa juu wa uwezo wa nje Co | 300 mH / 3.6 µF |
| IIA/I (saketi rahisi): Upeo wa juu wa inductivity ya nje Lo/ Upeo wa juu wa uwezo wa nje Co | 1000 mH / 210 µF |
| IIB/IIIC (saketi rahisi): Upeo wa juu wa inductivity ya nje Lo/ Upeo wa juu wa uwezo wa nje Co | 1000 mH / 26 µF |
| I/IIB/IIA/IIIC (mzunguko mchanganyiko): Upeo wa juu wa inductivity ya nje Lo/ Upeo wa juu wa uwezo wa nje Co | 100 mH / 1 µF, 5 mH / 1 µF, 1 mH / 1 µF, 10 µH / 1 µF |
Maelezo ya Bidhaa
NAMUR Ex i separation amplifier, 2 channels. For the operation of proximity detectors and switches in the Ex zone. The signals are transmitted via relay outputs (open contacts) to the safe area. Fault
Vipengele Muhimu
- Ubora wa kiwango cha viwanda
- Inaendana na RoHS
- Imethibitishwa CE
- Dhamana ya mwaka 1
Nyaraka za Bidhaa
Jalada la data
Speci za kiufundi na data ya utendaji
Mwongozo wa Mtumiaji
Mwongozo wa usakinishaji na uendeshaji
